Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
123
2. Remove the drive mounting bars ③ together with the blanking plate ② from the front
from the mounting location.

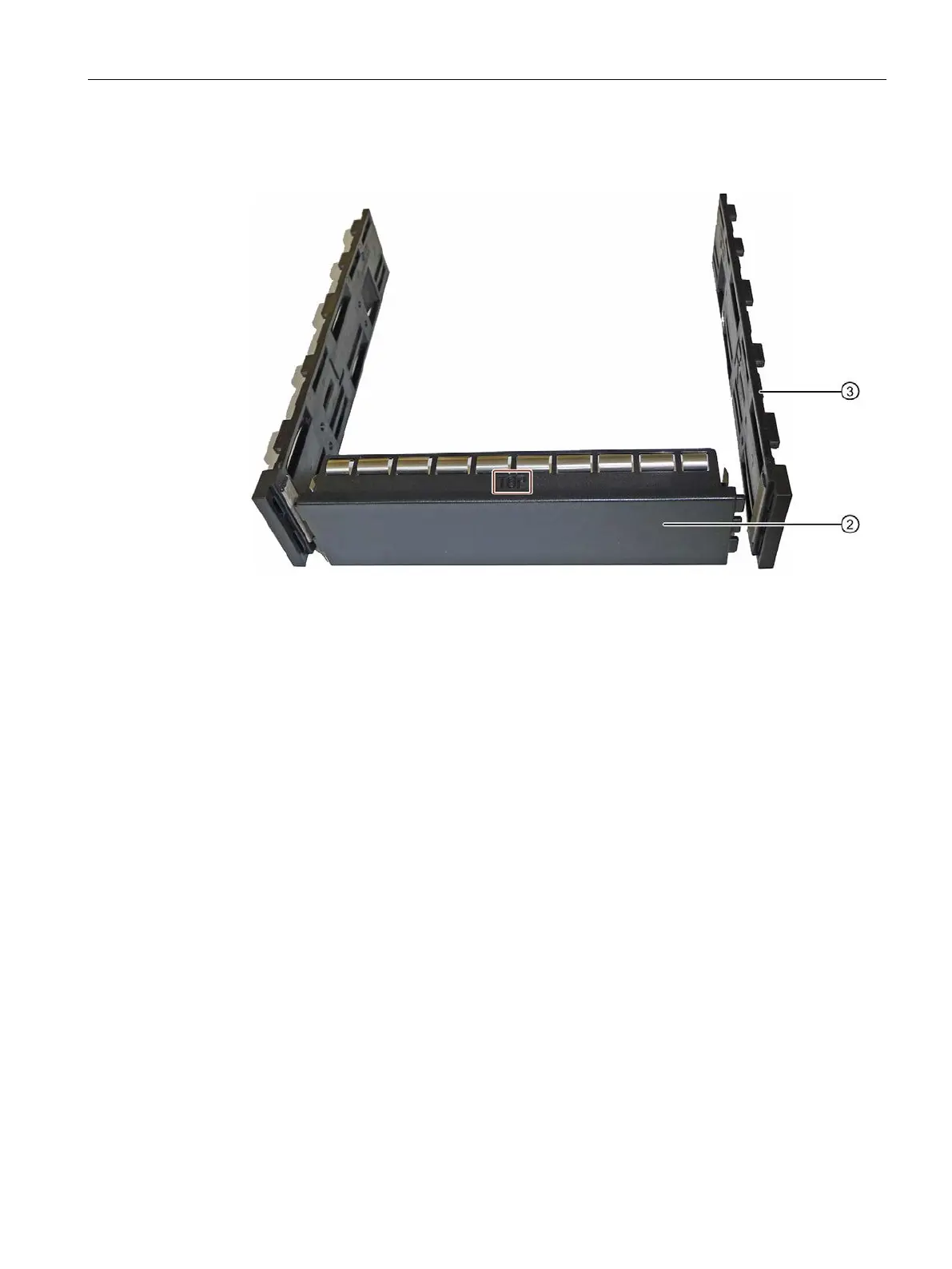

3. Remove the left and right drive mounting bars
③ and the blanking plate ②.
:
The drive mounting bars are labeled "L" and "R" and have to be installed in the same way
again on the "left" and "right".
4. Screw the right and left drive mounting bars to the new drive.
Take care not to touch the contacts of the drive when you do this. The blanking plate is
no longer required.
5. Push the new drive with the drive mounting bars in the guide rail on the left and right into
the drive cage evenly at the back without tilting until it snaps into place.
