Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
125

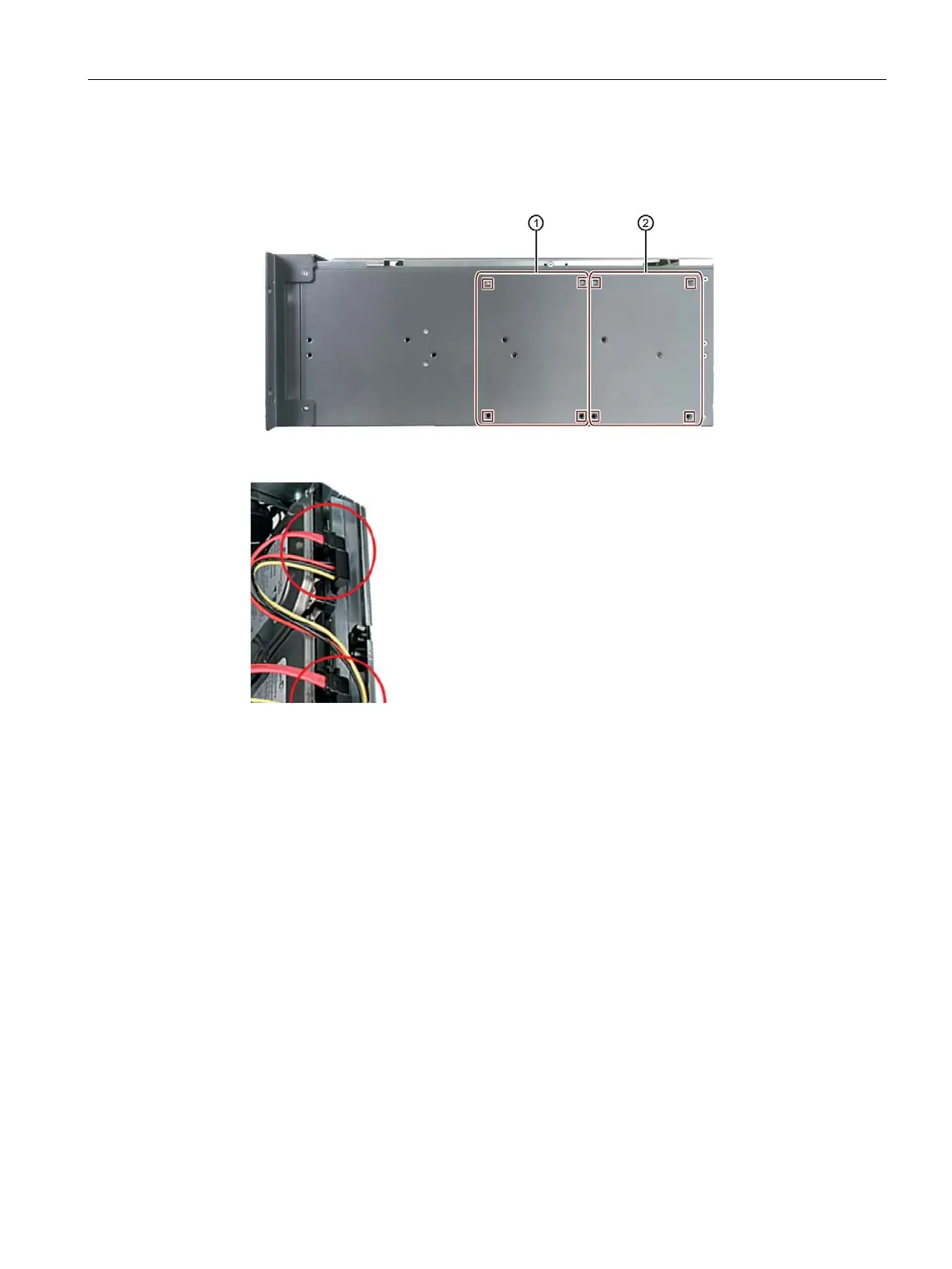

2. Hold the drive support base at the position ① or at the position ② inside on the side
panel of the enclosure.
Then tighten the drive support base from the outside at the marked points.
The SATA connectors are always located at the top
③.
3. Connect the data cables to the desired connectors on the motherboard and on the drive
(position
③).
4. Connect the power supply.
5. Close the device.
