Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
127

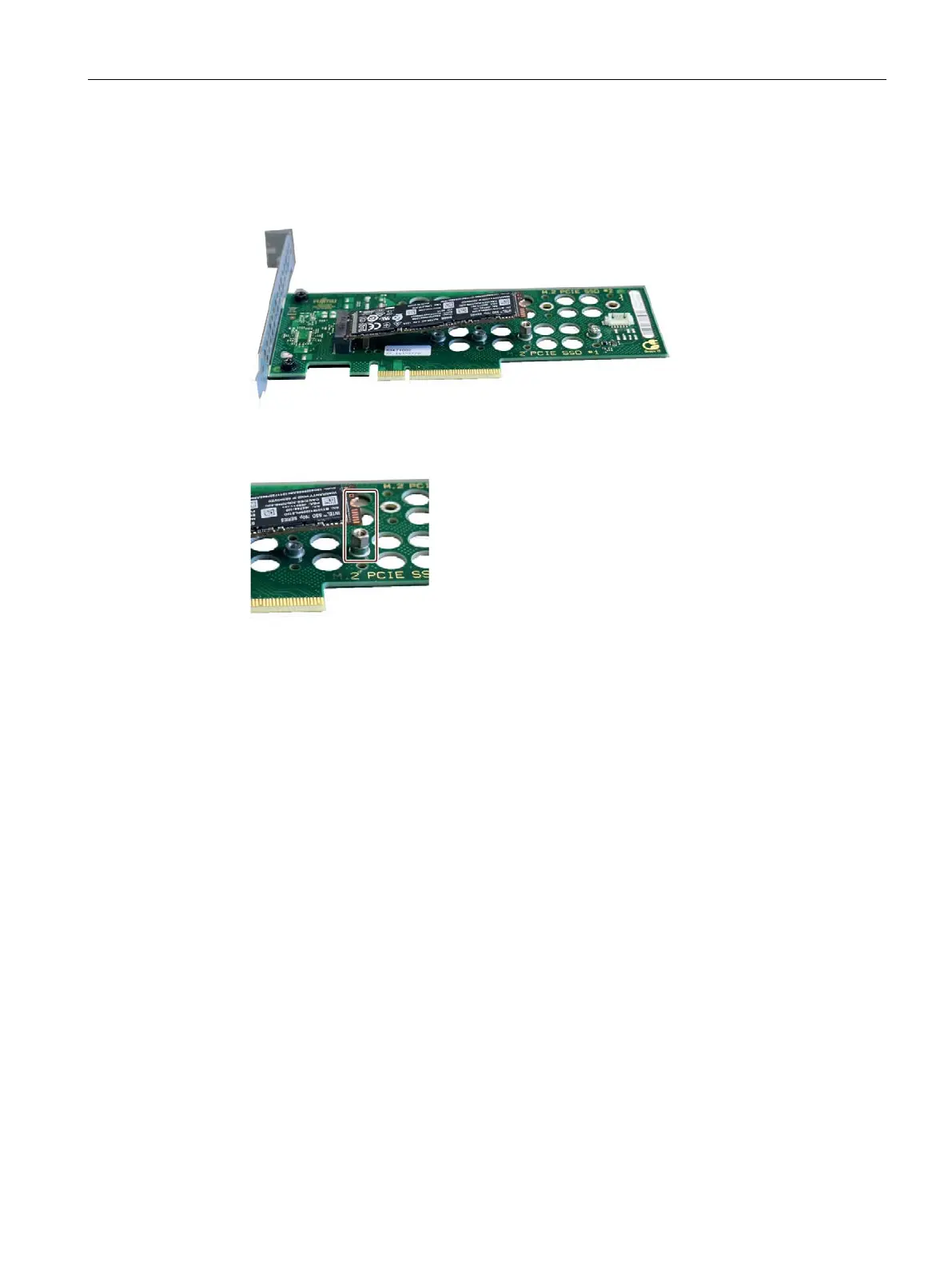

1. Plug the M.2 NVMe SSD at a slight angle from above (see figure) into the direct plug
socket of the PCIe adapter card provided for it.
2. Carefully press down the M.2 NVMe SSD and secure it on the PCIe adapter card with the
screw.
3. Install the PCIe adapter card in the corresponding slot on the bus board.
– Read the information under "Slots for expansion cards on the bus board (Page 182)"
and "Installing expansion cards (Page 91)".
