7.3 Removing and installing hardware
SIMATIC IPC847E
136 Operating Instructions, 10/2018, A5E43920357-AA

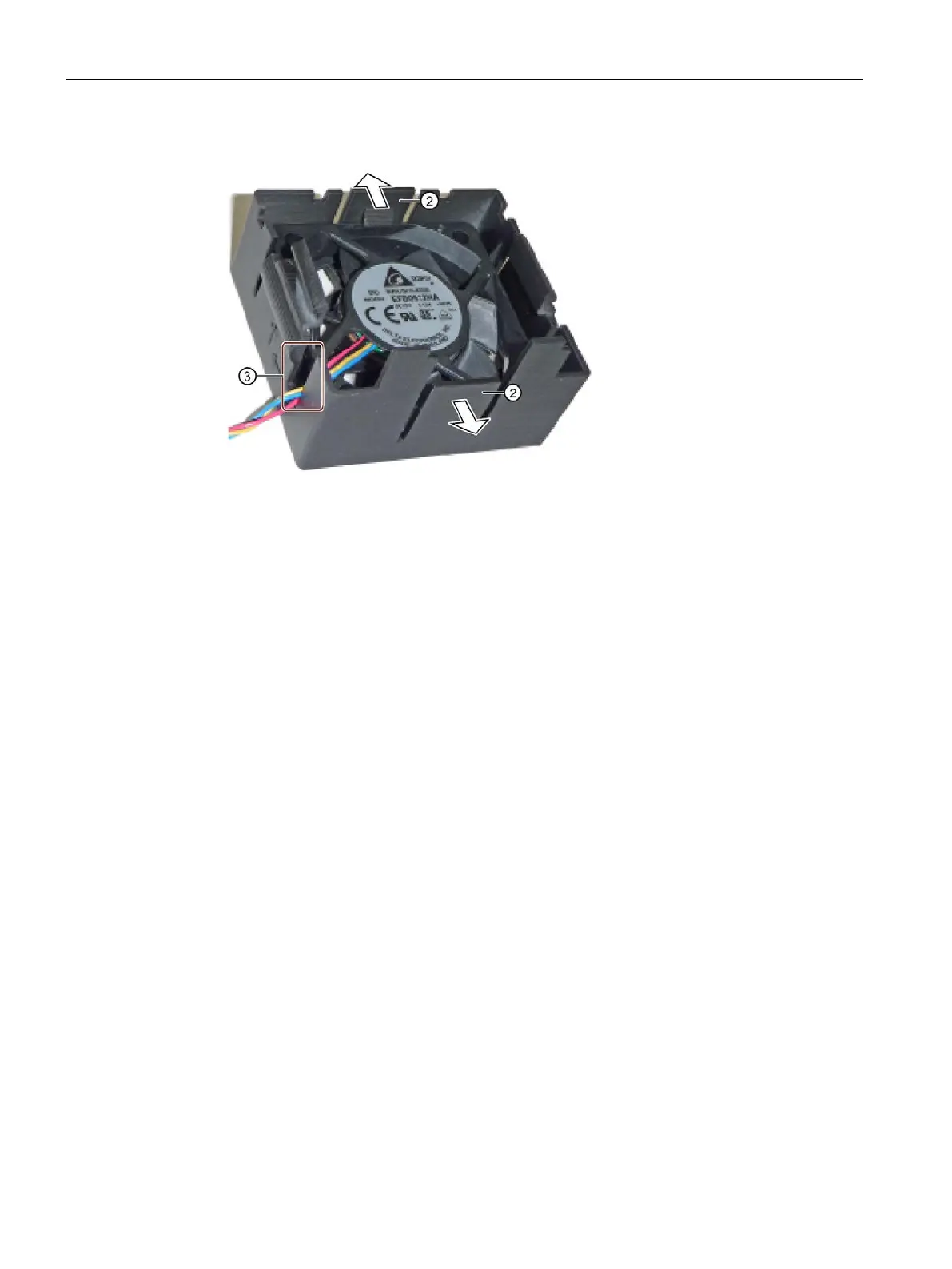

3. Put down the fan support as shown.
4. Bend the locking latches
② of the fan support slightly outwards and remove the fan from
the fan support.
5. Place the new fan in the fan support as shown.
6. Guide the fan cable through the cable outlet
③.
7. Finally, snap the new fan completely into place in the locking latches
②.
8. Mount the fan support on the drive cage (see above).
9. Connect the fan cable to the motherboard.
Maintenance intervals (Page 129)
