Hardware description
A.3 Bus board
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
183

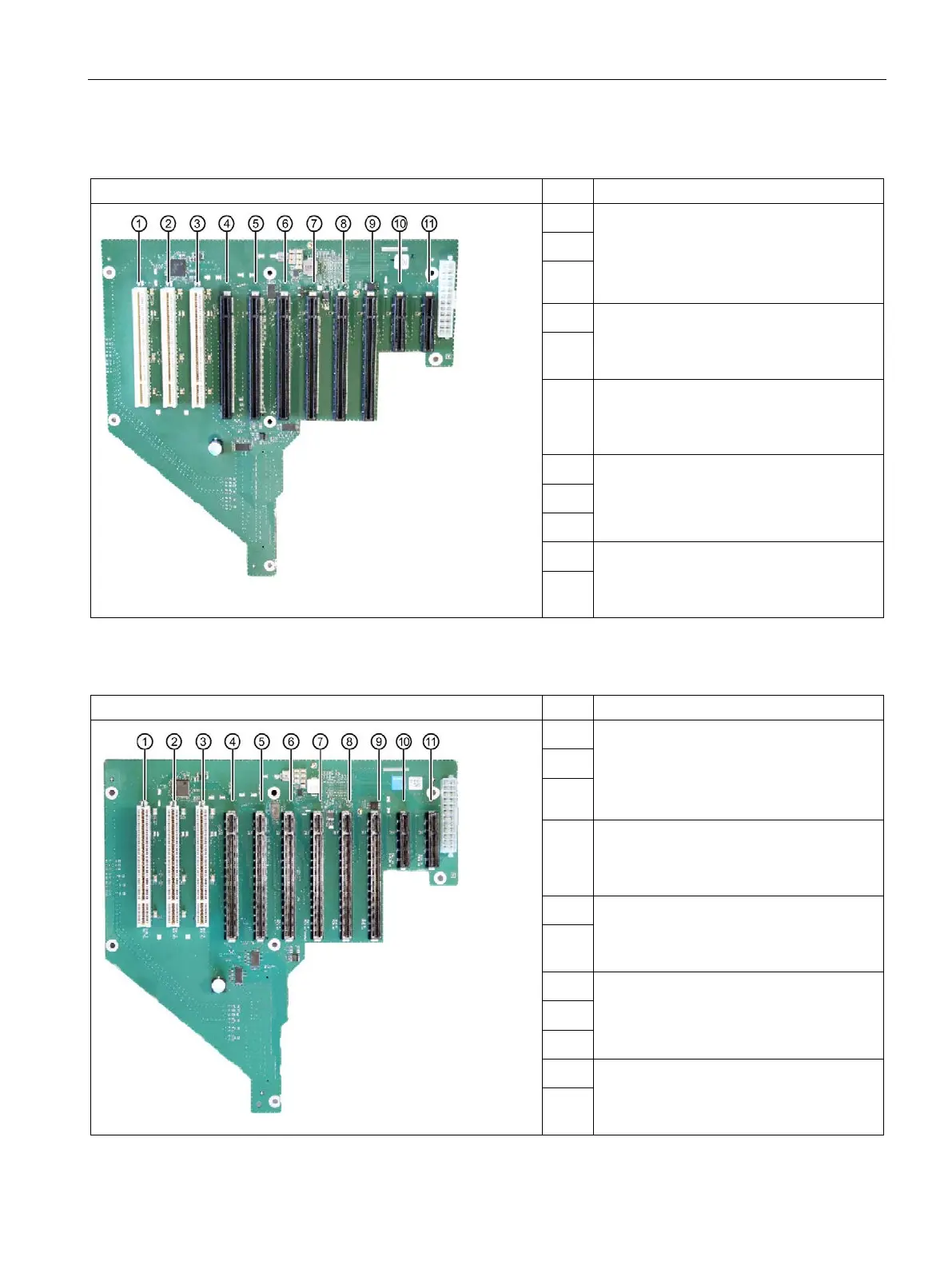

Variant 2: 11 slots
Bus board
Slot
Specification
PCI
Rev. 2.3
PCI bus primary
Master-capable
PCIe x16
Gen. 3
Active lanes: 4
PCIe x16
Gen. 3
Active lanes: 8
PCIe x16
Gen. 3
Active lanes: 4
PCIe x4
Gen. 3
Active lanes: 4
Variant 3: 11 slots
Bus board
Slot
Specification
PCI
Rev. 2.3
PCI bus primary
Master-capable
PCIe x16
Gen. 3
Active lanes: 16
PCIe x16
Gen. 3
Active lanes: 1
PCIe x16
Gen. 3
Active lanes: 4
PCIe x4
Gen. 3
Active lanes: 4
