Operating the device
5.4 Operating RAID systems
SIMATIC IPC847E
76 Operating Instructions, 10/2018, A5E43920357-AA

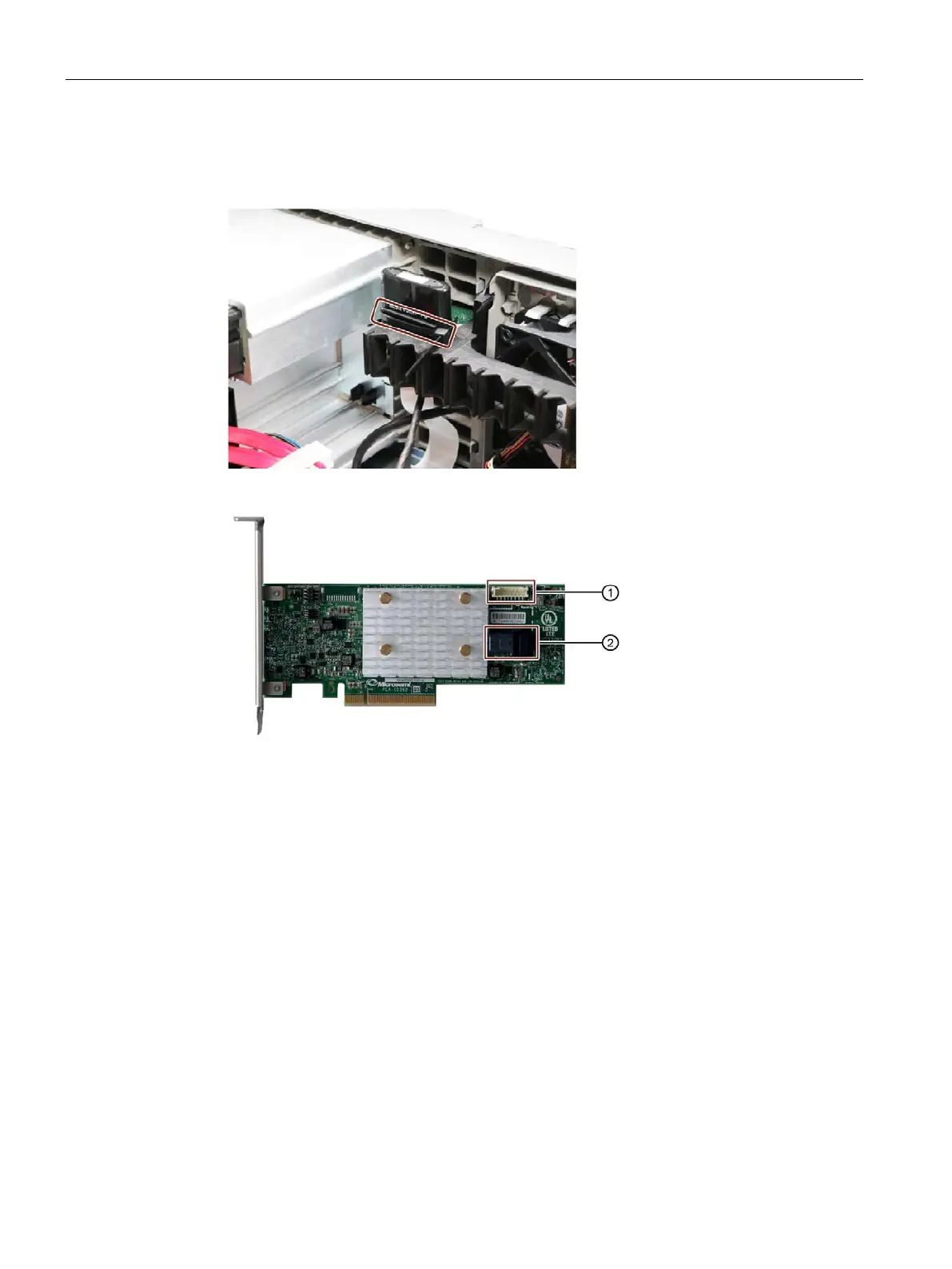

5. Insert the capacitor block into the appropriate holder on the guide rail for long expansion
cards and fasten it with a cable tie as shown (see also "Internal construction of the device
(Page 29)").
6. Insert the connector of the capacitor block cable at the marked position
①.
7. Insert the adapter cable at the marked position
②.
Make sure that the connector latch audibly engages.
8. Close the device.
9. Configure the installed hardware RAID adapter card.
