SIMATIC TD 200 Operator Interface
C79000-G7076-C272-01
Embedded Data
Cancel
OK
Delete
None
Word
Double Word
Signed
Unsigned
0
Digits to the right of the
decimal
User must acknowledge message
Is the user allowed to edit this data?
Data Format: Display Format:

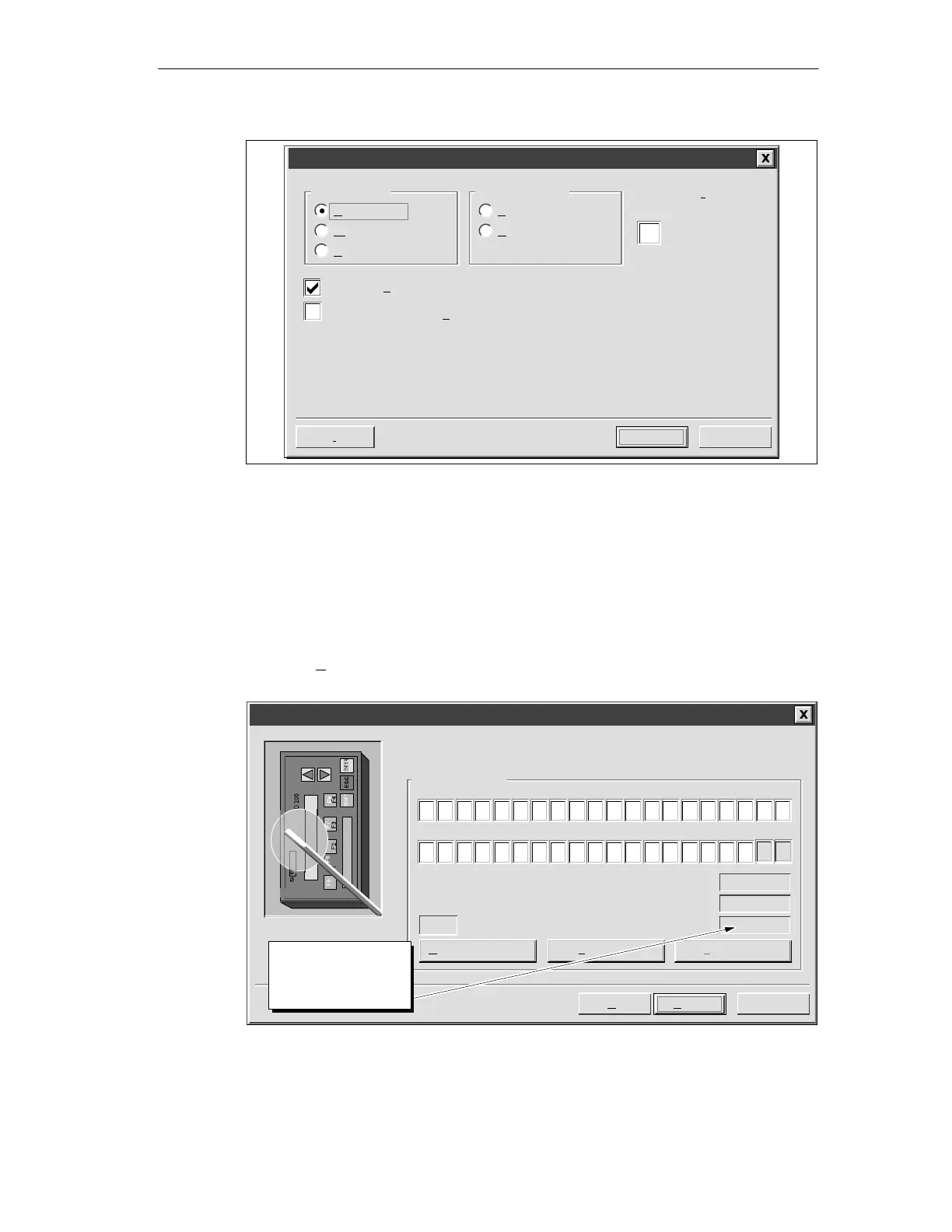

Figure 2-15 Embedded Data: Requiring Acknowledgement of Message
Now that you have set the format to require acknowledgement of the message, the
Acknowledgement notification bit field displays the address location of the
acknowledge-notification bit, as shown in Figure 2-16. This location can be used in
the user program to take an action when the user acknowledges the message on
the TD 200. The TD 200 sets this bit to 1 when the message is acknowledged. The
user program is responsible for resetting the acknowledge-notification bit to 0 if it is
used within the program.
Click the “Finish” button to exit the TD 200 Configuration Wizard.
TD 200 Configuration Wizard
Cancel
Finish
You have asked to configure 3 message(s). Define your message by
placing your highest priority message first.
< Prev
Embedded Data...
INS
<Previous Message Next Message >
VB120
V14.6
Message beginning address:
Message enabled bit:
10 15 20
ACKNOWLEDGE MESSAGE
V158.1Acknowledgement notification bit:
30 35 40
BY PRESS ING ENTER
25
Note: The address of
the acknowledge-
notification bit is
displayed.
TD200
Message 3 of 3
5
Figure 2-16 Wizard: Message Requires Acknowledgement
Confi
g
urin
g
the TD 200
