Siemens SIMOTION ADI4 - Shutdown Ramp; Shutdown Delay

Parameter assignment
3.5 Function parameters
SIMOTION ADI4 - Analog Drive Interface for 4 Axes
Manual, 05/2009, 6FC5 297-0BA01-0BP6
47
3.5.3 Shutdown ramp
Shutdown ramp
The "Shutdown ramp" parameter specifies a function that is linear with respect to time. If an
error is detected in the ADI4, all ADI4 drives are slowed down to Setpoint "0" in accordance
with this function.
A parameter value of "0" brings the drives to an immediate stop (braking at the current limit).
● Unit: [ms]



W>PV@

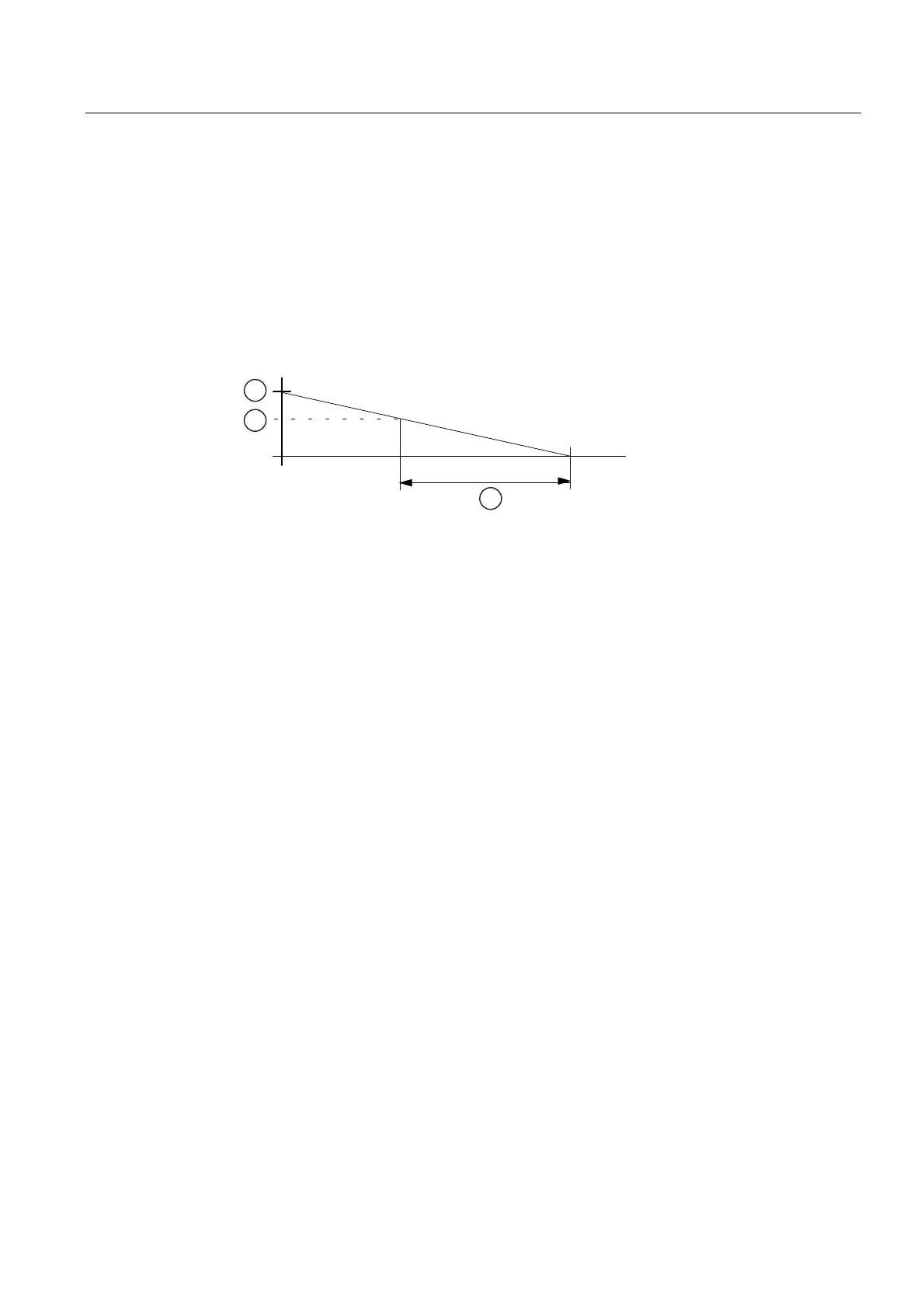

Figure 3-4 Parameter: Shutdown ramp
① Maximum setpoint
② Current setpoint
③ Parameter value: Shutdown ramp
3.5.4 Shutdown delay
Shutdown delay parameter
The "Shutdown delay" parameter can be used to specify a time after which all ADI4 drives
are slowed down to the setpoint "0" following a temperature alarm in the ADI4.
After the "Shutdown delay" has elapsed, the "Shutdown ramp" is taken into account.
● Unit: [s]
