SINUMERIK 802D sl Operating and Service Training Manual Page 7
C74
C74
Section 4
Setting the zero offset

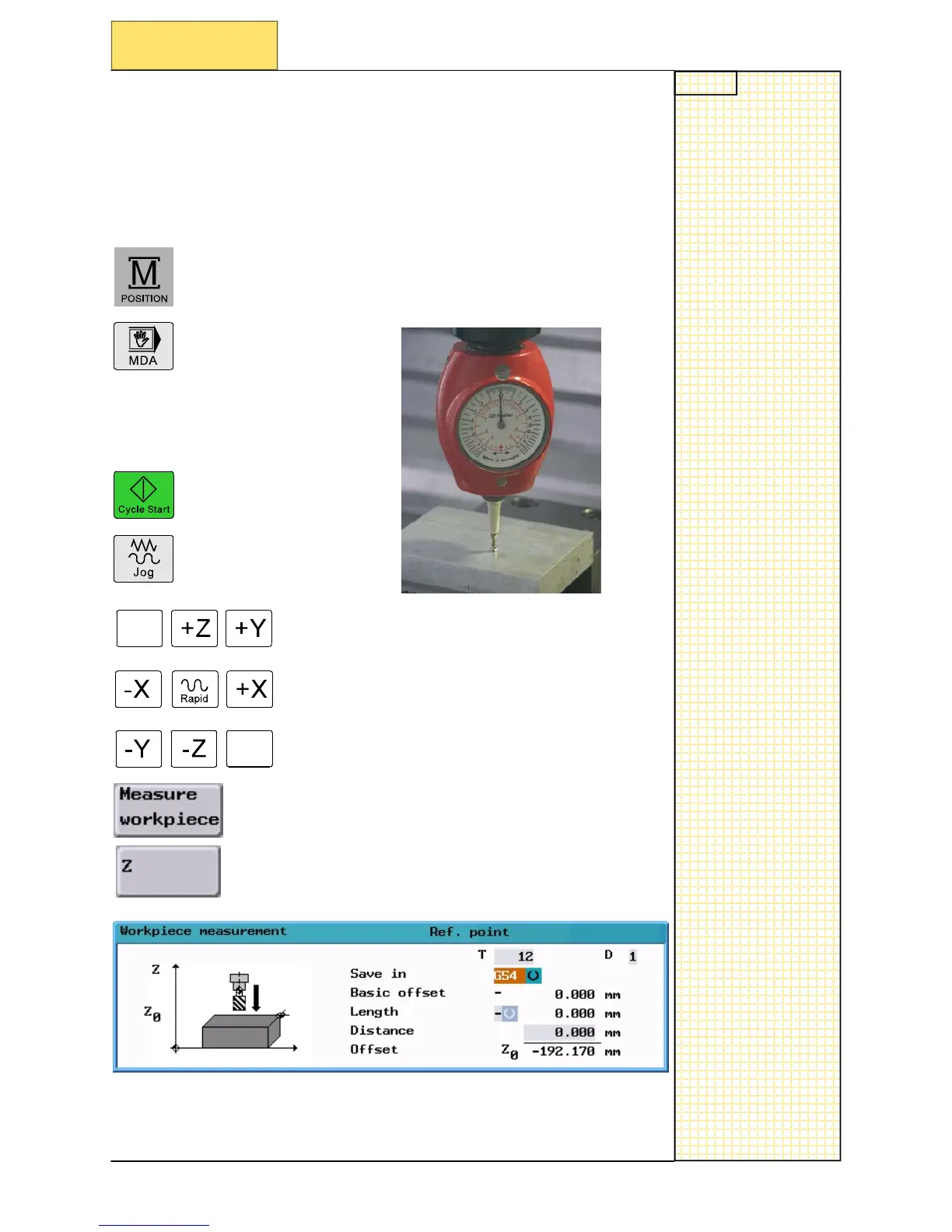

On a milling machine a value in all three geometry axis has to be set.
The offset is set using th
e scratch function in the control, to use scratch the
spindle sh
ould first be started in MDA.
T1 ; manual 3D-Dial indicator
M6
M30
Drive to the surface of the work-
piece until in
dication.
Example to determine the
Z zero offset
:
The height of a slip guage can be put in the distance field.
4.1 Setting the zero offset
To Next Page
