SINUMERIK 802D sl Operating and Service Training Manual Page 4
C8
C8
Section 3
Hardware interface
3.1 General information regarding the Machine Control Panel

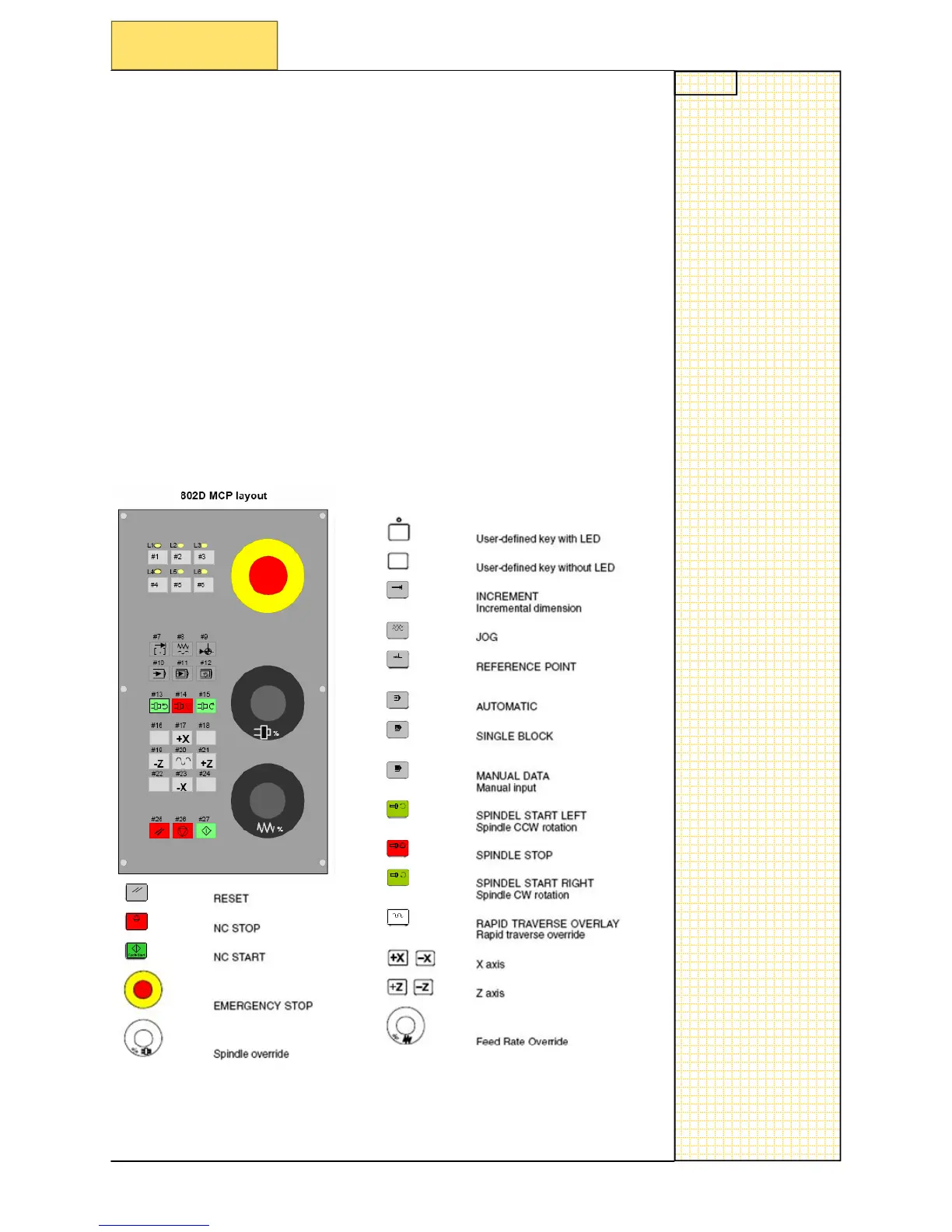

• The following diagram shows the layout of the 802D machine control panel.
• The layout is
independent of the MCP types.
• The CNC fun
ctionality is independent of the MCP types.
• The so
urce of the inputs of the MCP differs between MCP types.
• The destination of the customer LED's differs between MCP types.
For ea
se of signal (pushbutton) testing each key and lamp is assigned in the dia-
gram a mn
emonic address:
Example:
NC START key is given mnemonic
#27
+X key is given mnemonic
#17
Etc.
This mn
emonic is used to trace the
sig
nal flow of the keys and lamps.
Reset
Cycle Stop
[VAR]
Jog
Ref Point
Auto
Single Block
MDA
Spindle Left
Spindle Stop
Spindle Right
Rapid
