6.4 Graphic representation of contour
Function

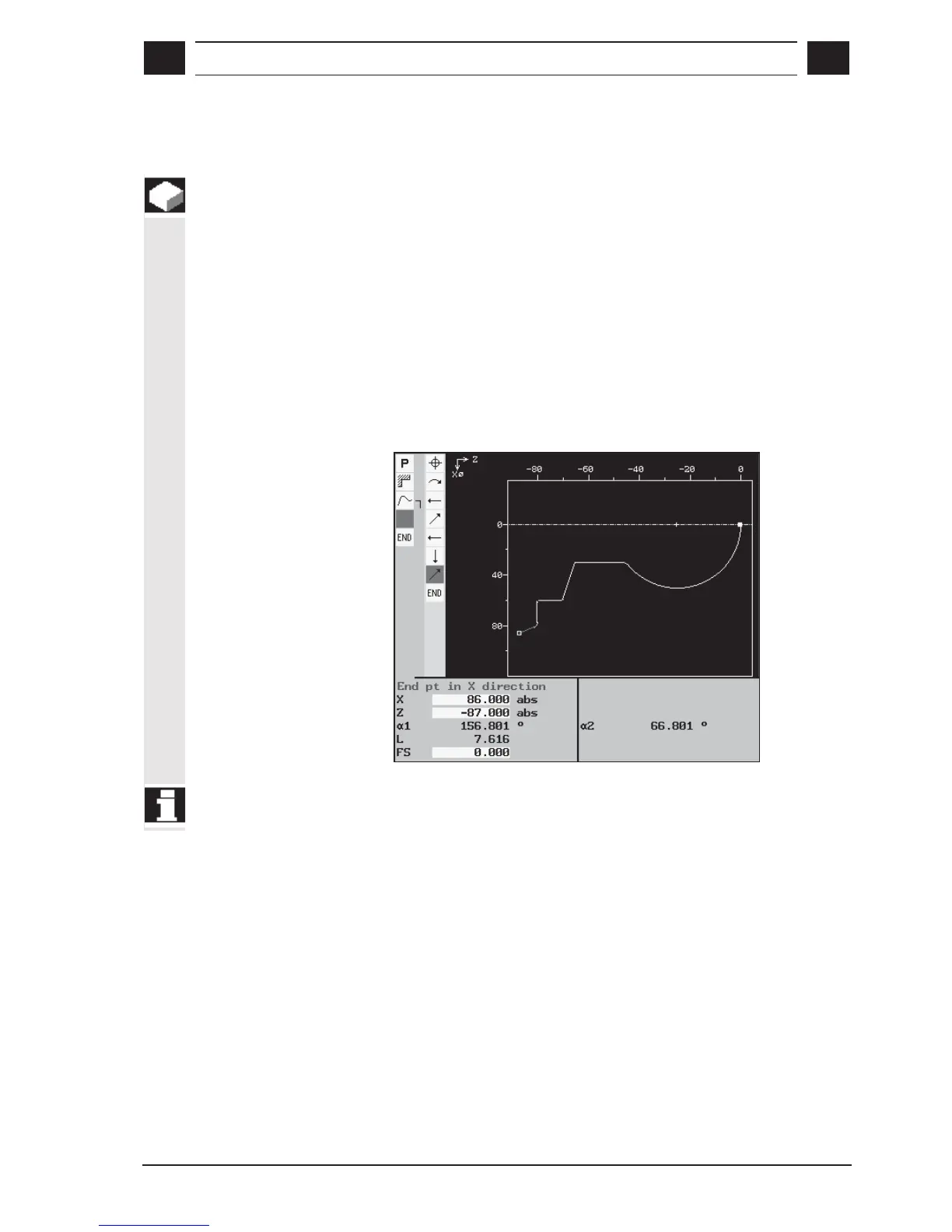

In parallel to the sequential parameterization of the contour elements,
each step in the creation of the contour is displayed graphically in the
graphic window.
A selected element is displayed in the graphic window highlighted in
red.
The coordinate system scale is adapted to any in the overall contour.
The symmetrizing axis of the contour is represented by a dot-and-
dash line.
The position of the coordinate system is shown in the graphic window.
