2-18 SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition
2.1 Operator panels
Alternately, you can use one of the following operator panels for the
PCUs:
OP 010
OP 010C
OP 010S with CNC full keyboard OP 032S
Operator panel OP 010
3
4
2
1
6
.
5
2

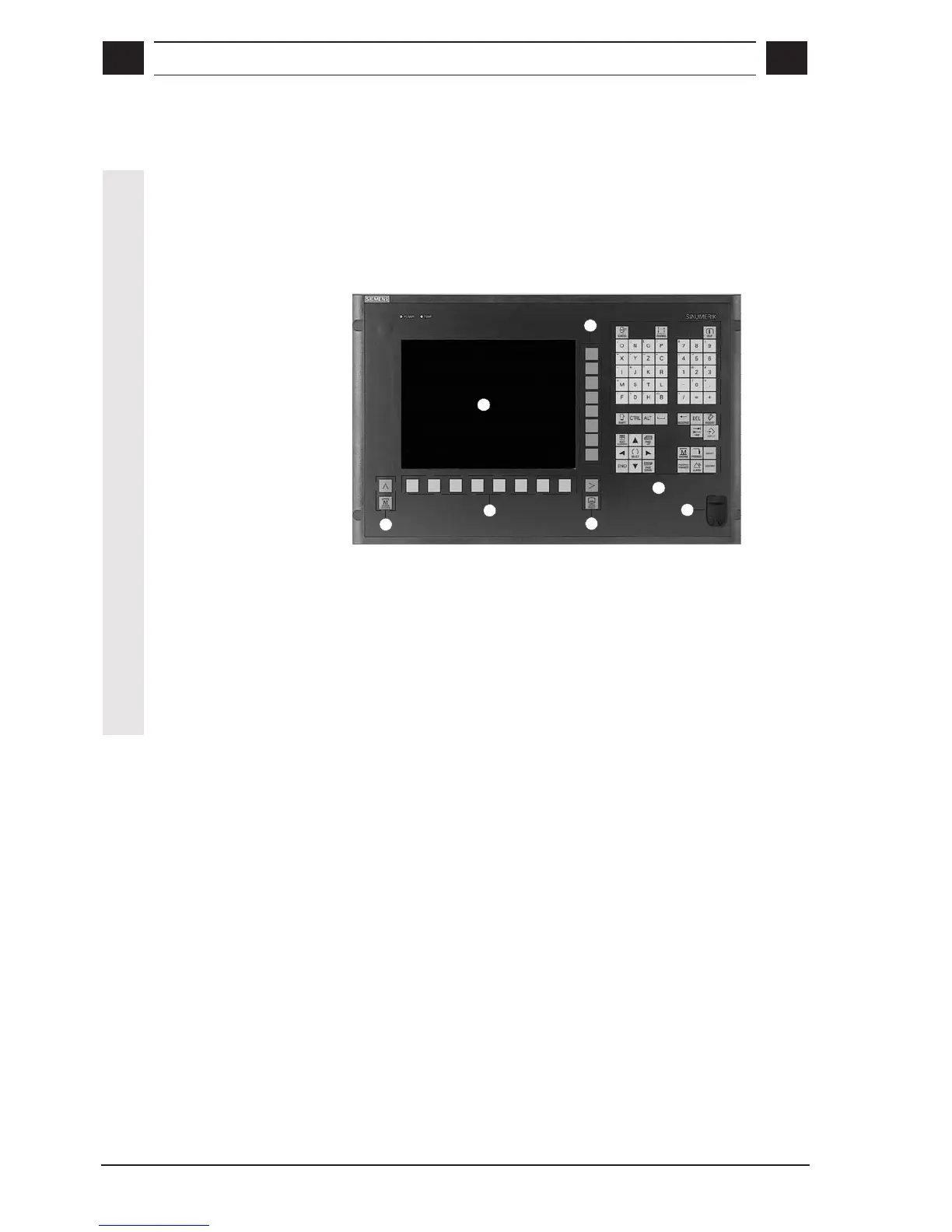

Operator panel OP 010
1 Monitor
2 Monitor keys
3 Horizontal soft key menu
4 Vertical soft key menu
5 Alphanumeric pad
Correction/cursor pad with control keys and input key
6 USB interface

Siemens SINUMERIK 810D Specifications

General

Brand	Siemens
Model	SINUMERIK 810D
Category	Control Unit
Language	English
