08.02 Examples
12.3 Exam
p
le 3: External machinin
g
with thread undercuts and
g
rooves
12
© Siemens AG, 2002. All rights reserved
SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition 12-195
Result:

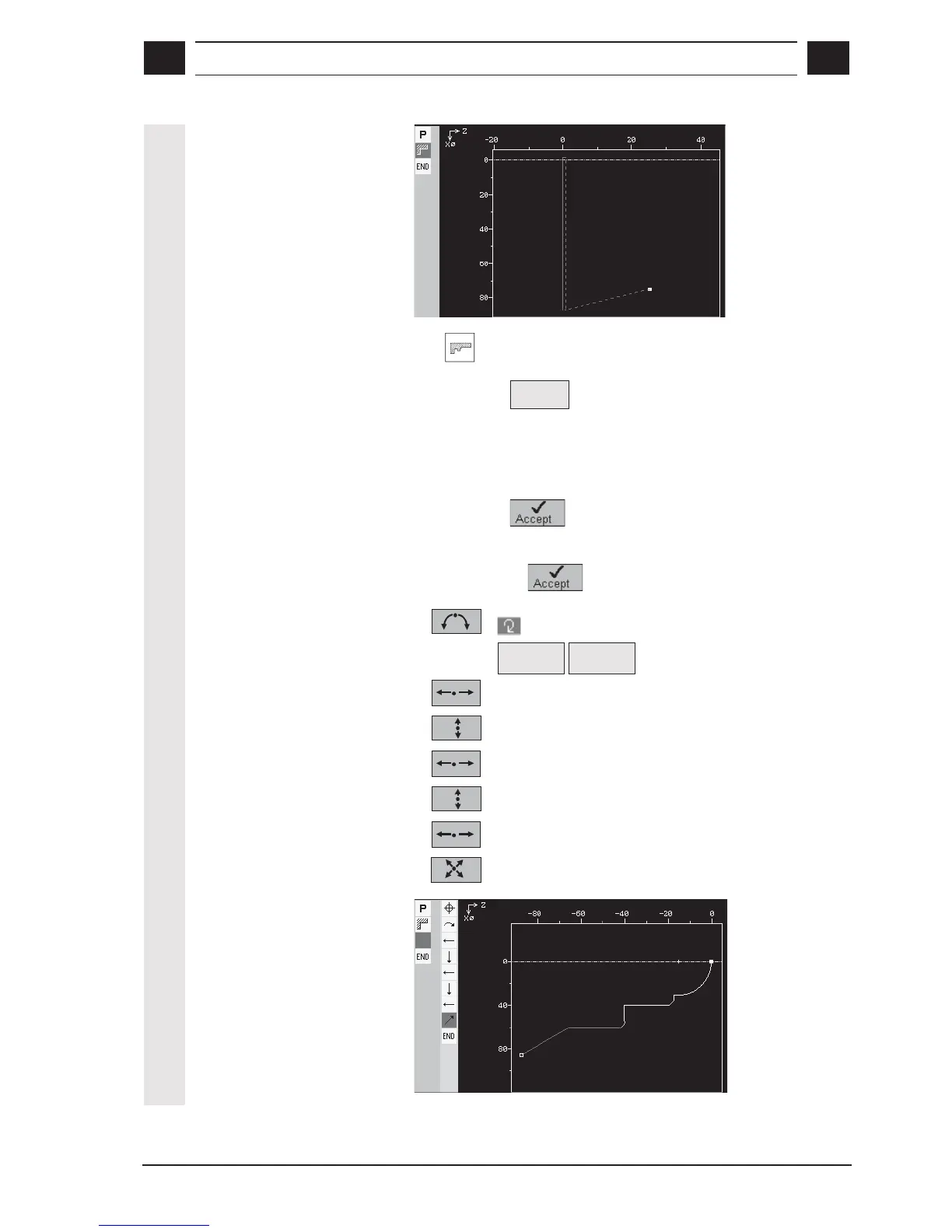

3. Contour input
with contour calculator
• Call
CONTOUR mode
• Press soft key
New
contour
• Enter contour name (here: Cont_13) and confirm
• Contour start point X0: 0 Z0: 0
FRCM: –
• Press soft key
• Enter the following contour elements and confirm each time by
pressing soft key
:
1. R: 15 X: 30 Z: -15
Select
dialog
Accept
dialog
2. Z: -17
3. X: 40 FS: 2
4. Z: -40
5. X: 60 R: 3
6. Z: -65 R: 3
7. X: 85 Z: -87
