08.02 Preparatory Functions for Machining
3.4 Offsets
3
© Siemens AG, 2002. All rights reserved
SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition 3-51

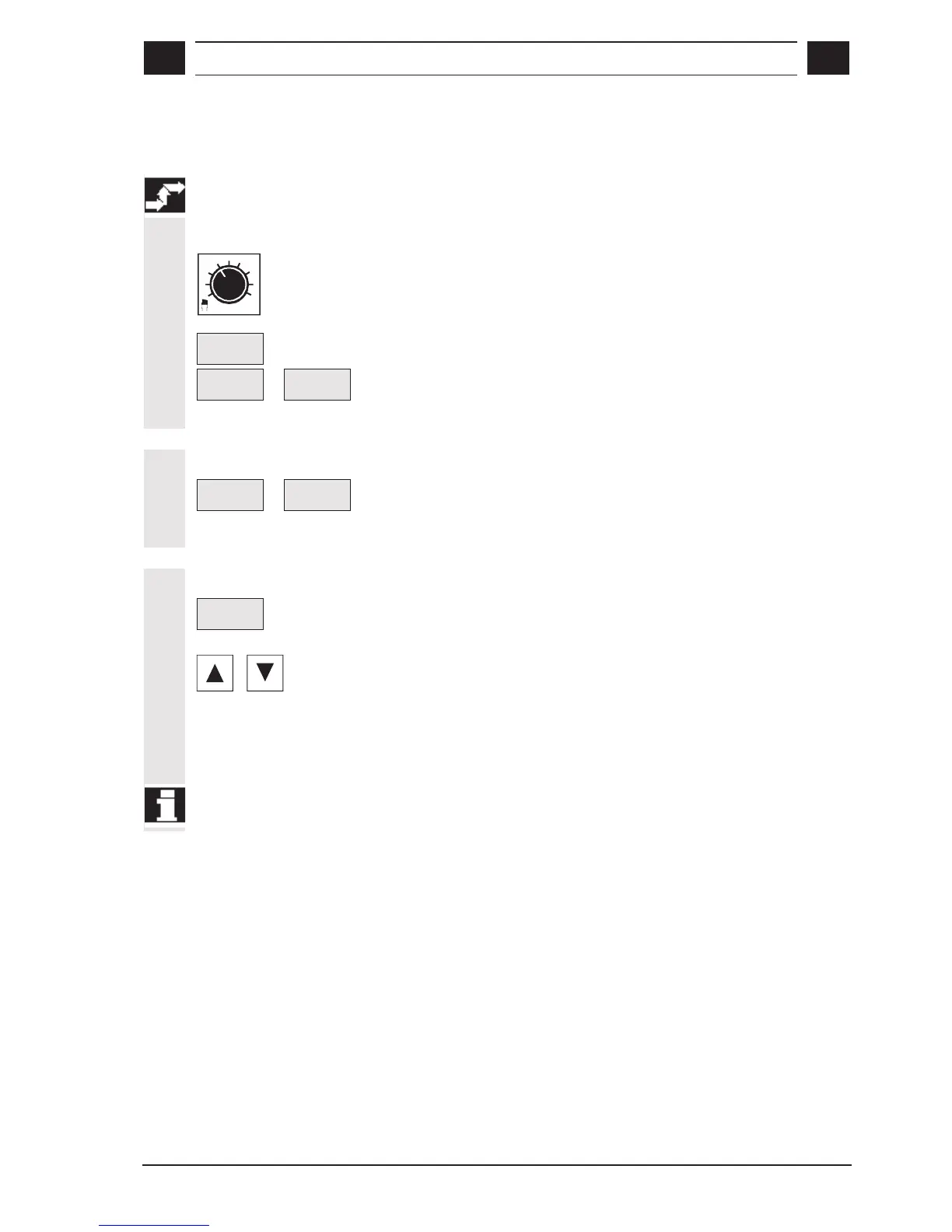

3.4.5 Zero offset
Sequence of operations
Reselect zero offset
Select any operating mode
Offset
Press the soft key labeled "Offset" in the extended soft key bar
ZO 1
...
ZO 4
and select a new zero offset with the relevant soft key
"> <" marks the zero offset you have activated
Deselect zero offset
ZO 1
...
ZO 4
Press the soft key for the selected zero offset again.
The zero offset is deselected.
Input zero offset
Offset
Select the soft key labeled "Offset" in the extended soft key menu in
any mode.
Use the cursor keys to select a zero offset, e.g. ZO1
Enter value for "X" (e.g. 100) and "Z" (e.g. 200).
Confirm your settings with "Input".
Enter other data if required.
You can enter data if no start command has been given.
