7
© Siemens AG, 2002. All rights reserved
SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition 7-145

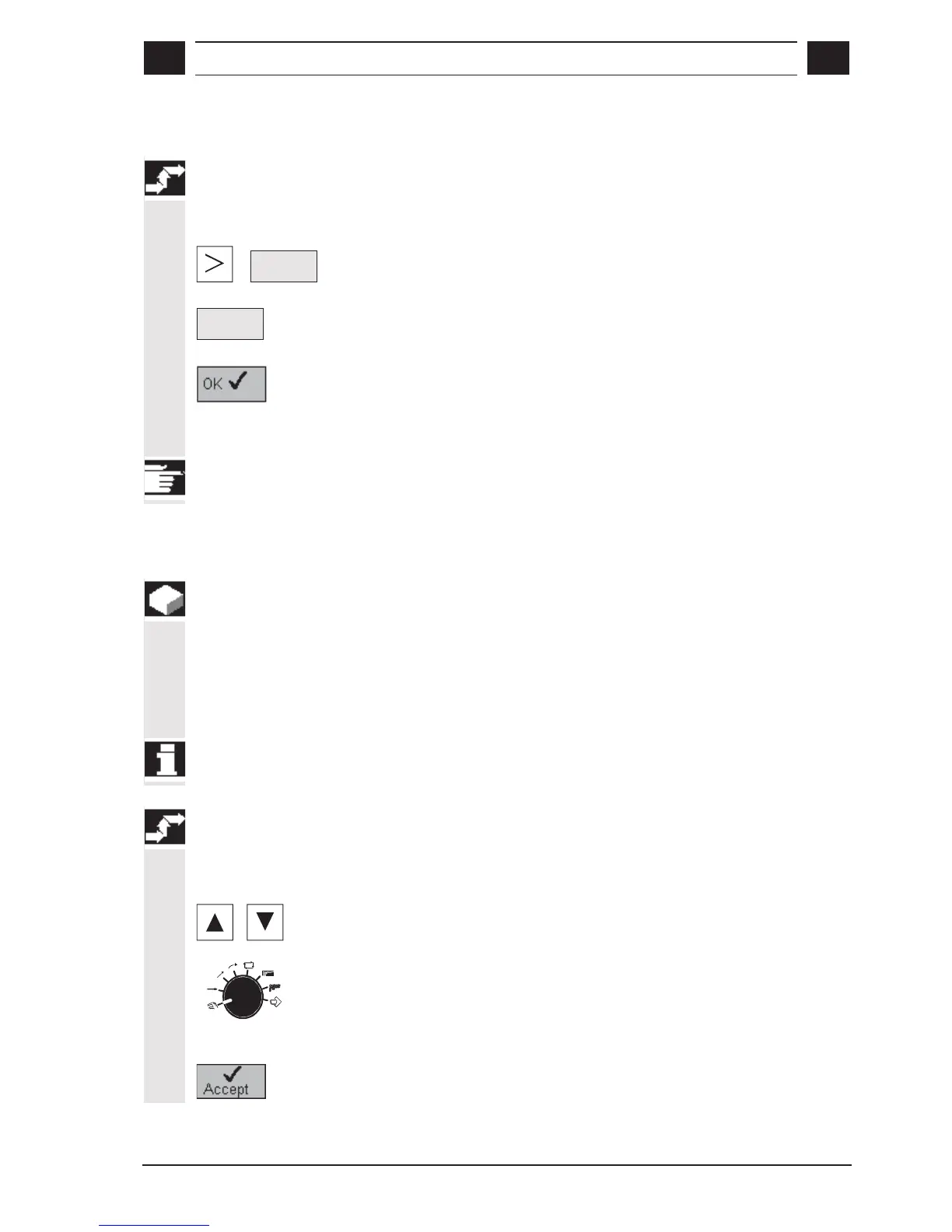

7.10.3 Create new parts program
Sequence of operations
Precondition
PROGRAM mode is selected.
G code
Activate the soft key "G code" in the extended soft key menu.
New
program
A dialog box is overlaid; enter the new file name for the parts program.
The new parts program is created under "Directory" and the G code
editor is opened.
Now enter the new parts program blocks.
/PG/, Programming Guide, Fundamentals
/PGA/, Programming Guide, Advanced
7.10.4 Inserting program blocks
Function
Simple contour elements (STRAIGHT, OBLIQUE, or CIRCLE mode)
and turning cycles (CYCLE or STOCK REMOVAL mode) can either be
inserted into the parts program in the "Current block" window in all
modes (except for MANUAL), or in the G code editor in PROGRAM
mode.
You cannot create complex contours (CONTOUR mode) within a
G code parts program.
Sequence of operations
Precondition
A parts program is loaded in the "Current block" window or in the
G code editor.
Position the cursor on the block preceding the location where you
would like to insert a new block.
Select the desired mode (here by using the mode switch).
Enter the parameters in the input screenform.
Accept the new block into the parts program.
