12
08.02 Examples
12.2 Exam
p
le 2: External machinin
g
with s
p
here
12
© Siemens AG, 2002. All rights reserved
SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition 12-191
• Press soft key

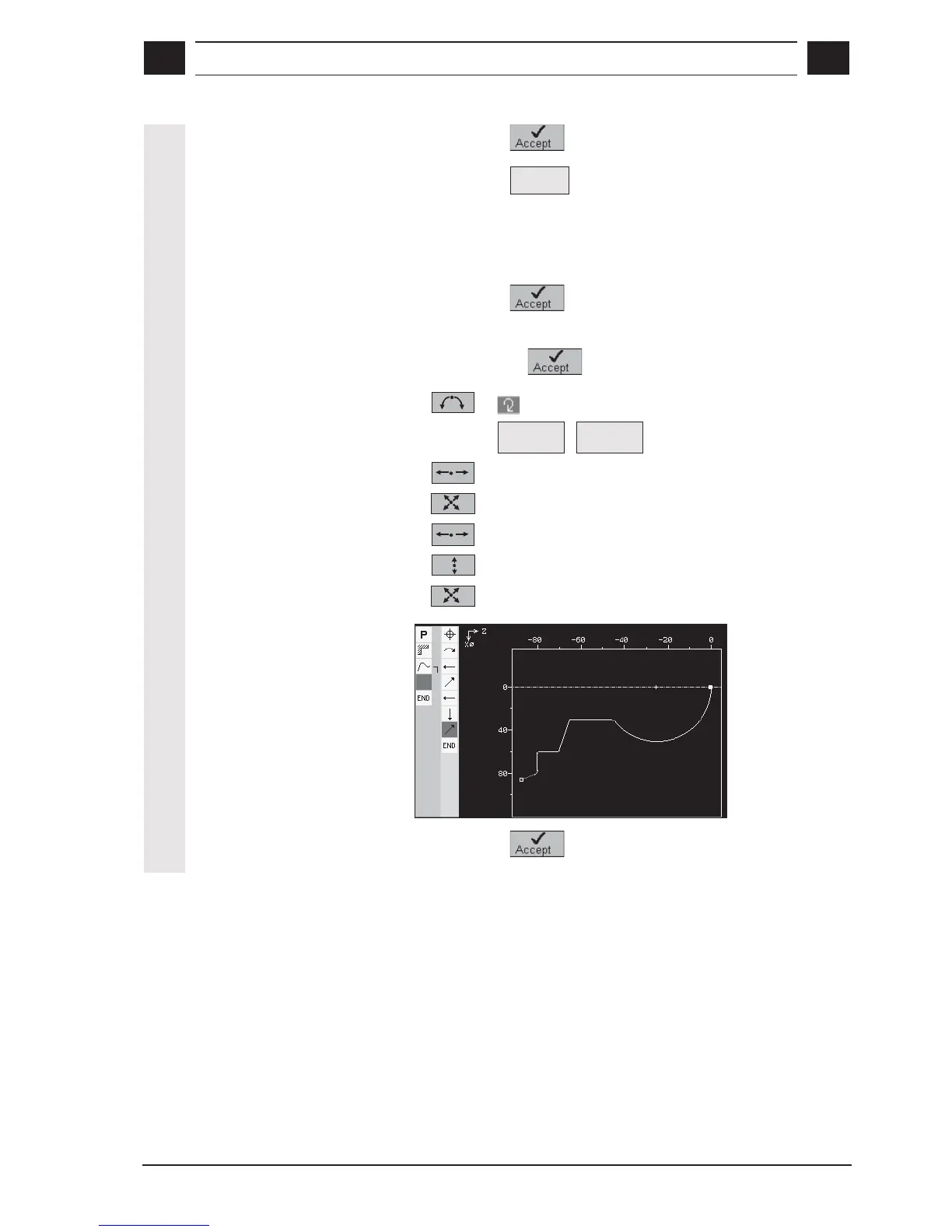

4. Finished-part contour input
with contour calculator
• Press soft key
New
contour
• Enter finished-part contour name (here: Cont_122) and confirm
• Finished-part contour start point X0: 0 Z0: 0
FRCM: –
• Press soft key
• Enter the following contour elements and confirm each time by
pressing soft key
:
1. R: 25 X: 30 K: -25
Select
dialog
Accept
dialog
R: 2
2. Z: -65
3. X: 60 Z: -70 R: 0.5
4. Z: -80 R: 0.5
5. X: 80 R: 2
6. X: 86 Z: -87
Result
• Press soft key
