5
Turning with Cycles 08.02
5.2 Turnin
g
c
y
cles in CYCLE mode
5
© Siemens AG, 2002. All rights reserved
5-90 SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition

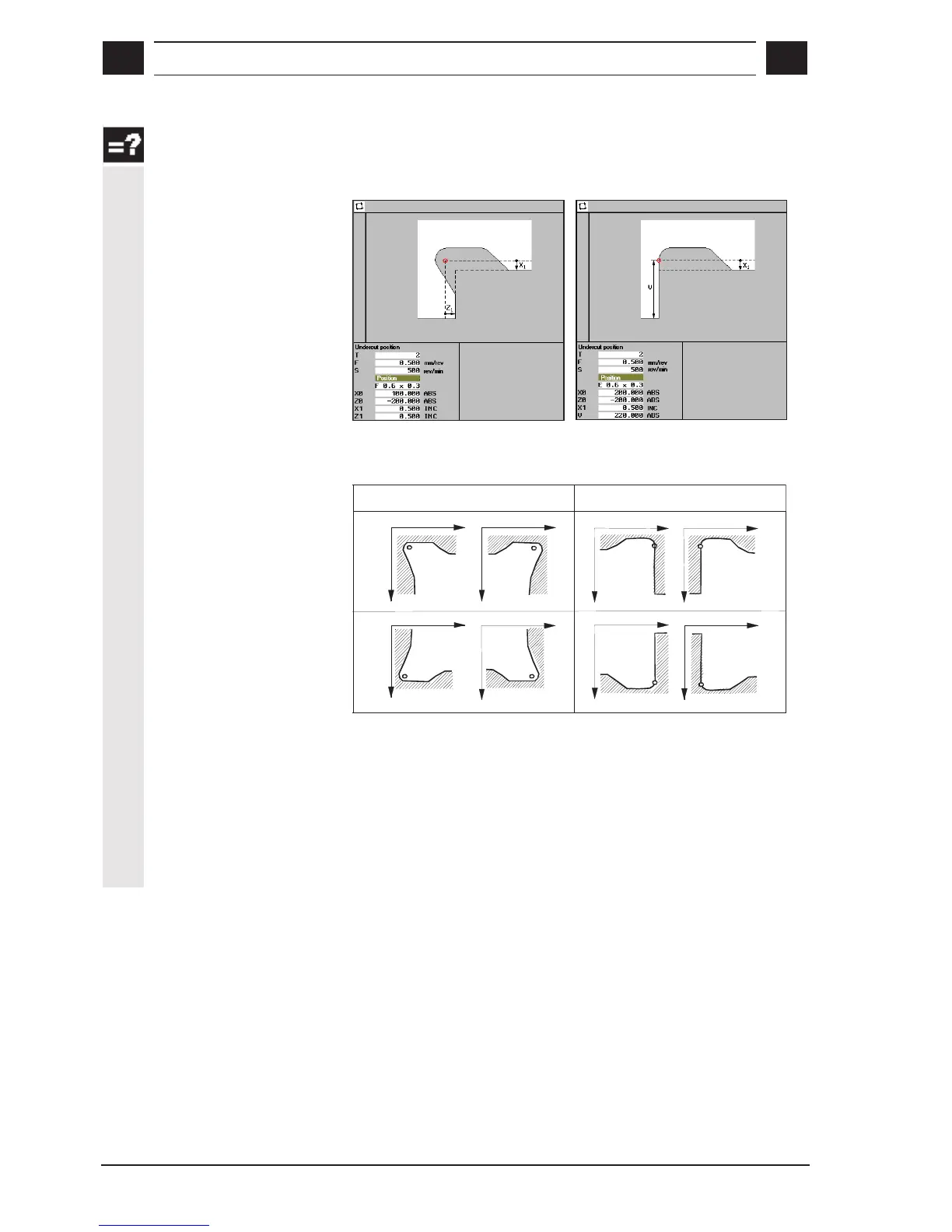

Explanation of parameters
Form F undercut Form E undercut
Position (alternative)
This setting determines the position of the undercut in the coordinate
system.
Z
Z
X
X
X
X
Z
Z
Z
Z
X
X
X
X
Z
Z
Form F undercut
Form E undercut
Undercut size
Selection according to DIN table: Radius/depth, e.g. F0.6 x 0.3 (Form
F undercut). Can be set via the "Alternat." soft key.
X0, Z0
Reference points for dimensioning
X1
Allowance in X direction
Z1
Allowance in Z direction (for Form F undercut)
V
Cross-feed X
