7.3 Display machining sequence
Sequence of operations
You can call the EasyStep flow chart from every mode (except for
MANUAL) via the information key.

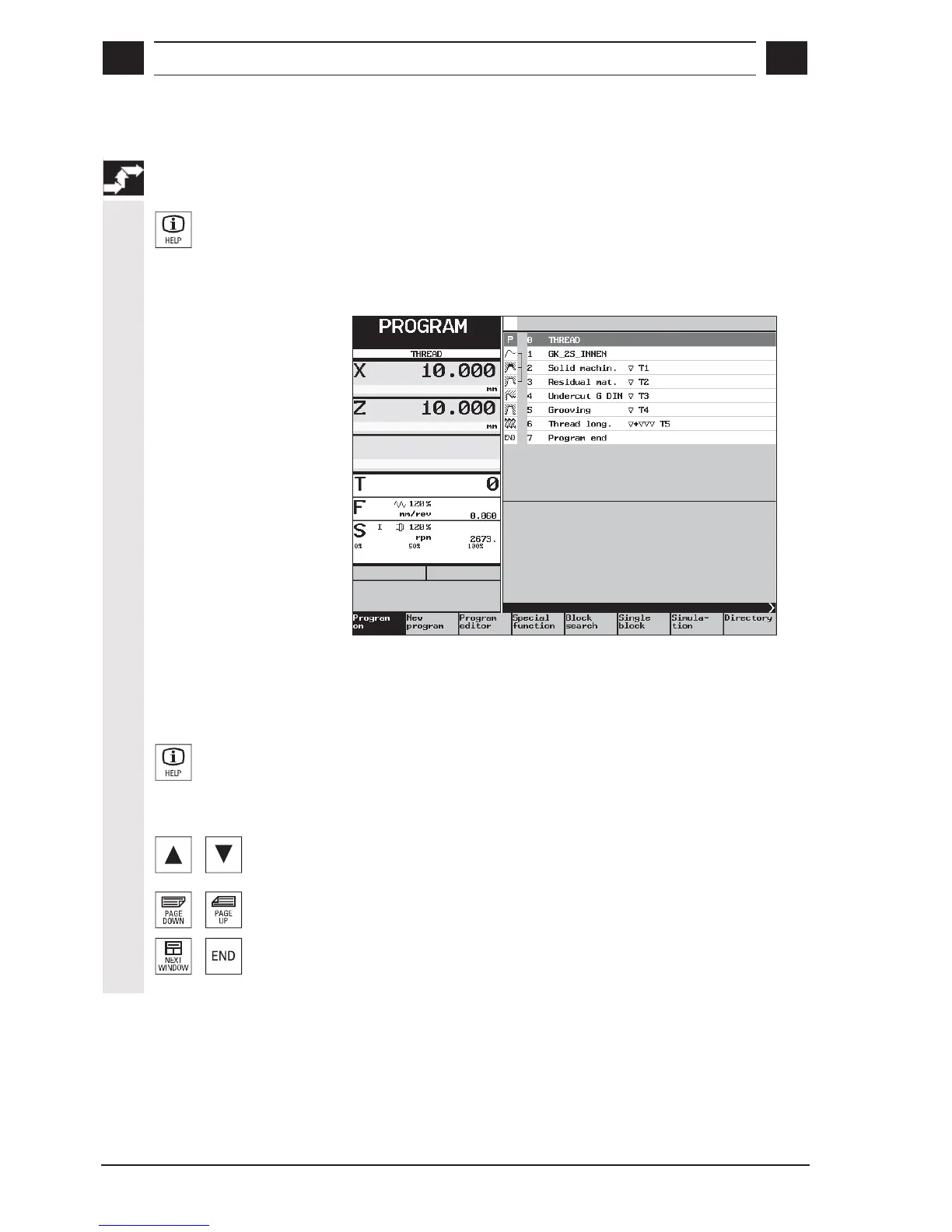

The machining sequence is displayed with the individual program
steps.
The contour steps contour, stock removal and residual material are
linked in the flow chart via a square bracket next to the machining
symbol.
You can switch between the contour display and the EasyStep flow
chart by activating the "Information" key.
You can navigate in the machining sequence using the following keys:
Move one line up or down.
Page one screen forward or back.
Jump to the beginning or end of the machining sequence.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
