Siemens SINUMERIK 840D Operation & Programming Manual

2
Operation 08.02
2.1 O
p
erator
p
anels
2
© Siemens AG, 2002. All rights reserved
2-18 SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition
2.1 Operator panels
Alternately, you can use one of the following operator panels for the
PCUs:
OP 010
OP 010C
OP 010S with CNC full keyboard OP 032S

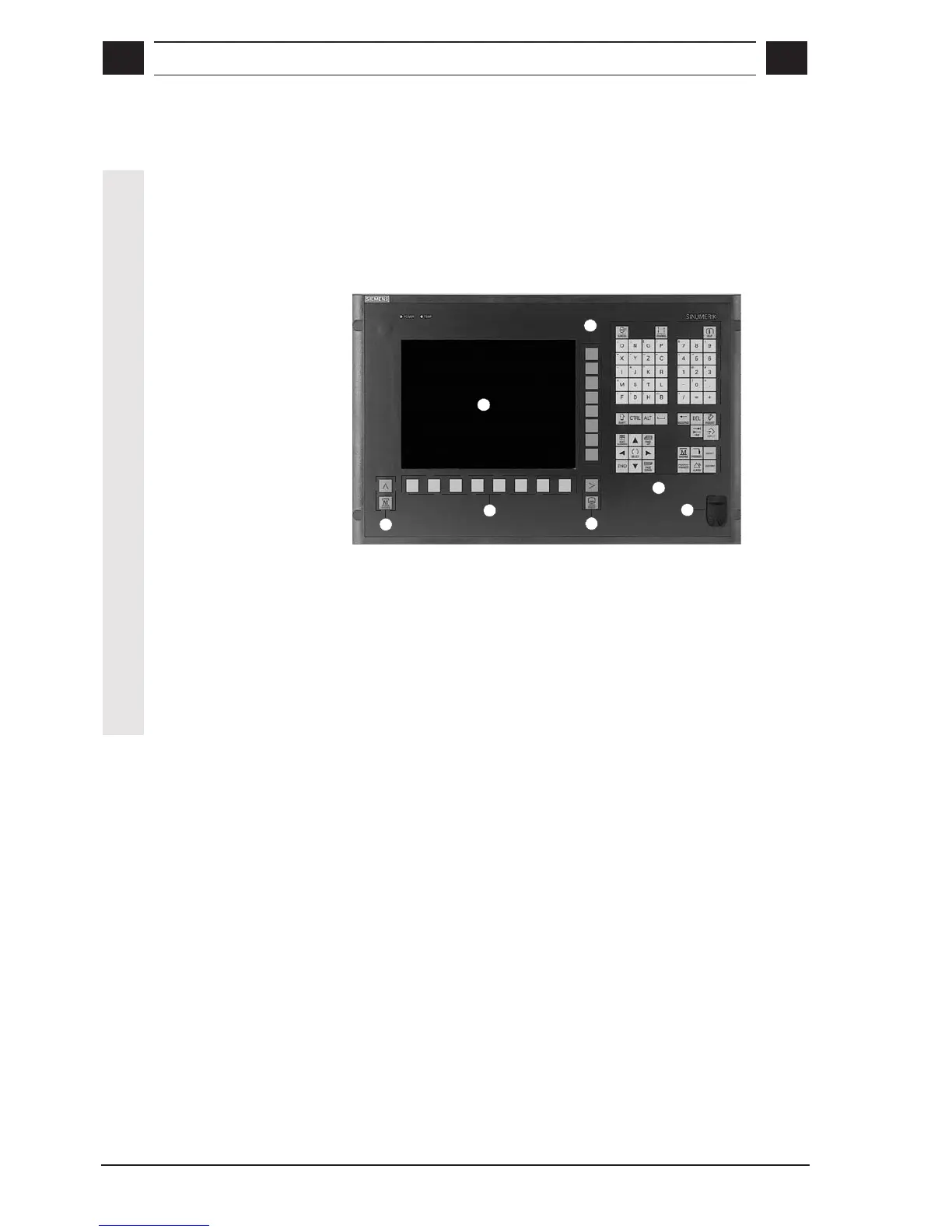

Operator panel OP 010
3
4
2
1
6
.
5
2
Operator panel OP 010
1 Monitor
2 Monitor keys
3 Horizontal soft key menu
4 Vertical soft key menu
5 Alphanumeric pad
Correction/cursor pad with control keys and input key
6 USB interface

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
