12
Examples 08.02
12.3 Exam
p
le 3: External machinin
g
with thread undercuts and
g
rooves
12
© Siemens AG, 2002. All rights reserved
12-194 SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition
12.3 Example 3: External machining with thread undercuts and grooves

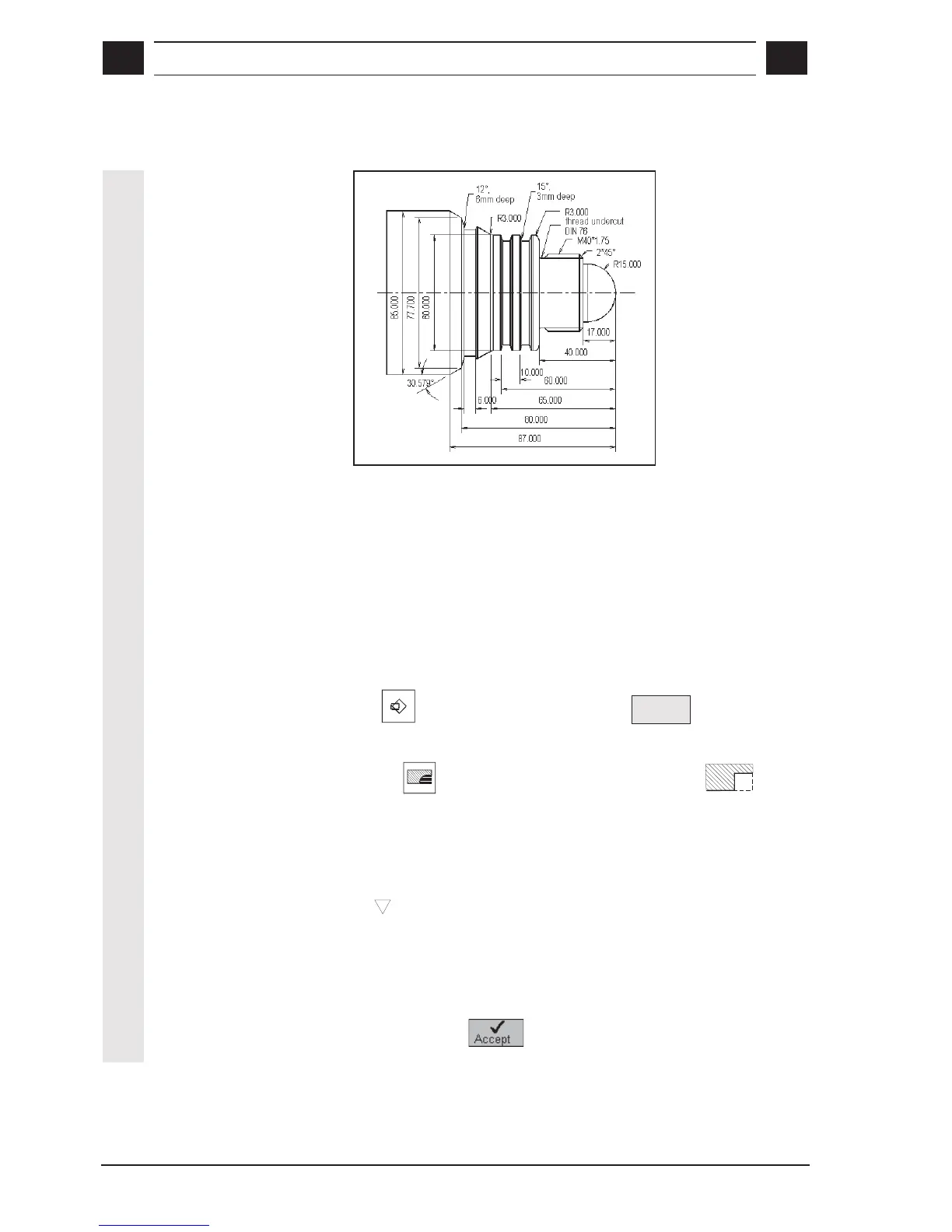

Workpiece drawing
Blank
Dimensions: Ø 85x120mm
Material: Aluminum
Tools
T1: 80° Roughing tool R 0.8
T2: 35° Finishing insert R 0.4
T3: Plunge-cutter 3mm
T4: Threading tool 1.75
T5: 35° Roughing insert R 0.8
Program
1. Create new program
Call
PROGRAM mode and press the
New
program
soft key
Enter program name (here: Part_3) and confirm
2. Stock removal cycle for
surface turning
Call
STOCK REMOVAL mode and press the soft
key
Set parameters:
T1 F: 0.2 mm/rev S: 150 m/min
Position: Set cutting position
Parallel to X axis
Reference point X0: 87 Z0: 1
End point X1: -1.6 Z1: 0
Infeed depth D: 2 inc
Finishing allowance Ux: 0 Uz:0.1
Press soft key
