08.02 Turning Simple Contours
4.2 Turnin
g
with
p
ath dimension in
p
ut
4
© Siemens AG, 2002. All rights reserved
SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition 4-69

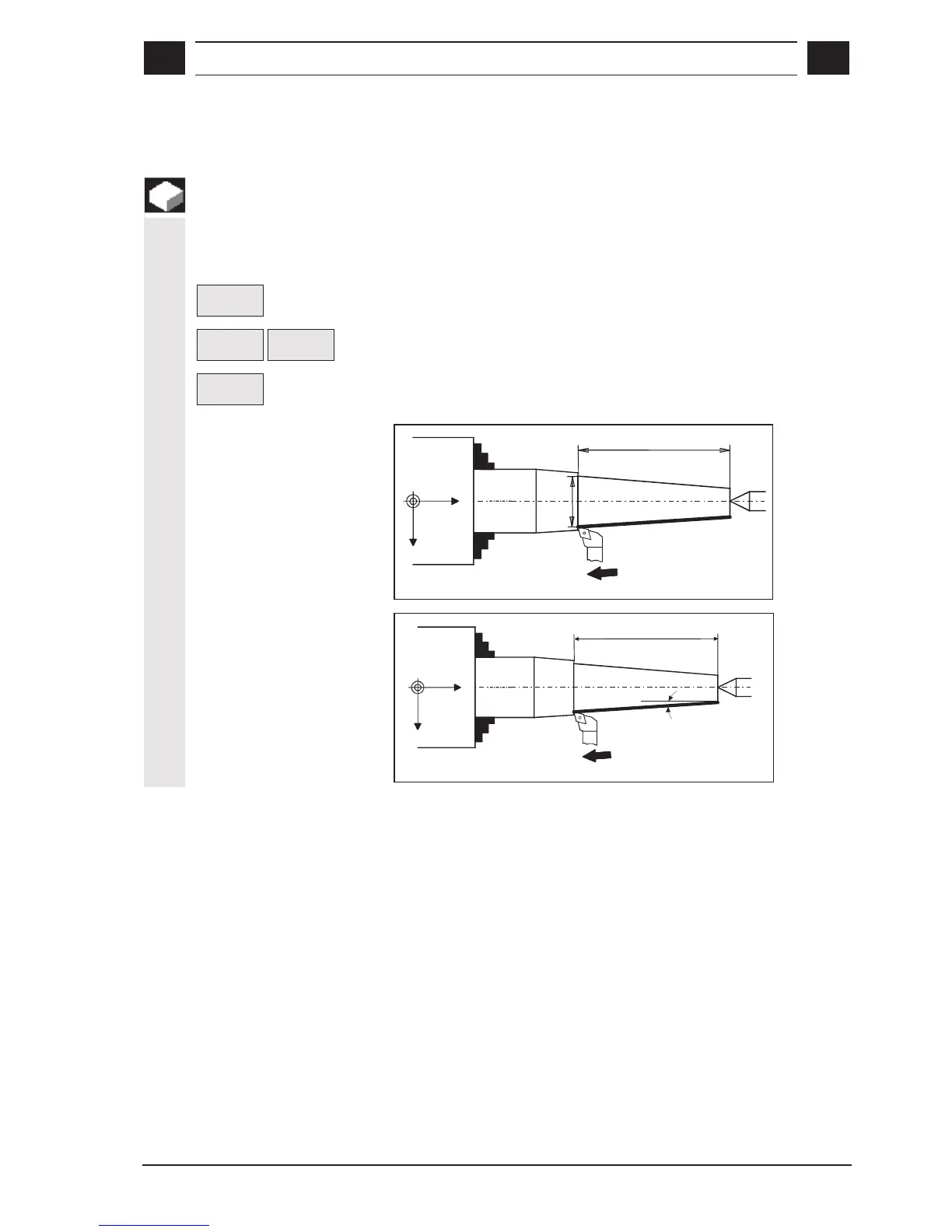

4.2.2 Turning with CONICAL mode
Function
The following parameter setting options are available to you for taper
turning operations:
XZ
Input of XZ coordinates
Xα Zα
Input of an X or Z coordinate and an angle
XZC
Input of an X or Z coordinate and a rotary axis (e.g. C)
Example of taper turning
with input path dimension
X+
Z+
Ø
100
325
Example of taper turning
with input path dimension
and angle
X+
Z+
325
4°
