7
Program Creation with EasyStep and G Code 08.02
7.4 Pro
g
ram ste
p
s
7
Ā© Siemens AG, 2002. All rights reserved
7-134 SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition

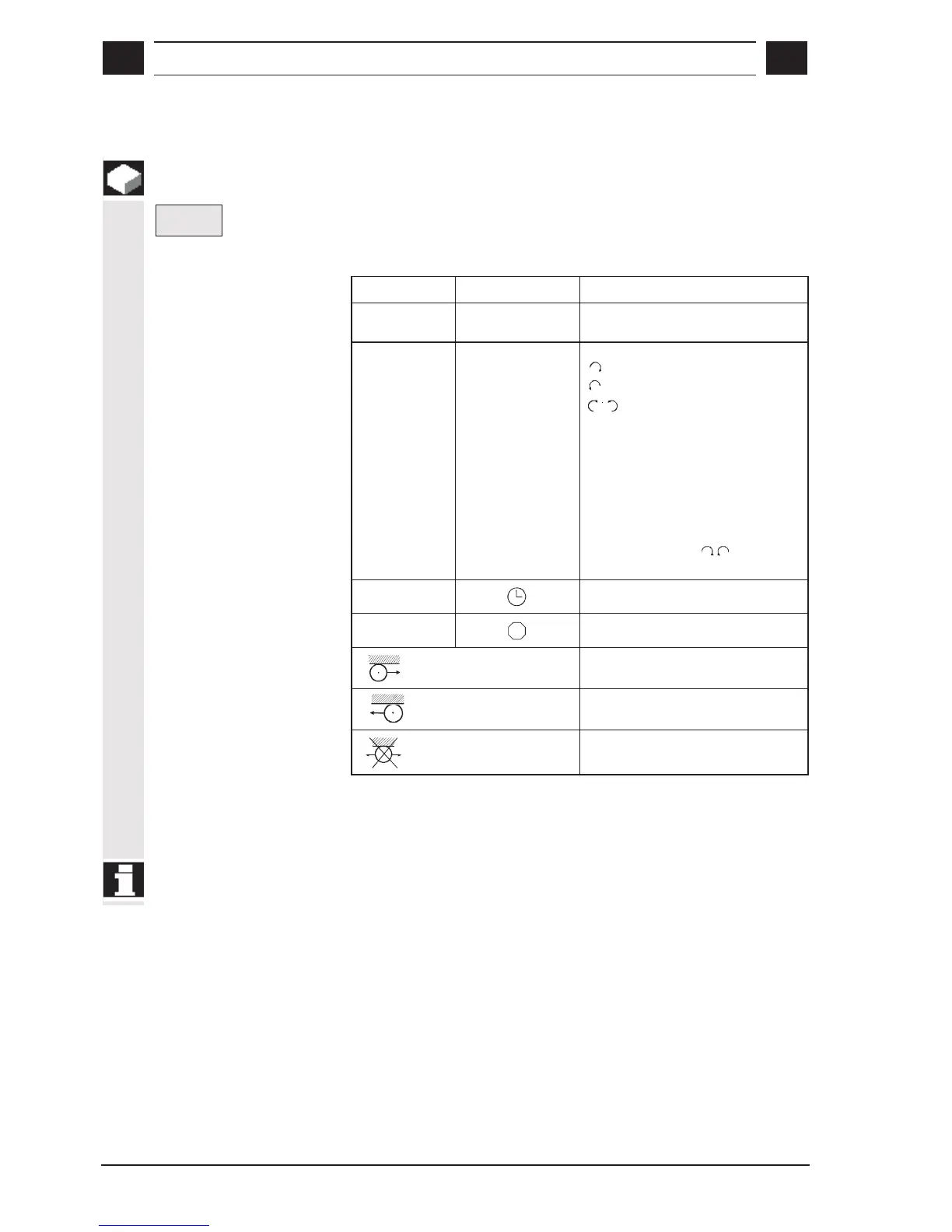

7.4.2 Special functions
Function
Special
functions
If you select the soft key labeled "Special functions" in the main soft
key menu of PROGRAM mode, you can insert the following functions
into your machining sequence:
Soft key Symbol Function
G code block G Insert G code blocks and comments
(max. 241 characters)
Auxiliary
commands
M
Spindle:
Spindle left
0
Spindle right
Oriented spindle Stop
Spindle off
-
Coolant: On, Off, -
Gear step: 0, I, II, III, -
Other M commands: See data supplied
by machine manufacturer
2nd spindle:
Speed rev/min
Direction of rotation
Dwell Input in revolutions
Stop Programmed stop (NC stop)
Tool nose radius compensation on, in
machining direction right of the contour
Tool nose radius compensation on, in
machining direction left of the contour
Tool nose radius compensation off
Please read the instructions on tool nose radius compensation in
Section "Tool nose radius compensation".
You can also use the special functions outside programs, e.g. to start
your 2nd spindle (tool spindle).
