Siemens SINUMERIK 840D Operation & Programming Manual

12
Examples 08.02
12.1 Exam
p
le 1: External machinin
g
with
g
roove and thread
12
© Siemens AG, 2002. All rights reserved
12-188 SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition
Number of cuts AS: 14
Insertion depth E: 0.24
Finishing allowance U: 0
Lift in X V: 2
Starting angle offset Q: 0
• Press soft key
Result

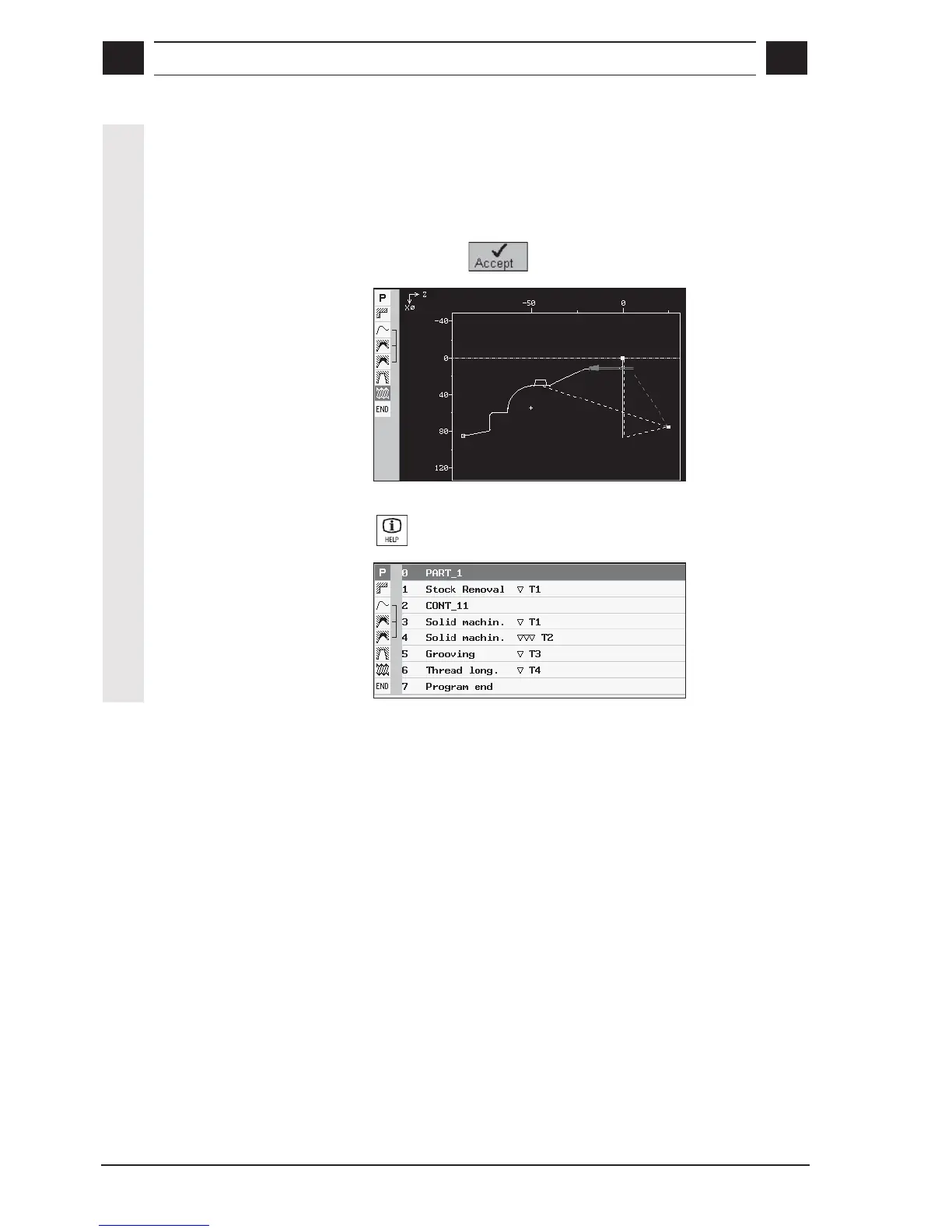

8. Completed EasyStep
program
Switch from the programming graphics to the flow chart by pressing
the
key:
