Siemens SINUMERIK 840DE

Fundamentals
Programming Manual, 10.2004 Edition, 6FC5 298-7AB00-0BP1
6-1
Frames
6
6.1 General
Function

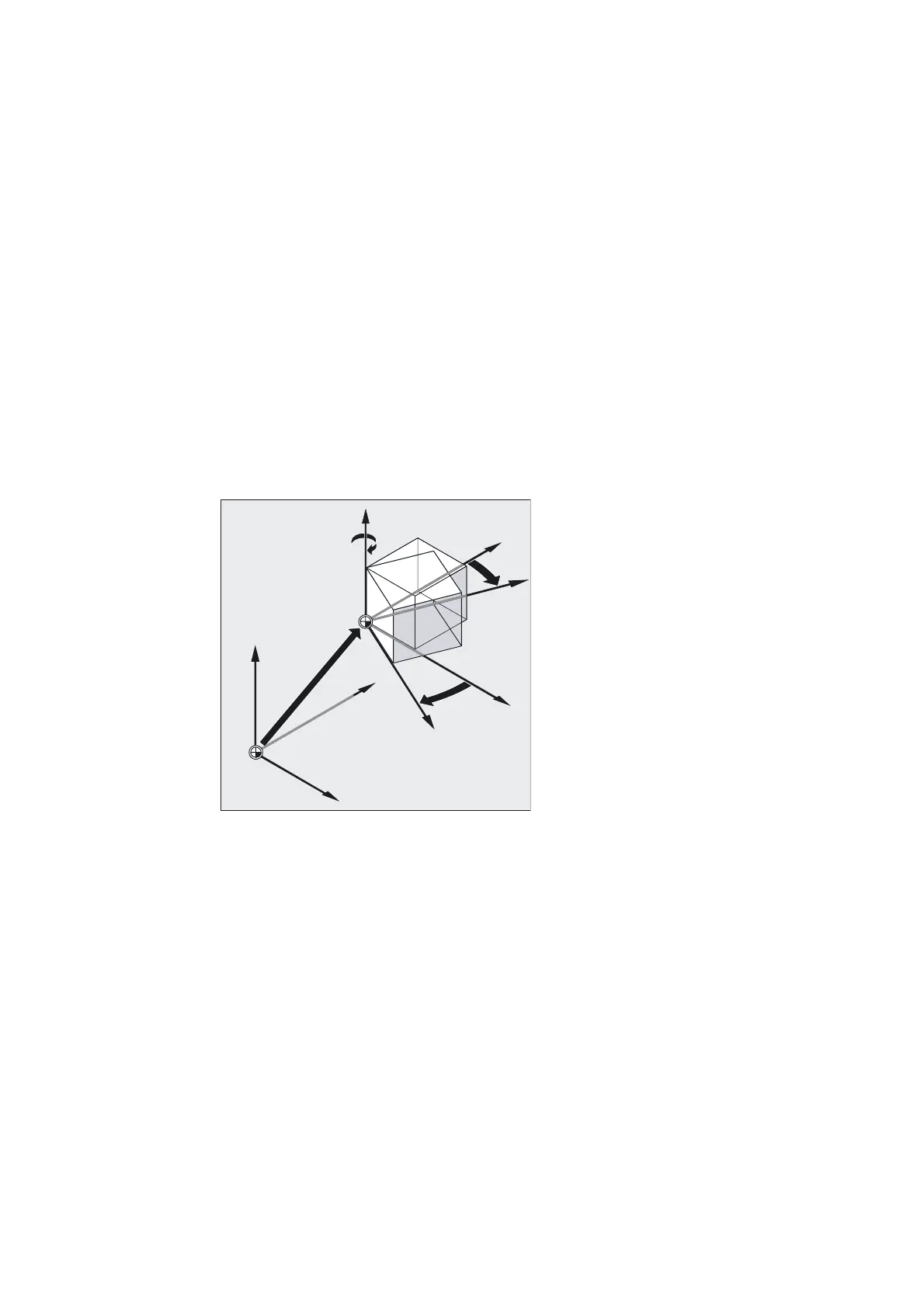

Frames are used to describe the position of a destination coordinate system by specifying
coordinates or angles starting from the current workpiece coordinate system.
;
<
;
<
= =
5RWDWLRQ
DURXQGWKH=
D[LV
;0
<0
=0
=HURRIIVHW
Possible frames:
• Basic frame (basic offset)
• Settable frames (G54...G599)
• Programmable frames
Programming
Frame is the conventional term for a geometrical expression that describes an arithmetic
rule, such as translation, rotation and scaling or mirroring.
