Siemens SINUMERIK 840DE

Feedrate Control and Spindle Motion
7.6 Cylinder surface transformation (TRACYL)
Fundamentals
Programming Manual, 10.2004 Edition, 6FC5 298-7AB00-0BP1
7-21

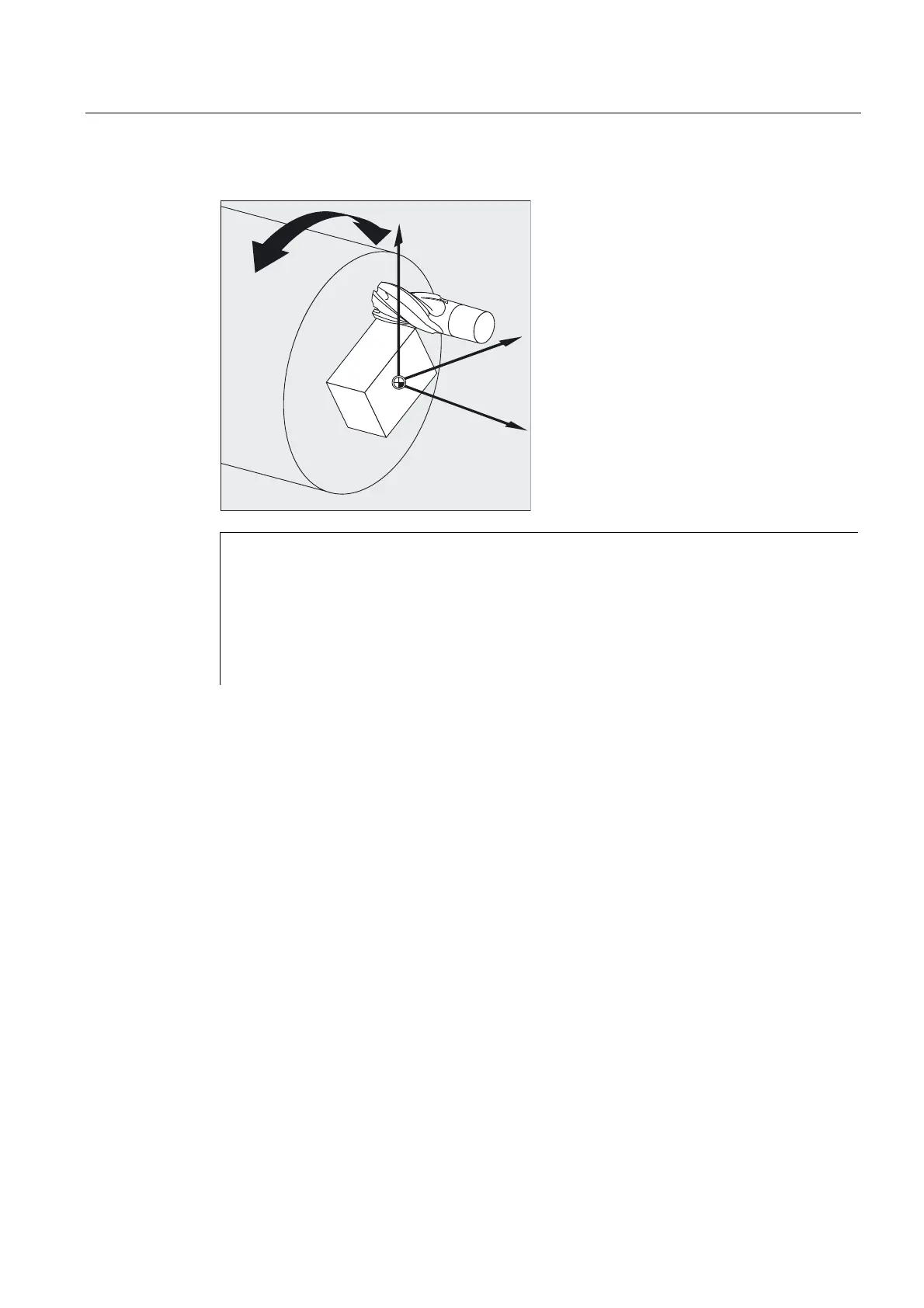

Example of activating TRANSMIT function
<
=
;
N10 T1 D1 G54 G17 G90 F5000 G94 ;Tool selection
N20 G0 X20 Z10 SPOS=45 ;Approach start position
N30 TRANSMIT ;Activate TRANSMIT function
N40 ROT RPL=–
N50 ATRANS X
;Set frame
N60 G1 X10 Y
N70 X–
N80 Y10
N90 X10
N100 Y–
N110 ...
;Four-edge roughing
References:/PGA/Programming Guide, Advanced, chapter "Transformations"
7.6 Cylinder surface transformation (TRACYL)
Function
The functional scope of the cylinder surface curve transformation TRACYL is as follows:
Machine
• Longitudinal grooves on cylindrical bodies,
• Transverse grooves on cylindrical objects,
• Grooves with any path on cylindrical bodies.
