Feedrate Control and Spindle Motion
7.6 Cylinder surface transformation (TRACYL)
Fundamentals
7-22 Programming Manual, 10.2004 Edition, 6FC5 298-7AB00-0BP1

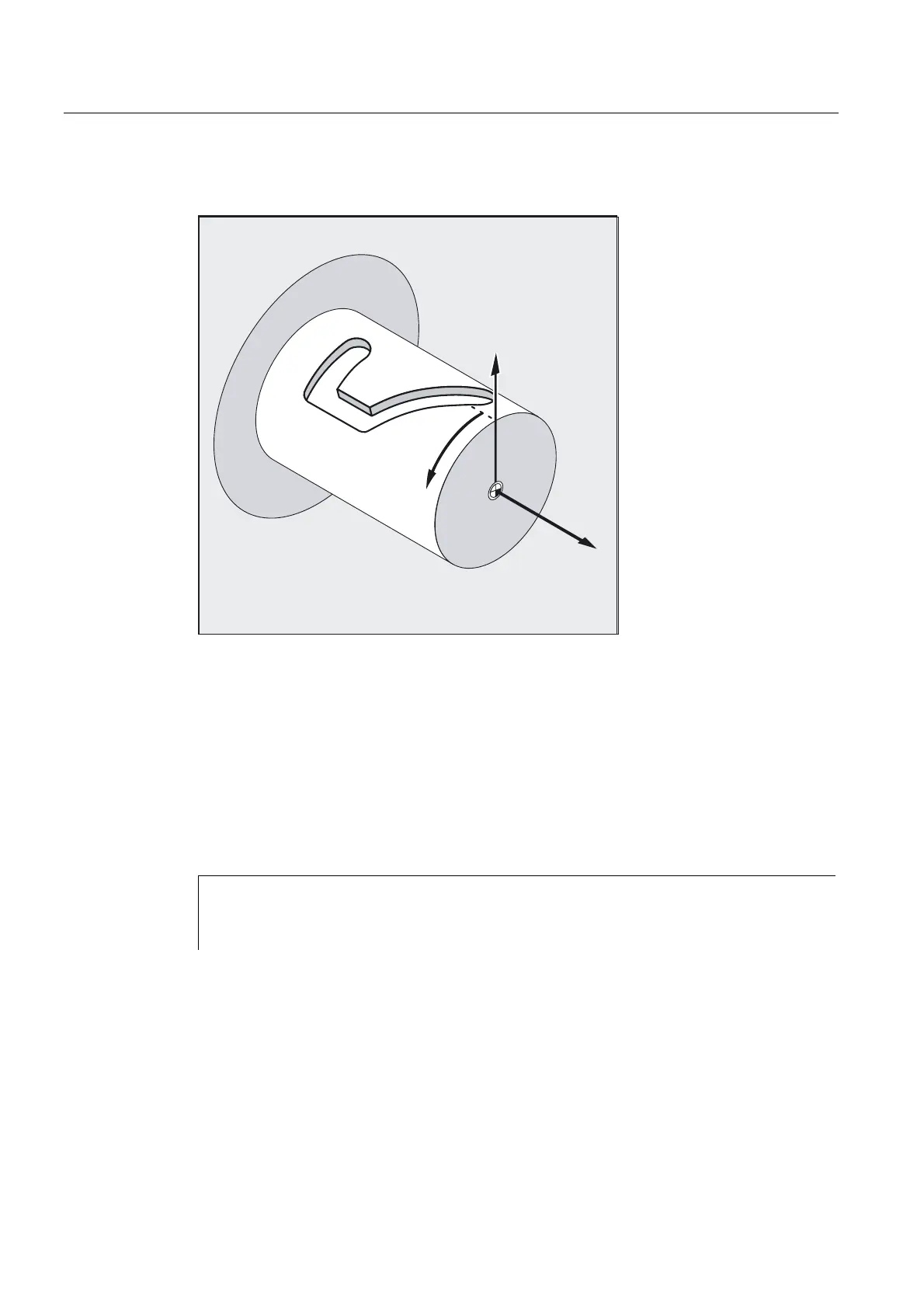

The path of the grooves is programmed with reference to the unwrapped, level surface of the
cylinder.
;
=
<
References:/PGA/ Programming Guide, Advanced, chapter "Transformations"
Programming
TRACYL(d) or TRACYL(d,t)
Or
TRAFOOF
Parameters
TRACYL (d) Activates the first declared TRACYL function
TRACYL(d,n) Activates the nth declared TRACYL function. N can be up to
2, TRACYL(d,1) is the same as TRACYL(d).
d Value for the current diameter of the cylinder to be
machined.
TRAFOOF Transformation off
References: An active TRACYL transformation is likewise deactivated if one of the other
transformations is activated in the relevant channel (e.g. TRANSMIT, TRAANG, TRAORI).
