Programming Motion Commands
4.21 Travel to fixed stop (FXS, FXST, FXSW)
Fundamentals
Programming Manual, 10.2004 Edition, 6FC5 298-7AB00-0BP1
4-67
Example
The tool change location is a fixed point, which is defined in the machine data.
This point can be approached in any NC program with G75.
N10 G75 FP=2 X1=0 Y1=0 Z1=0 ;Retract from fixed point 2 on X, Y and
Z, 
;e.g., for tool change
N20 G75 X1=0 ;Approach fixed point X1
N30 M30 ;End of program
4.21 Travel to fixed stop (FXS, FXST, FXSW)
Function
The "travel to fixed stop" (FXS = Fixed Stop) function can be used to build defined forces for
clamping workpieces, such as those required for tailstocks, quills and grippers. The function
can also be used for the approach of mechanical reference points.

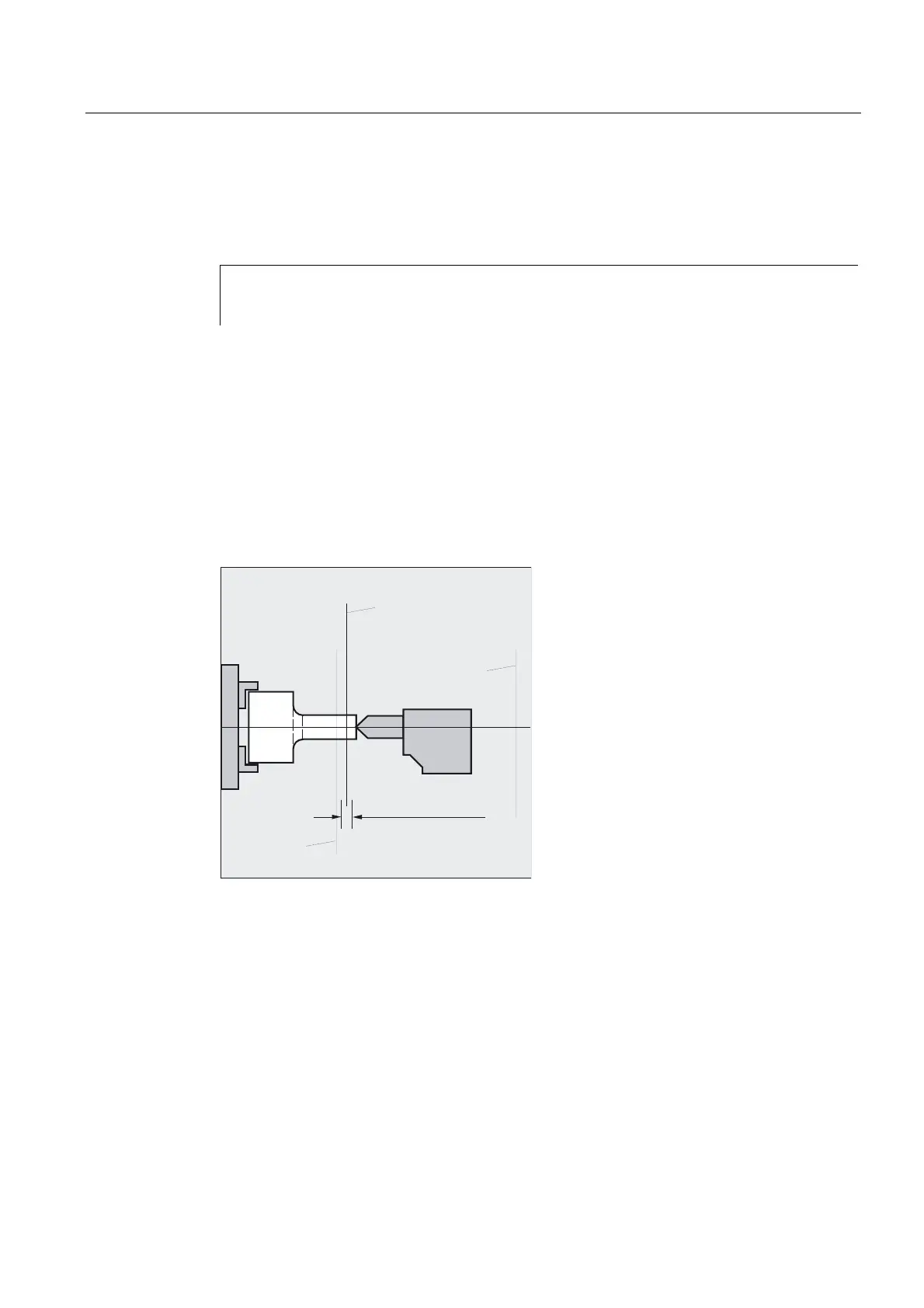

3URJUDPPHG
(QGSRVLWLRQ
)L[HGVWRS
0RQLWRULQJZLQGRZ
6WDUWSRVLWLRQ
$FWXDOSRVLWLRQDIWHU
7UDYHOWRIL[HGVWRS
With sufficiently reduced torque, it is also possible to perform simple measurement
operations without connecting a probe. The "travel to fixed stop" function can be
implemented for axes as well as for spindles with axis-traversing capability.
Programming
FXS [axis]=…
FXST [axis]=…
FXSW [axis]=…
