Siemens SINUMERIK 840DE

Frames
6.7 Programmable mirroring (MIRROR, AMIRROR)
Fundamentals
Programming Manual, 10.2004 Edition, 6FC5 298-7AB00-0BP1
6-31
=
:
=
0
:





0
;
;
6SLQGOH
6SLQGOH

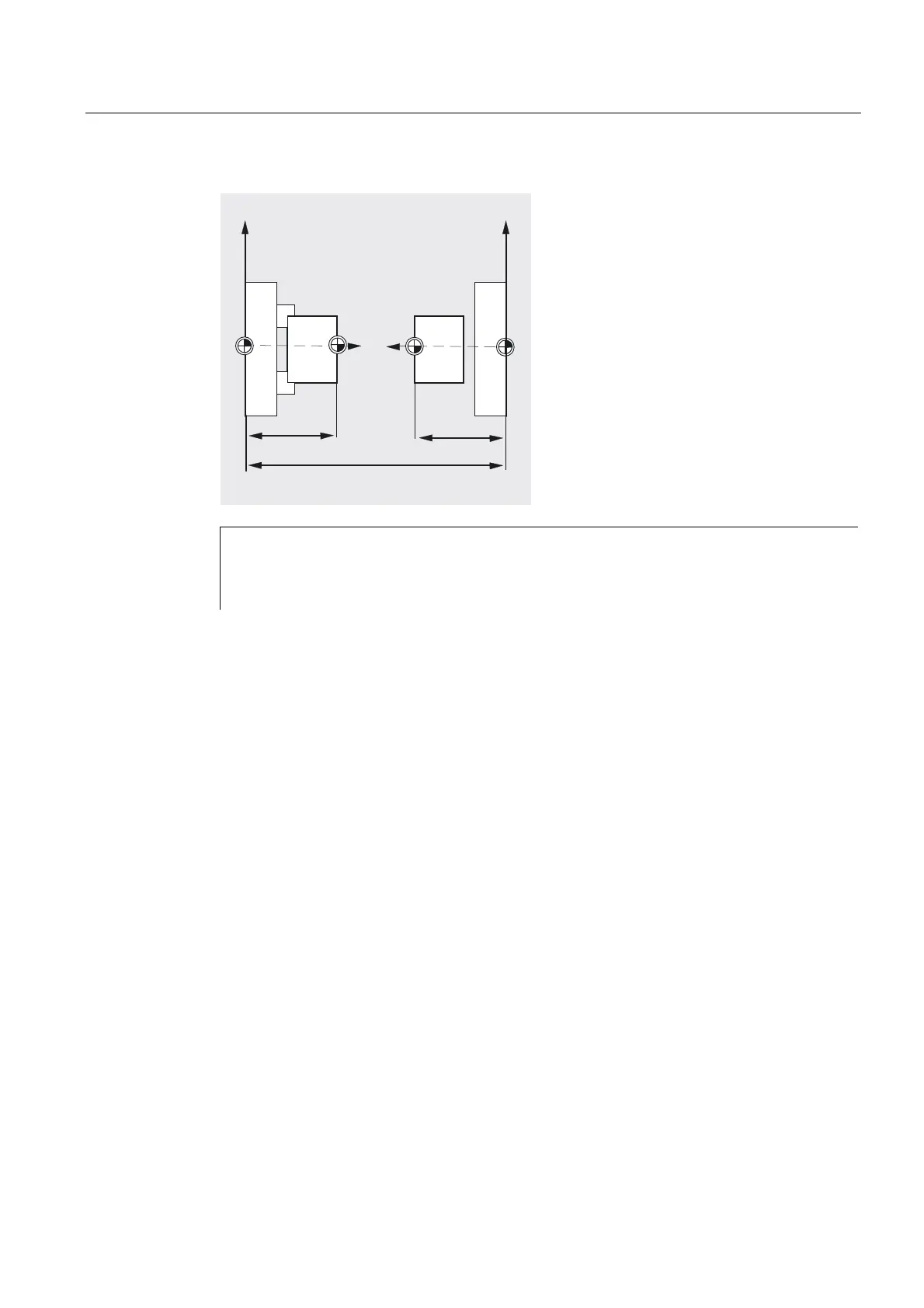

N10 TRANS X0 Z140 ;Zero offset to W
N.. ... ;Machine first side with spindle 1
N30 TRANS X0 Z600 ;Zero offset to spindle 2
N40 AMIRROR Z0 ;Mirroring of the Z axis
N50 ATRANS Z120 ;Zero offset to W
1
N.. ... ;Machine second side with spindle 2
Substituting instruction, MIRROR X Y Z
The mirror is programmed by means of an axial change of direction in the selected working
plane.
Example: Working plane G17 X/Y
The mirror (on the Y axis) requires a change of direction on X and is subsequently
programmed with MIRROR X0. The contour is then mirrored on the opposite side of the
mirror axis Y.
