12.Tighten the pick-up bracket ②.

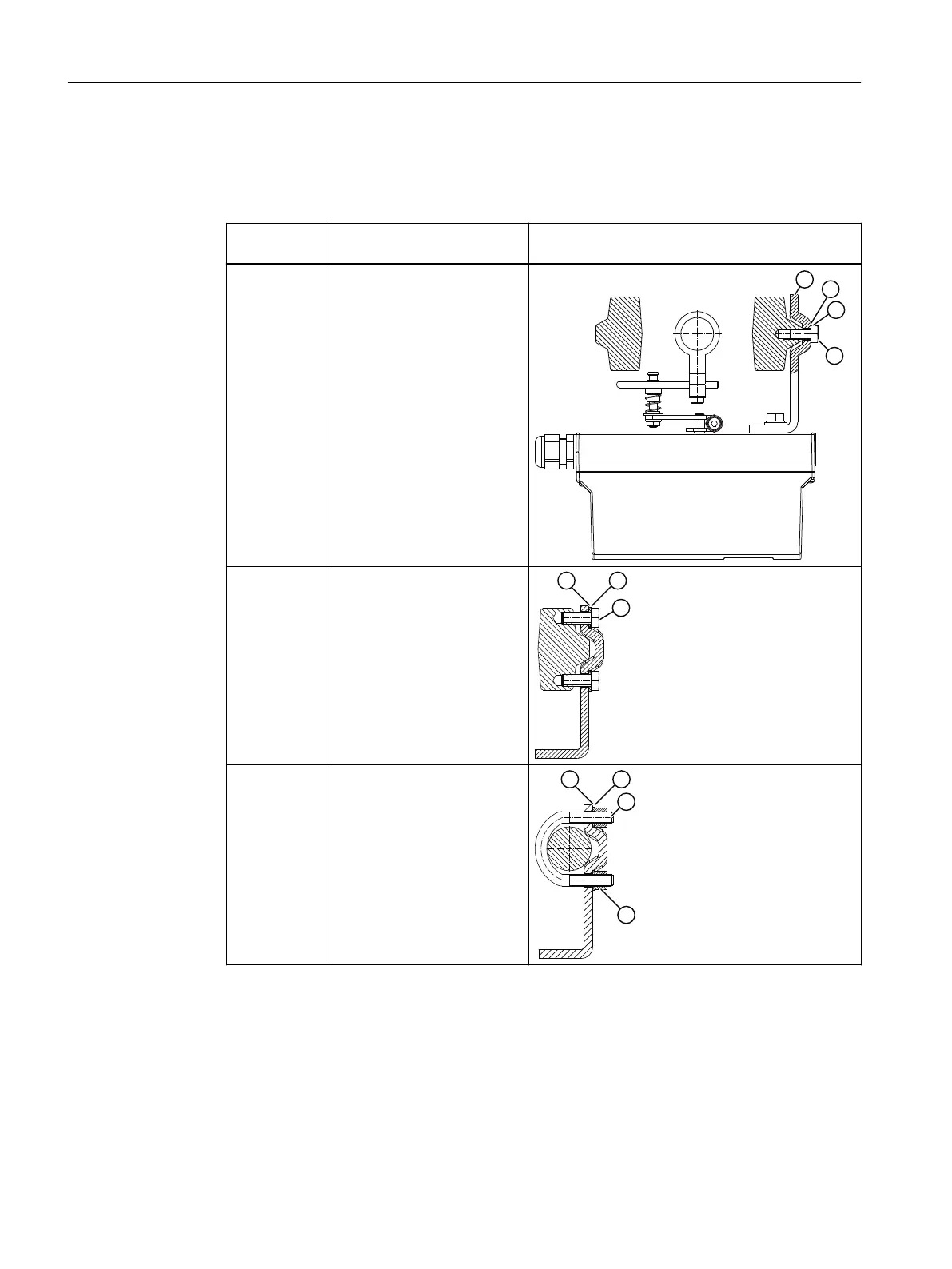

13.Fasten the positioner on the yoke. Use the installation parts suitable for the corresponding
actuator.
Actuator type Required installation compo‐
nents
Yoke with fin
● Hexagon bolt ⑧
● Washer ⑪
● Spring lock washer ⑩




Yoke with
plane surface
● Four hexagon bolts ⑧
● Washer ⑪
● Spring lock washer ⑩


Yoke with col‐
umns
● Two U–bolts ⑦
● Four hexagon nuts ⑳
● Washer ⑪
● Spring lock washer ⑩



Installing/mounting
4.2 Mounting to linear actuator
SIPART PS2 with 4 to 20 mA/HART
44 Operating Instructions, 11/2019, A5E00074631-AE

Siemens SIPART PS2 series Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Type	Electropneumatic
Input Signal	4-20 mA
Stroke Range	3 to 200 mm
Rotary Range	30 to 100°
Mounting	Linear or rotary actuators
Certifications	ATEX, IECEx, FM, CSA
