[lo-pvl-senden-20110530, 1, en_US]

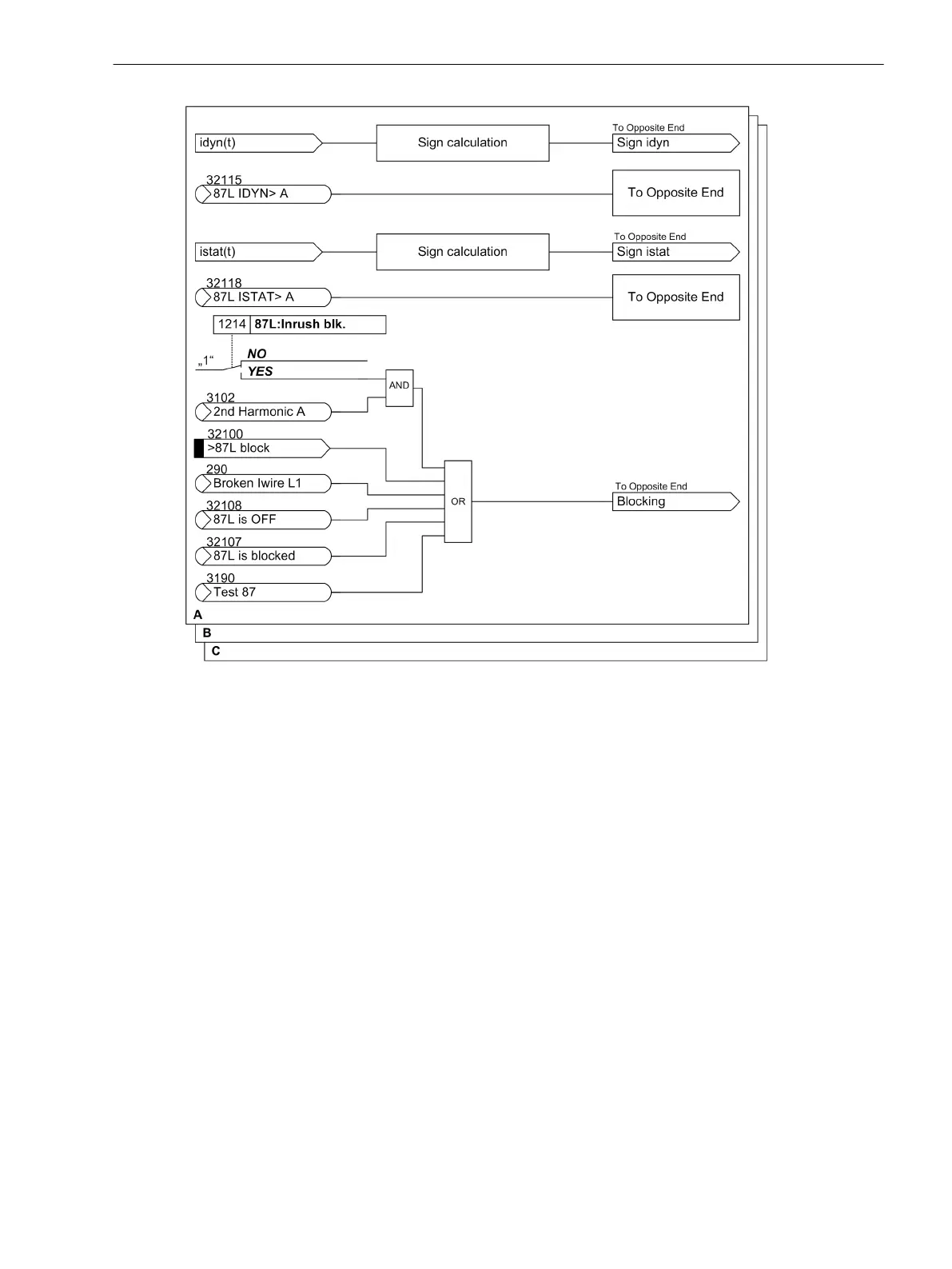

Figure 2-6
Phase comparison protection, sending the differential protection information to the opposite
end
The received pickup and blocking information is compared with the own differential protection information
and element-specific pickup indications are created.
Functions
2.2 Phase Comparison Protection and Ground Differential Protection
SIPROTEC 4, 7SD80, Manual 51
E50417-G1100-C474-A2, Edition 02.2018
