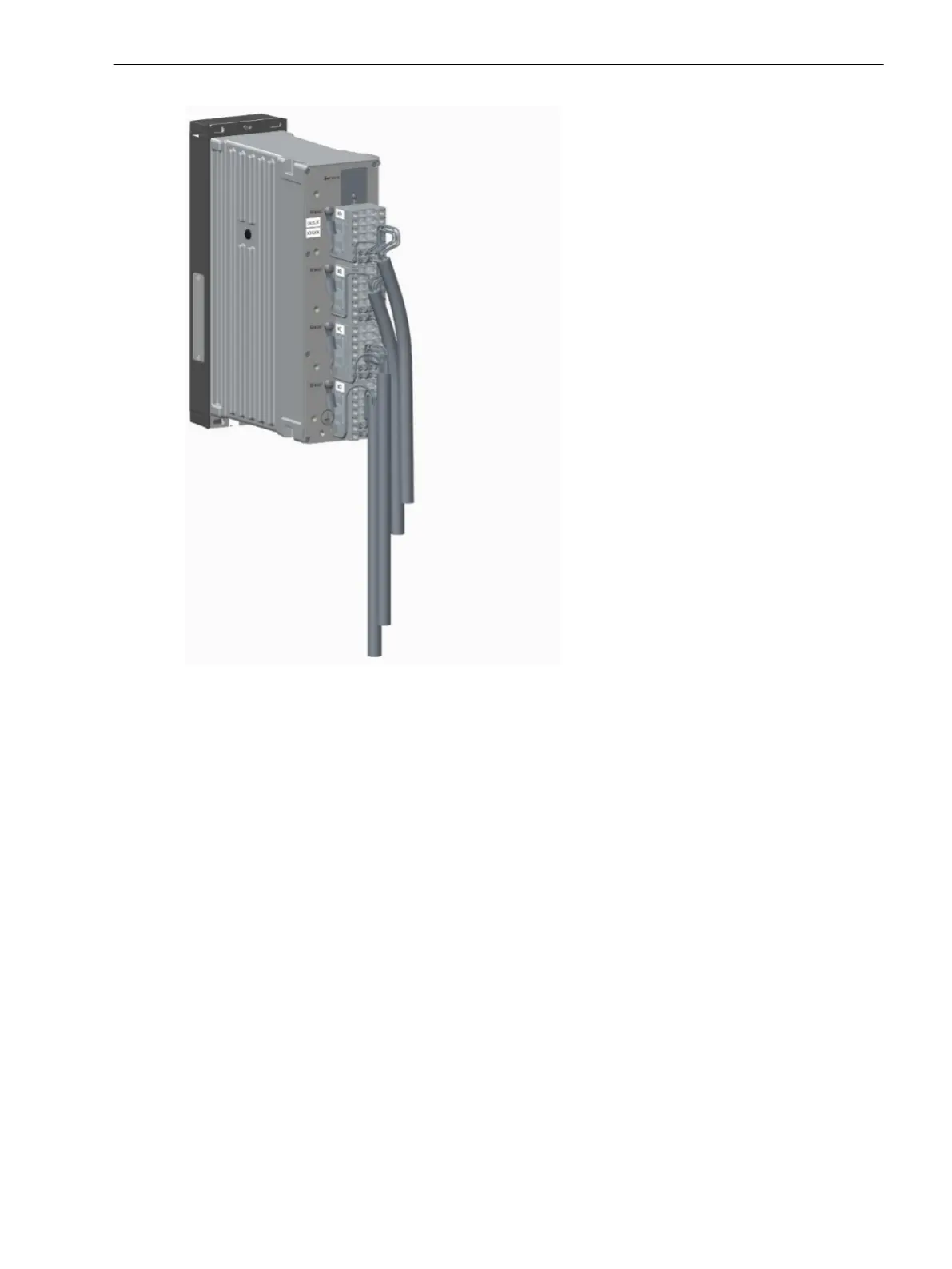

Figure 3-71
Connection to Sensors with Cables
²
Shorten the unused terminals with the current and voltage cross connectors, shown in Figure 5-25
²
Slide the strain relief from the left.
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
