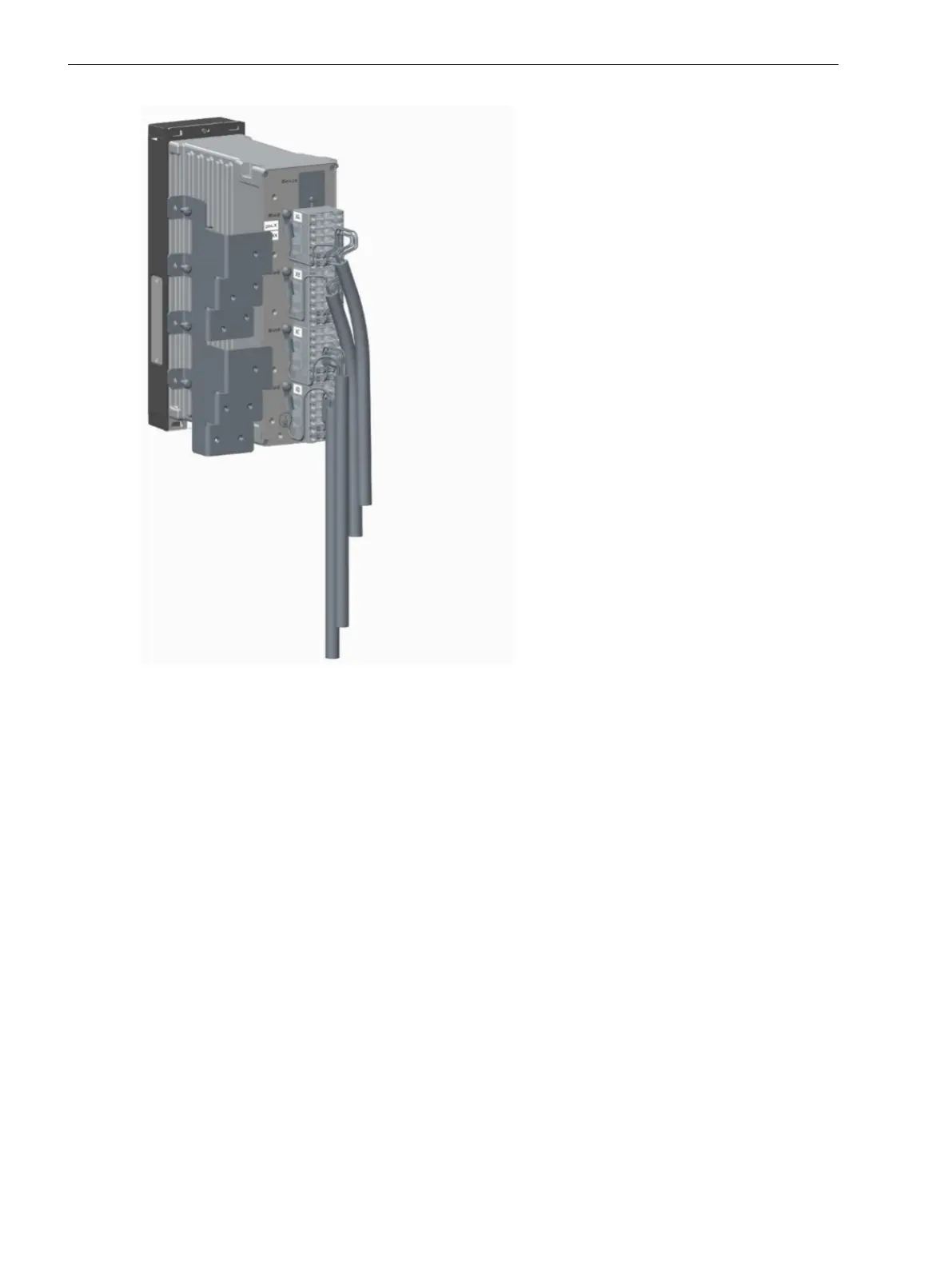

[sc_IO240 connection strain release, 1, en_US]
Figure 3-72
Strain Relief from the Left
²
Place the 4 cables over the fixation surface.
²
Fix the strain relief to the rear plate of the LPIT module IO240 using 4 M4 screws with 1.6-Nm torque.
²
Mount the clamps for fixing the cables to the strain relief plate using 8 M4 screws with 1.6-Nm torque.
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
120 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
