Siemens SIPROTEC 5 Hardware Description

Counting Method for Assemblies in 19-Inch Rack (View of the Rear of the Device)
[dwbgrpos-170713-01.tif, 3, en_US]

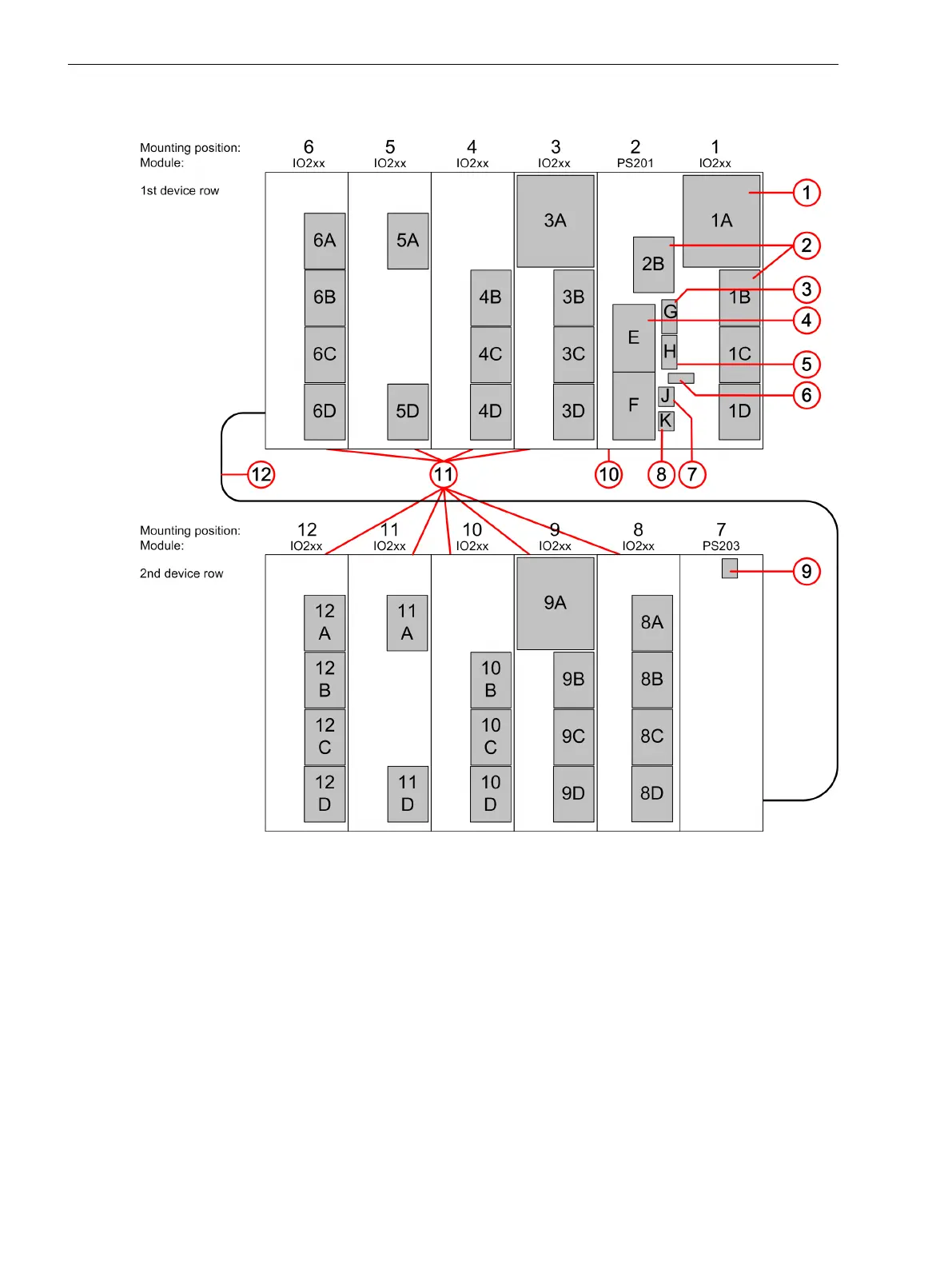

Figure 2-8
Counting Method for Assemblies in 19-Inch Rack (Example)
(1) Current terminal A
(2) Voltage terminal A, B, C, D
(3) Terminal for time synchronization G
(4) Plug-in module E, F
(5) Terminal for detached on-site operation panel H
(6) Battery compartment
(7) Terminal for integrated Ethernet interface J
(8) Terminal for COM link K
(9) 2-pole terminal to connect power supply
(10) Base module 1/3 of 19 in
(11) Expansion module 1/6 of 19 in
(12) Connecting cable between 1st and 2nd device row
Forms of Devices and On-Site Operation Panels
2.1 Flush-Mounting Devices
26 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
