[dwbohrge-1_3.vsd, 3, en_US]

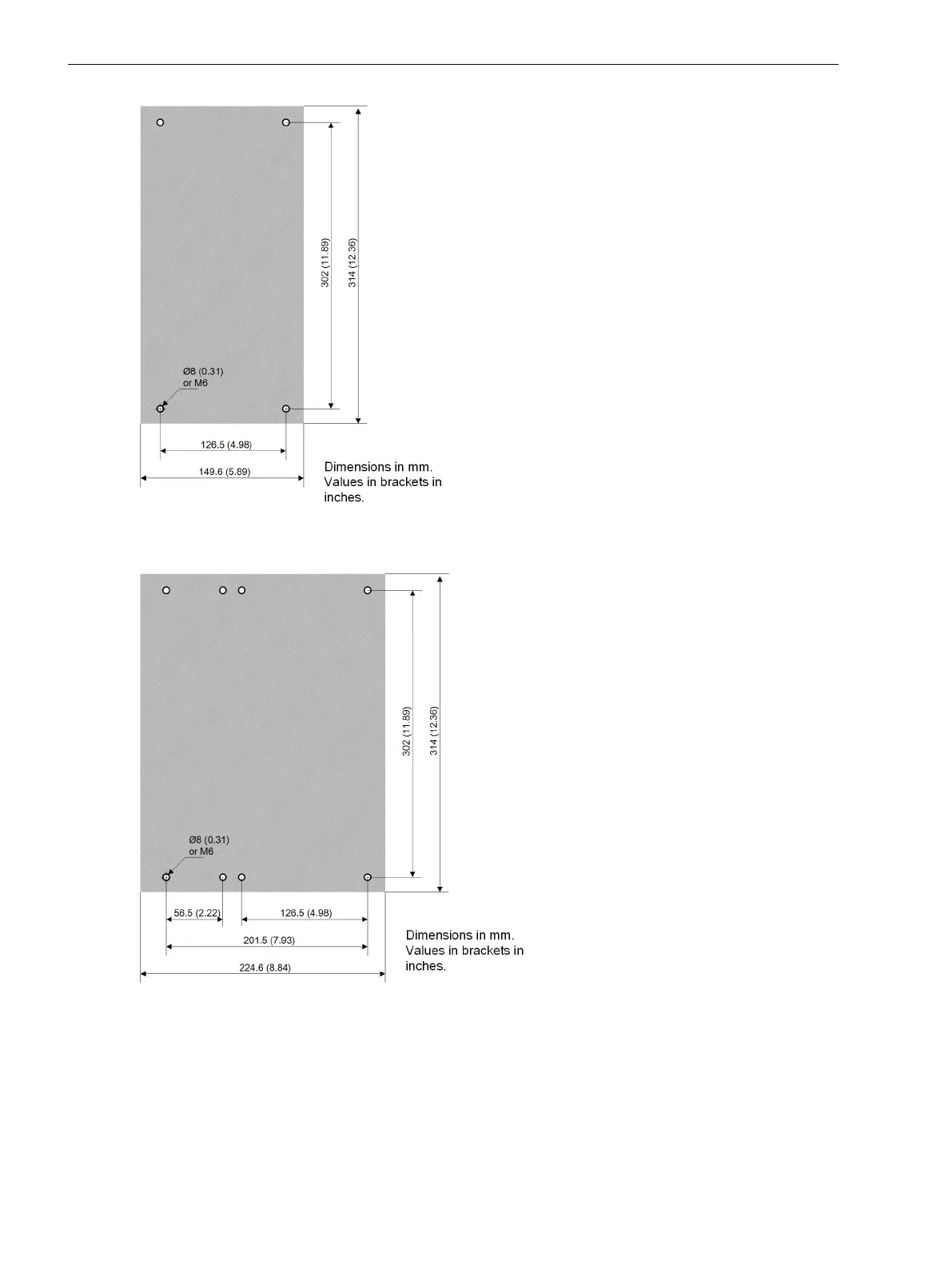

Figure 6-15
Drilling Pattern of a 1/3 Surface-Mounted Device – 1st Device Row
[dwbohrge-1_2.vsd, 3, en_US]
Figure 6-16
Drilling Pattern of a 1/2 Surface-Mounted Device – 1st Device Row
Technical Data
6.14 Assembly Dimensions
266 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-N, Edition 04.2022
