Siemens SIPROTEC 5

[dwbohrge-070211-01.tif, 4, en_US]

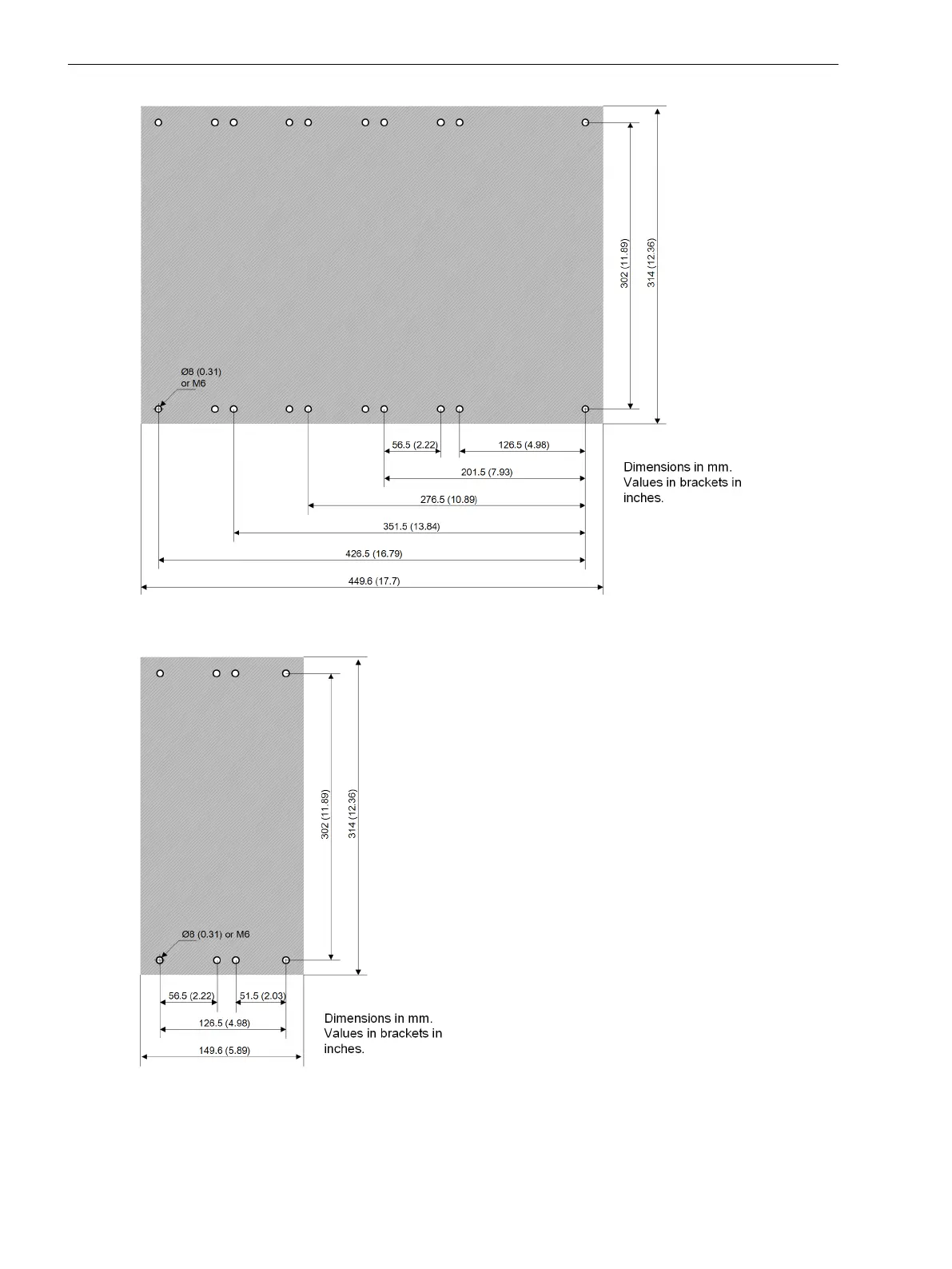

Figure 6-19
Drilling Pattern of a 1/1 Surface-Mounted Device – 1st Device Row
[dw_z2_bohr_1-3.vsd, 3, en_US]
Figure 6-20
Drilling Pattern of a 1/3 Surface-Mounted Device – 2nd Device Row
Technical Data
6.14 Assembly Dimensions
268 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-N, Edition 04.2022
