3 Mounting and Commissioning
274
7SD610 Manual
C53000-G1176-C145-4

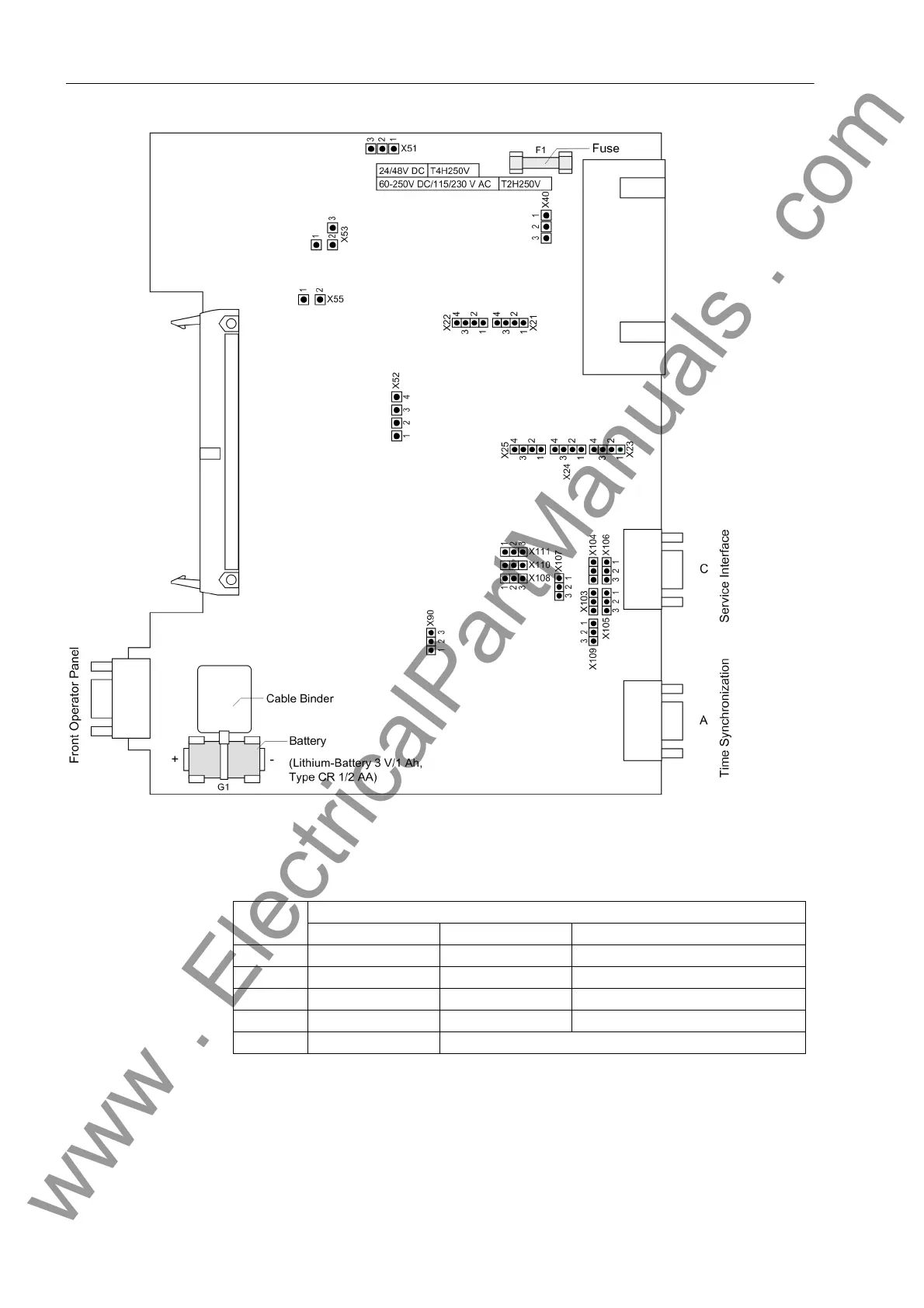

Figure 3-4 Processor printed circuit board C-CPU-2 with jumpers settings required for the board configuration
Table 3-2 Jumper setting of the rated voltage of the integrated Power Supply on the C-
CPU-2 processor board
Jumper Nominal voltage
24 to 48 VDC 60 to 125 VDC 110 to 250 VDC, 115/230 VAC
X51 Not used 1-2 2-3
X52 Not used 1-2 and 3-4 2-3
X53 Not used 1-2 2-3
X55 Not used Not used 1-2
Fuse T4H250V T2H250V
