7 - 4
Siemens AG ⋅ May 1998

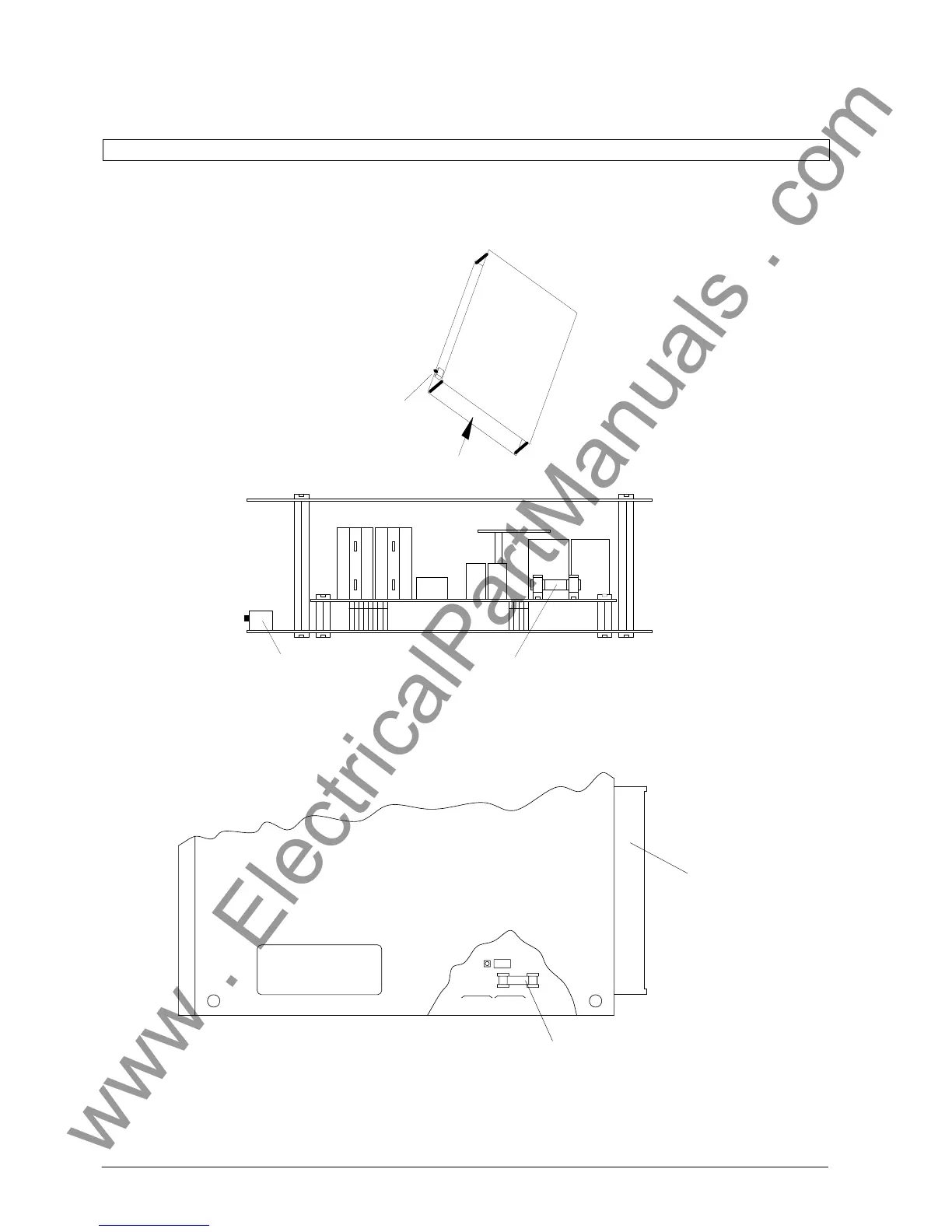

front view
Fuse: version G (5 x 20 mm),
medium slow, 2 A, 250 V
ON/OFF switch
ON/OFF switch
Module
SAF
                
Typ
Nr.
U
E
U
A
The following standard fuses are used as input fuses:
Fuse, version G (5 x 20 mm), slow
SV-Variant 48/60 V: 6MA1890-1AC13: 8 A; 250 V
110/125 V: 6MA1890-1AC14: 4 A; 250 V
220/250 V: 6MA1890-1AC15: 2 A; 250 V
Bottom side
Input fuse
 
Plug connector
                
