Siemens AG ⋅ May 1998
The module ZPS is a component of the master unit. It
can be used as master (ZPS-SBK) or slave (ZPS-BSZ
or ZPS-SK) in the multi-processor system. The hardĆ
ware configuration is unaffected by this selection. For
an unequivocal definition of the task, the respective
module is coded by means of switches.
The codes are listed in table A.9.3 (refer to annex).

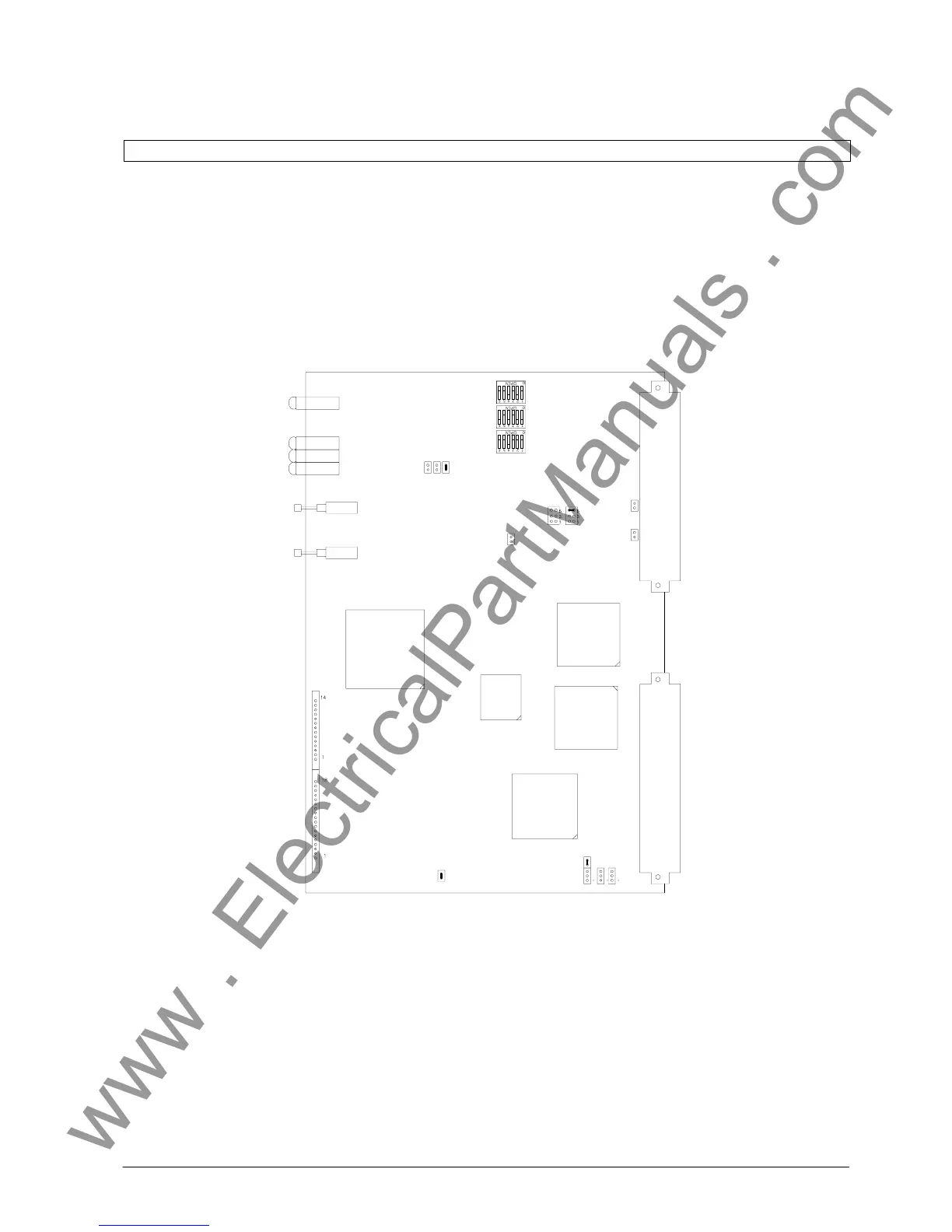

The location of the switches is depicted in Fig 5.5.
X27
X24
X22
X20
D1
D27
D86
D42
D19
X23
X1
X2
X21
X29
X30
X31
X11
X25 X26
X33
X34 X32
S4
S3
S2
S5
S1
H1
H2
H3
H4
It is recommended to verify the switch positions and
jumpers before fitting the module. All settings are
listed in tables A.9.2 and A.9.3 in the annex. The locaĆ
tions of the switches and jumpers are shown in
Fig 5.5.
