5 - 5
Siemens AG ⋅ May 1998
For modifying the jumper selection, the module EFE
has to be withdrawn from the casing of the bay unit
(refer to Fig 2.3 on page 2 - 10).
First the auxiliary voltage has to be disconnected,
then the unit's front plate can be opened. Remove
the front-side plug connector of the module EFE (reĆ
fer to Fig 5.3) and withdraw the module.
8A 7A 6A 5A 4A 3A 2A 1A
X35
X95
X36
X37
X38
X39
X40
X96
X41
X42
X43
X44
X45
X46
X47
X48
X49
X50
X51
X52
X53
X54
X55
X56
X57
X58
X59
X60
X61
X62
X63
X64
X65
X66
X67
X68
X69
X70
X71
X72
X73
X74
X75
X76
X77
X78
X79
X80
X81
X82
X83
X84
X85
X86
X87
X88
X89
X90
X91
X92
X93
X94
X1
X2
Unit bus plug connector
Voltage plug connectors
for external connection
EFE
Id.Nr.: 70873384

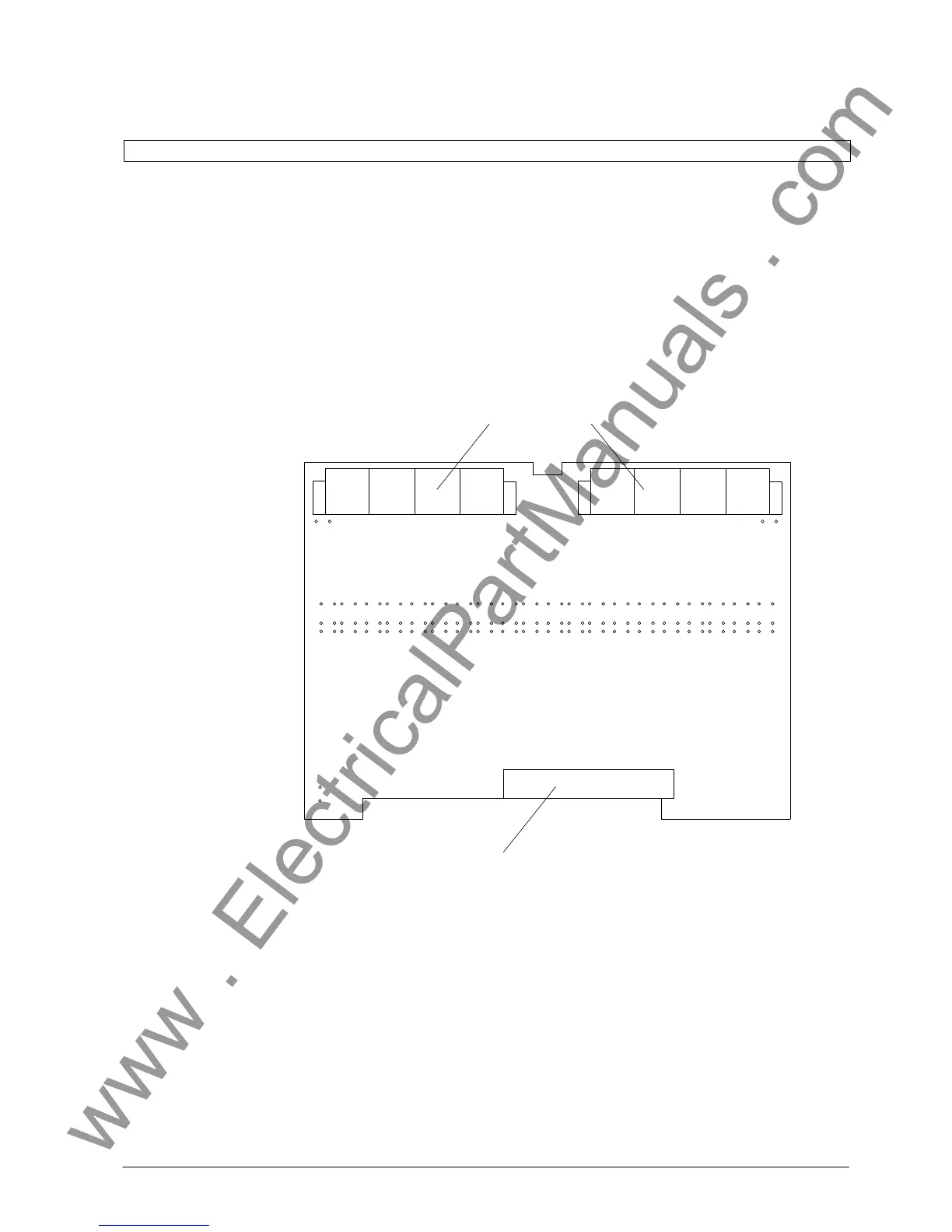

Figure 5.3 Location of the jumpers on the module EFE (bay unit)
