Siemens SIRIUS System Manual

3RT1/3RH1 contactors
SIRIUS System Manual
3-10
GWA 4NEB 430 0999-02b
3.2 Device description
The SIRIUS contactors are components of the SIRIUS modular system and
can therefore offer the typical benefits of SIRIUS when it comes to the
selection of components and the assembly and operation of controllers and
load feeders.
The SIRIUS range of contactors encompasses the following:
• Contactors for switching motors of up to 45 kW/400 V
• Auxiliary contactors with the contact variants 4 NO, 3 NO +1 NC, and 2
NO + 2 NC
• Contactor relays for system-specific cooperation with electronic
controllers
• Contactors for particular applications:
- Contactors with 4 main contacts
- Capacitor switching contactors
- Contactors for switching resistive loads
- Contactors with an extended operating range
- Contactor combinations
Frame sizes
The SIRIUS range of contactors covers everything up to 45 kW in 4 frame
sizes. Each frame size has 3 or 4 standard motor outputs:

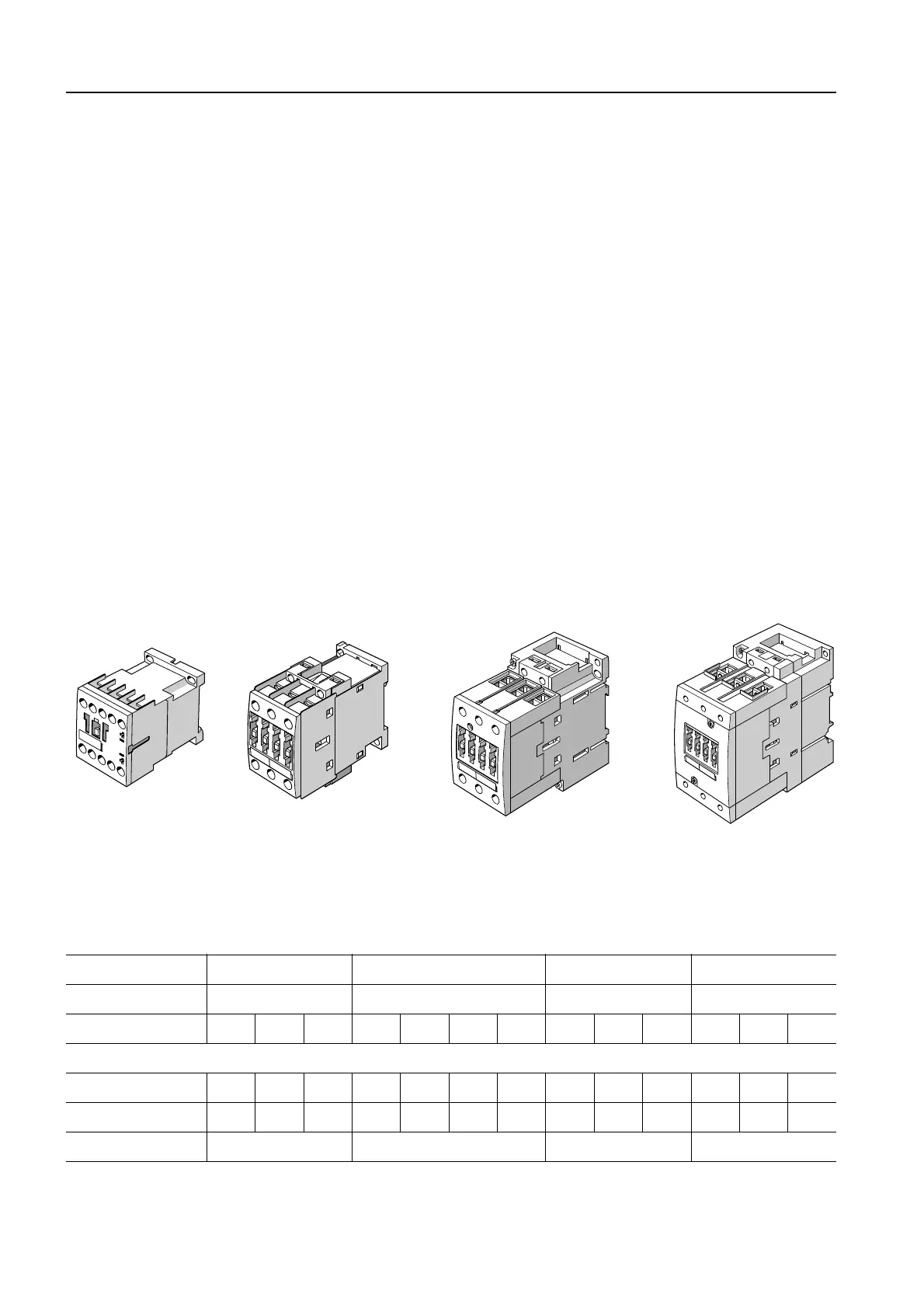

Figure 3-1: Frame sizes of the 3RT1 contactors
Performance ranges
The following table specifies the performance ranges for the frame sizes of
the 3RT10 contactors:
S00
S0
S2
S3
Frame size S00 S0 S2 S3
Order number 3RT10.. 3RT10.. 3RT10.. 3RT10..
15 16 17 23 24 25 26 34 35 36 44 45 46
At 400 V:
P/AC-3kW 3 4 5.5 4 5.5 7.5 11 15 18.5 22 30 37 45
I
e
/AC-3 A 7 9 12 9 12 17 25 32 40 50 65 80 95
Width 45 mm 45 mm 55 mm 70 mm
Table 3-6: Performance ranges of the 3RT10 contactors

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
