Siemens SIRIUS System Manual

3RA1 fuseless load feeders
SIRIUS System Manual
5-16
GWA 4NEB 430 0999-02b
Reversing operation of
frame sizes S00 to S2
The following illustrations show how to assemble the fuseless load feeder:
• Busbar adapter
• Reversing operation
• Frame sizes S00 to S2

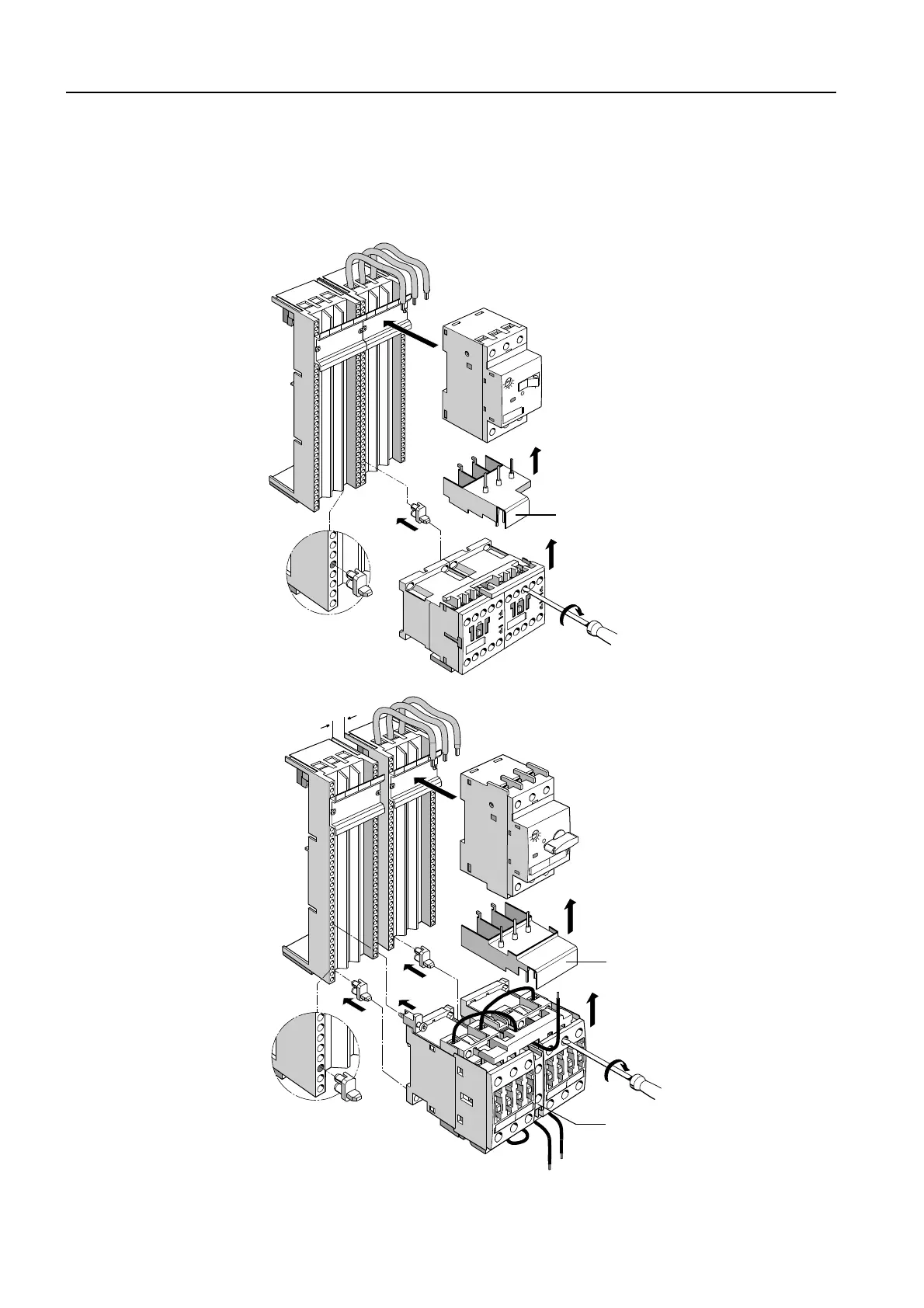

Figure 5-10: Self-assembly, busbars, reversing operation (frame sizes S00 and S0)
S00
1
2
4
3
3
5
3RA1911-1A
S0
1
2
3
5
3
3
4
6
3RA1921-1.
3RA1924-2B
5
5
Kit 3RA1913-1.
Kit 3RA1923-1.

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
