Siemens SIRIUS System Manual

3RV1 circuit breakers
SIRIUS System Manual
GWA 4NEB 430 0999-02b
2-25

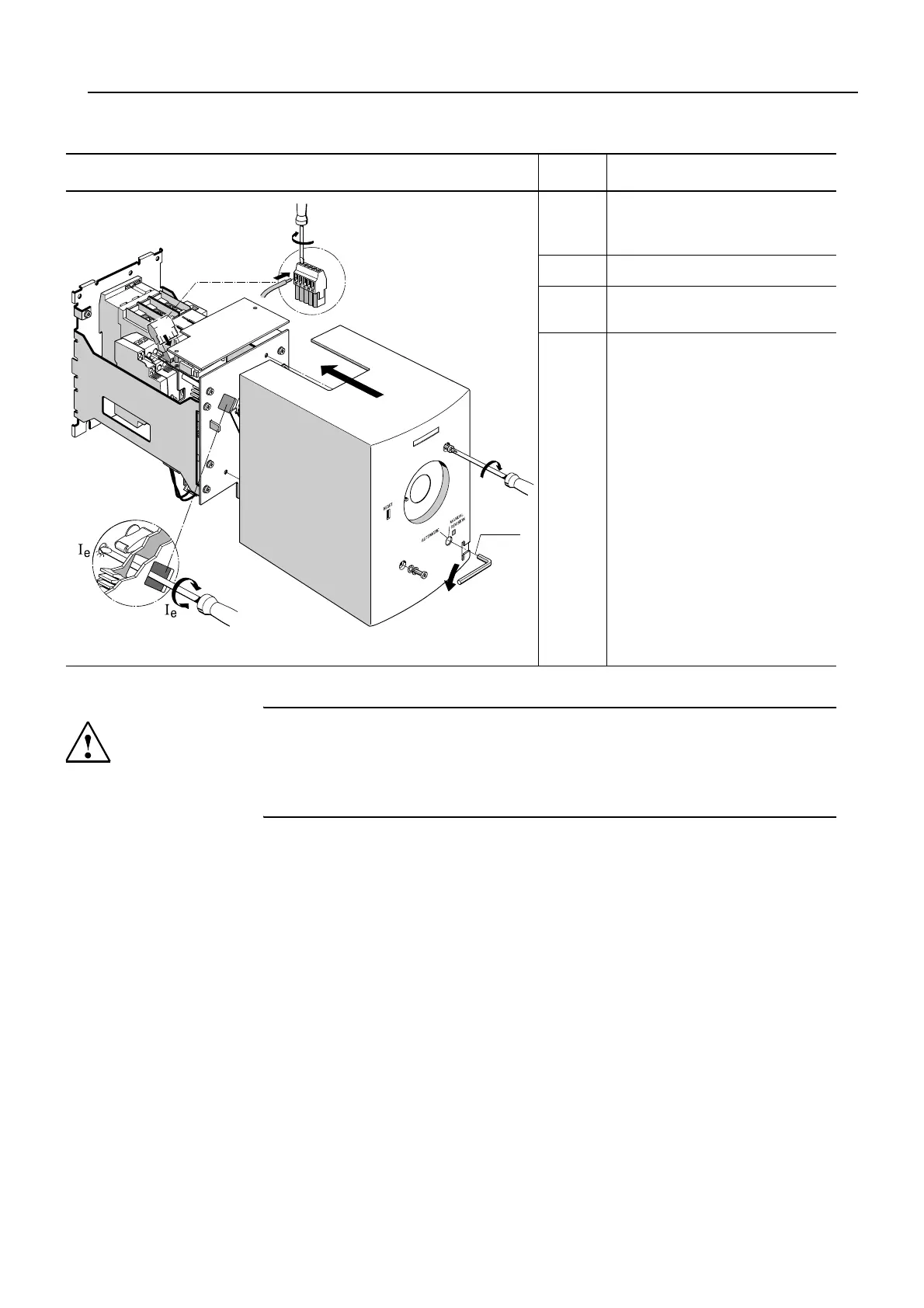

Table 2-9: Mounting the remote-control mechanism (frame size S2)
Warning
Do
not
set the "Automatic" position or operate the remote-control mecha-
nism when open! There is a risk of injury!
If used as an emergency stop, it is not permissible to switch on manually.
Manual RESET
Remove the screw from the RESET lever (step
12
)
16-18
Screw the control wires for the
remote-control mechanism onto
the connector, and insert it.
19
Set the current.
20, 21
Put the cover on, and screw it
tightly.
22
Use the Allen key to switch to
AUTOMATIC and replace the Allen
key in the cover.
Drawing Step Procedure
16
17
21
21
22
(22)
20
18
19
U
C
