3RA1 fuseless load feeders
SIRIUS System Manual
5-20
GWA 4NEB 430 0999-02b
Busbar mounting
The following illustrations show busbar mounting and
removal of the fuseless load feeders S00 to S2.

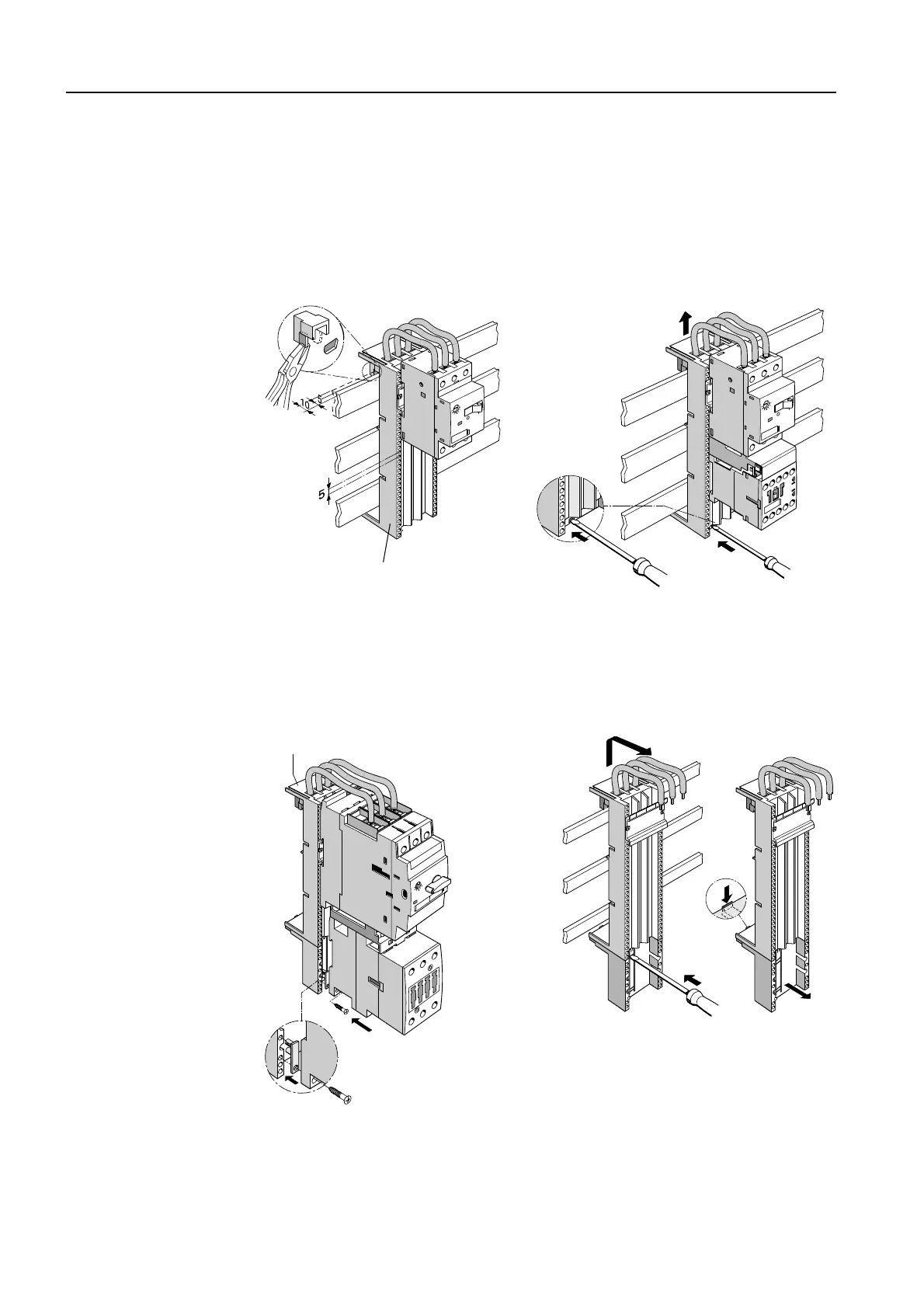

Figure 5-13: Busbar system, mounting/removal (frame sizes S00 to S2)
10 mm
1
2
1
2
8US1.61-5FP08
S00 (S0): Mounting
S2: Mounting
Removal of the extension piece
S00 (S0): Removal
8US1.51-5DM07
