Siemens SIRIUS System Manual

3RP10, 3RP15 solid-state time relays
SIRIUS System Manual
GWA 4NEB 430 0999-02b
7-25

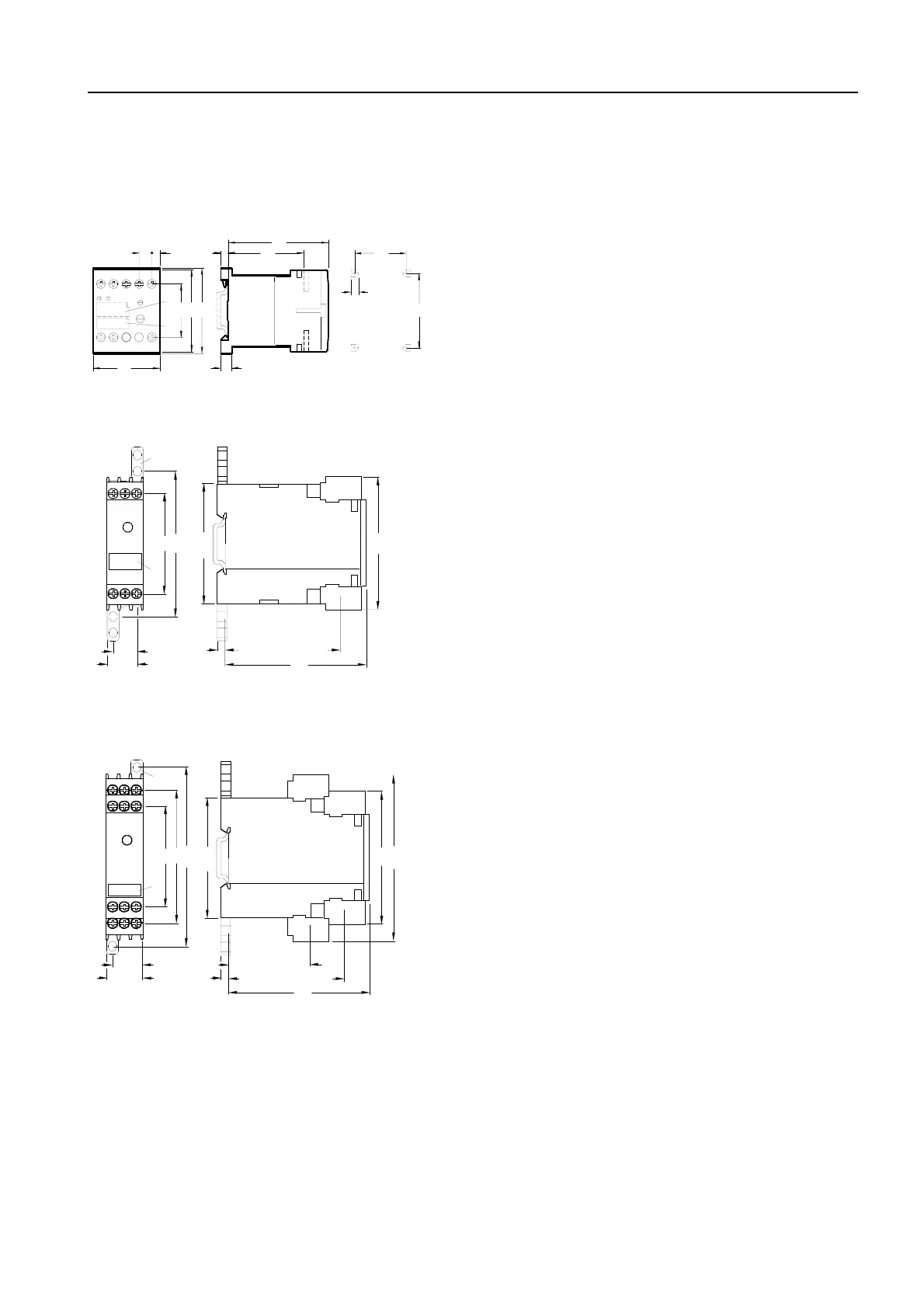

7.6 Dimensioned drawings
(dimensions in mm)
3RP1 time relay
3RP10
3RP15, 1 changeover contact without auxiliary supply
5)
, clock pulse generator, star-delta function
3RP15 1 and 2 changeover contact devices with auxiliary supply
1) Push-in lug for screw-type attachment
3) Coding plug (with 3RP10) or identification label
4) Drilling pattern
5) Except 3RP15 05-1A.30 two-wire design
6) Identification label
8.6
5.3
36 55 58
551
67
2)
45
7.5
NSB00978
35
5
3)
50
4)
62 90
15
22.5
80
73.5
86
5
NSB00980
4)
1)
approx. 65 (terminals)
80
73.5
5
NSB00981
62
110
15
22.5
4)
1)
82
approx. 37
(terminals)
approx. 65 (terminals)

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
