Siemens SIRIUS System Manual

3RU11, 3RB10, and 3RB12 overload relays
SIRIUS System Manual
4-36
GWA 4NEB 430 0999-02b

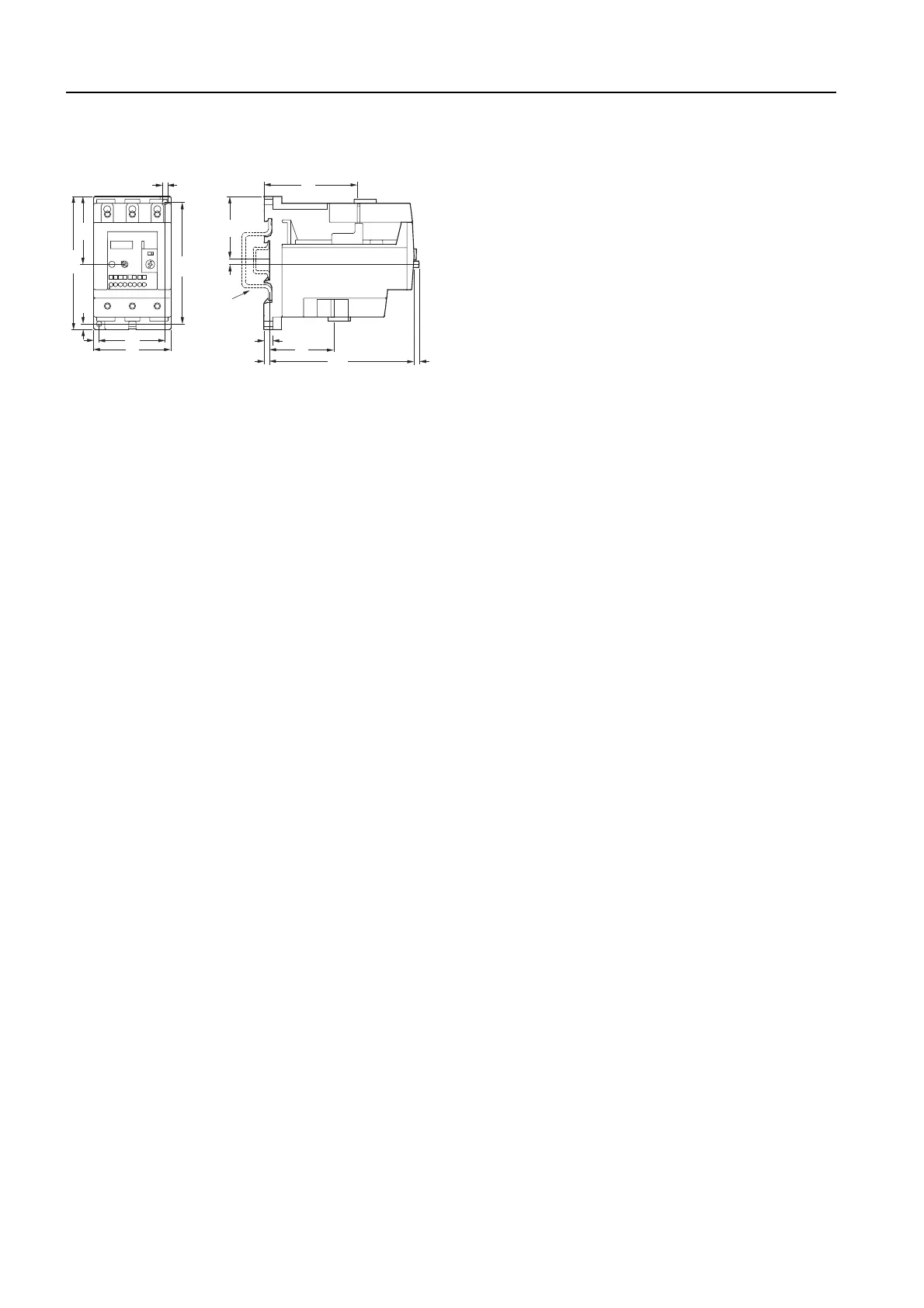

Figure 4-36: 3RU11 46-..D0 (frame size S3)
1) Mechanical reset
2) Wire release (400 mm or 600 mm long, mounted on front or side on bracket)
3) Bracket
4) Remote reset
The clearance from grounded parts at the side must be at least 6 mm.
5) Attached to rail (35 mm, 15 mm depth to DIN EN 50 022 or 75 mm to DIN EN 50 023).
5
120
62
5
60
70
110
5
5
5
57
130
59
5
79
7
HA
RESETSTOP
TEST
0
1
SIEMENS
NSK-8267
5)
