Auxiliary contacts S00
The following graphic shows you the auxiliary contacts that can be used to
expand the contactors of frame size S00 (terminal marking in acc. with
EN 50 012 or EN 50 005):

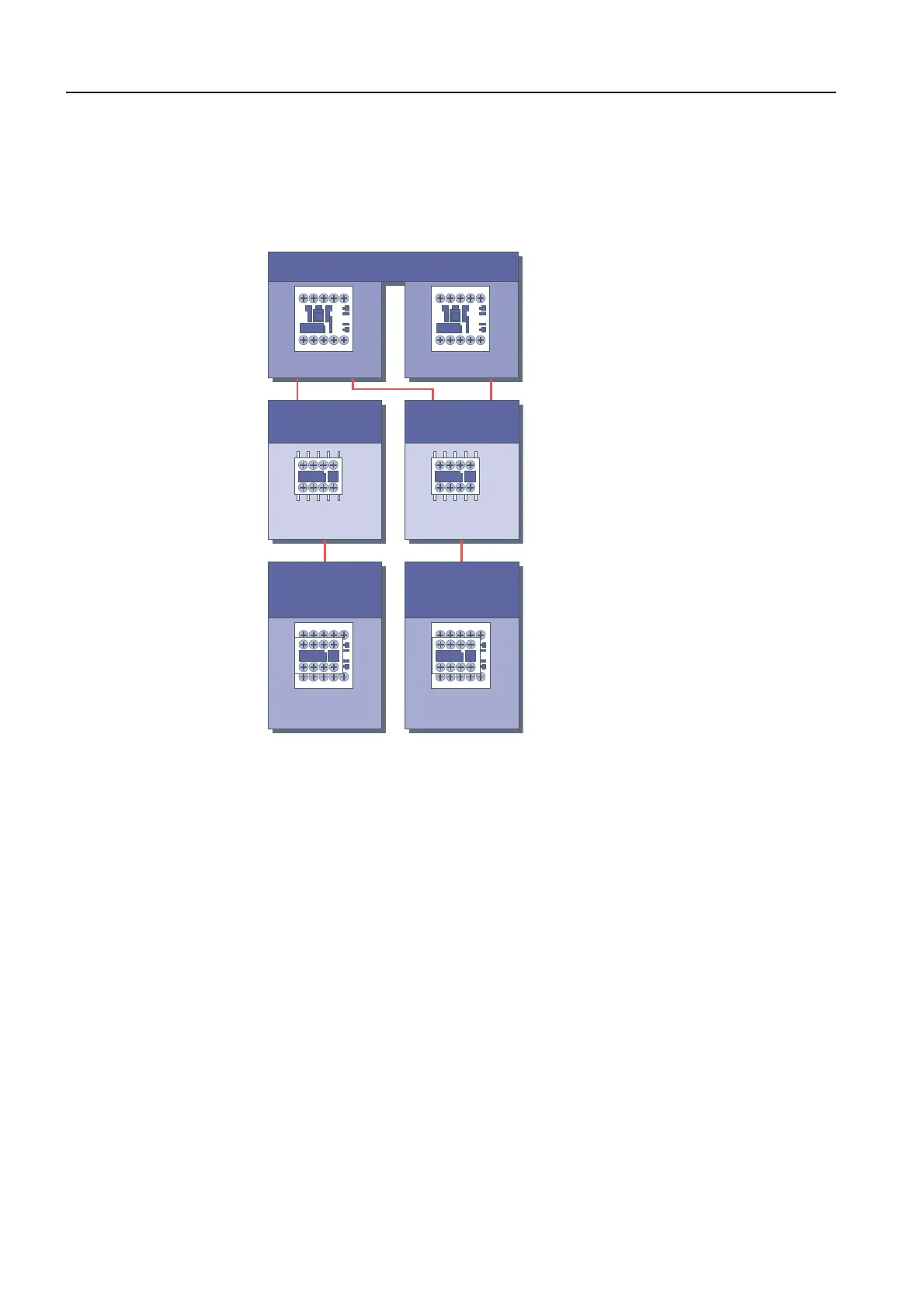

Figure 3-34: Auxiliary contacts, contactors for switching motors (frame size S00)
Expanding the contac-
tors of frame sizes S0 to
S3
With contactors of frame sizes S0 to S3, you can also attach 1-pole auxiliary
switch blocks instead of 4-pole auxiliary switch blocks.
The terminal markings of the 1-pole auxiliary switch blocks consist of
sequence numbers (location ID) on the basic unit and function numbers on
the auxiliary switch blocks.
Hilfsschütze
DIN EN50 005,
8 oder 6 Kontakte
contactors, DIN EN 50 012,
1 auxiliary contact
identification no. 01
identification no. 10E
identification no.
32E, 23E, 22E, 11E
auxiliary switch
blocks,
4, 3 or 1 contact(s)
identification no. 40,
31, 22, 20, 11, 02
auxiliary switch
blocks,
4 or 2 contacts
identification no. 32E,
23E, 22E, 11E
contactors,
DIN EN 50 012
5, 4 or 2
auxiliary contacts
identification no. 40,
31, 22, 20, 11, 02
contactors,
DIN EN 50 005,
5 or 3
auxiliary contacts
NSB00450

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
