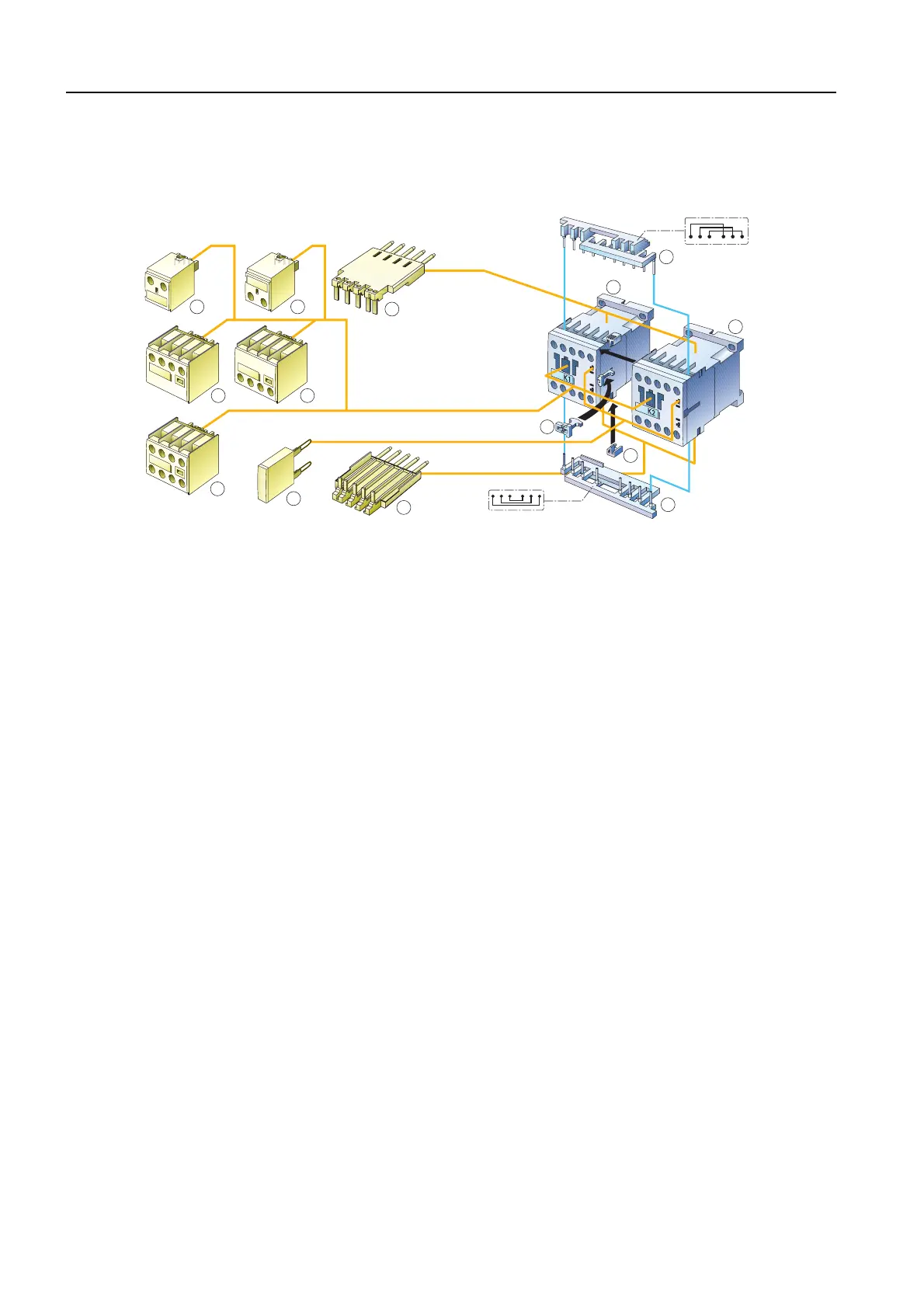

Contactor combination for reversing the S00 frame size (with accessories):
Figure 1-7: Contactor combination for reversing
Individual parts:
1/2) Contactors
4/5/6)Kit
The kit includes:
4) Mechanical interlock
5) 2 connection clips for 2 contactors
6) Wiring blocks above and below to connect the main conducting paths with electrical interlock
(NC contact interlock - can be removed if required)
Attachable accessories:
13) Soldering pin adapter
14) Auxiliary switch block, on the front (only an auxiliary switch blocks that complies with
DIN EN 50 005 can be used)
16) Surge suppressor
2
6
1
6
4
5
NSB00459
13
1414
1414
14
16
13

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
