5.2.1 Mounting systems
The possible types of mounting are as follows:
• On a 35 mm rail in acc. with DIN EN 50 022
• Screw-on attachment by means of the attachment openings integrated in
the rail adapter
• On busbar systems with a busbar center-to-center clearance of 40 mm or
60 mm
The following illustrations show the adapters for rail and busbar mounting:
Rail adapter Busbar adapter

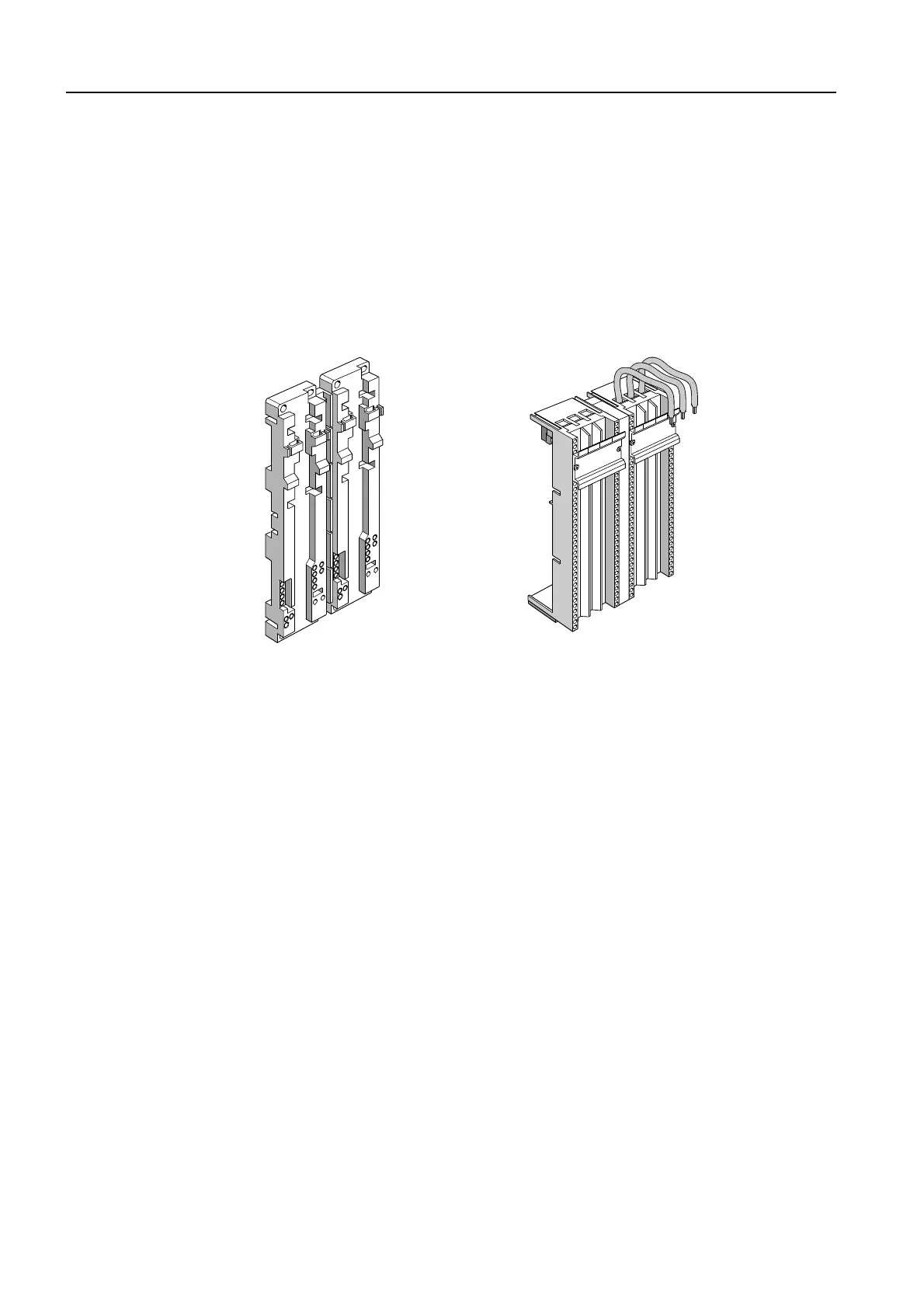

Figure 5-1: Rail adapter/busbar adapter
