2 3RV1 circuit breaker
2.5 Mounting and connection
2.5.1 Mounting
Mounting position
You can install the 3RV1 circuit breakers anywhere.
Snap-on mounting
The circuit breakers are mounted by snapping them onto 35 mm rails that
comply with DIN EN 50 022. The circuit breakers with a frame size of S3
require a rail with an installation height of 15 mm. Alternatively, they can also
be snapped onto 75 mm rails.

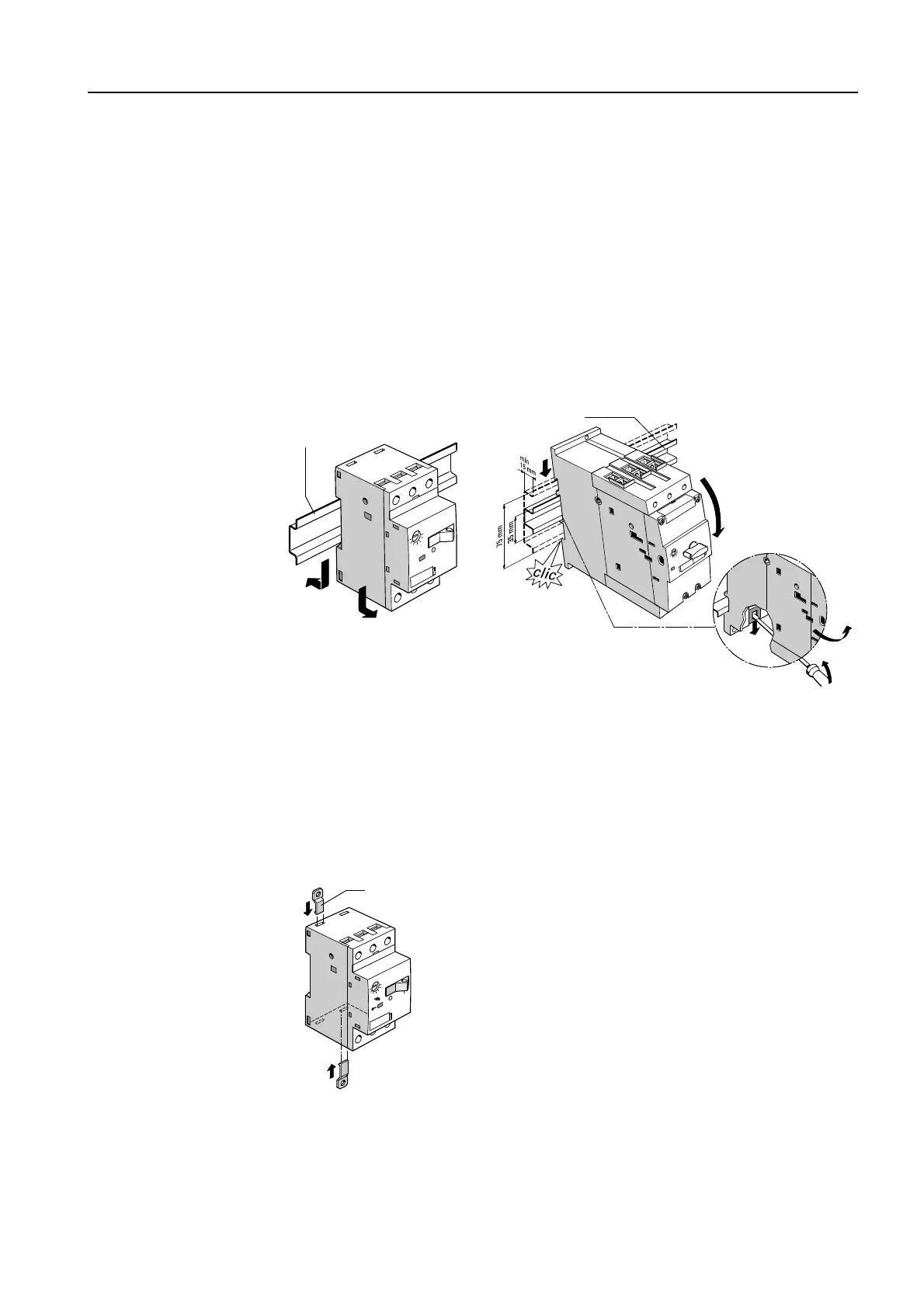

Figure 2-31: Mounting the circuit breakers onto the rail
Screw-on mounting
The circuit breakers are attached to a flat surface with 2 screws. For circuit
breakers in frame sizes S00 and S0, two push-in lugs (3RB1900-0B) (pack of
10) are also required.
Circuit breakers in frame sizes S2 and S3 can be screwed directly onto a
base plate.
Figure 2-32: Screw-on mounting of the 3RV1 (example: frame size S00)
DIN EN 5022
S3S00
RV-00298
1
2
1
1
2
DIN EN 5022
3RB1900-0B

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
