2.4.5 Rotary switch extension for door
Rotary switch extensions for doors are available for frame sizes S0, S2, and
S3. They consist of a lockable rotary switch with a detachable door coupling,
a 150 mm long extension shaft, and a connector for the switch drive. The
door handle complies with IP 65.
Installation

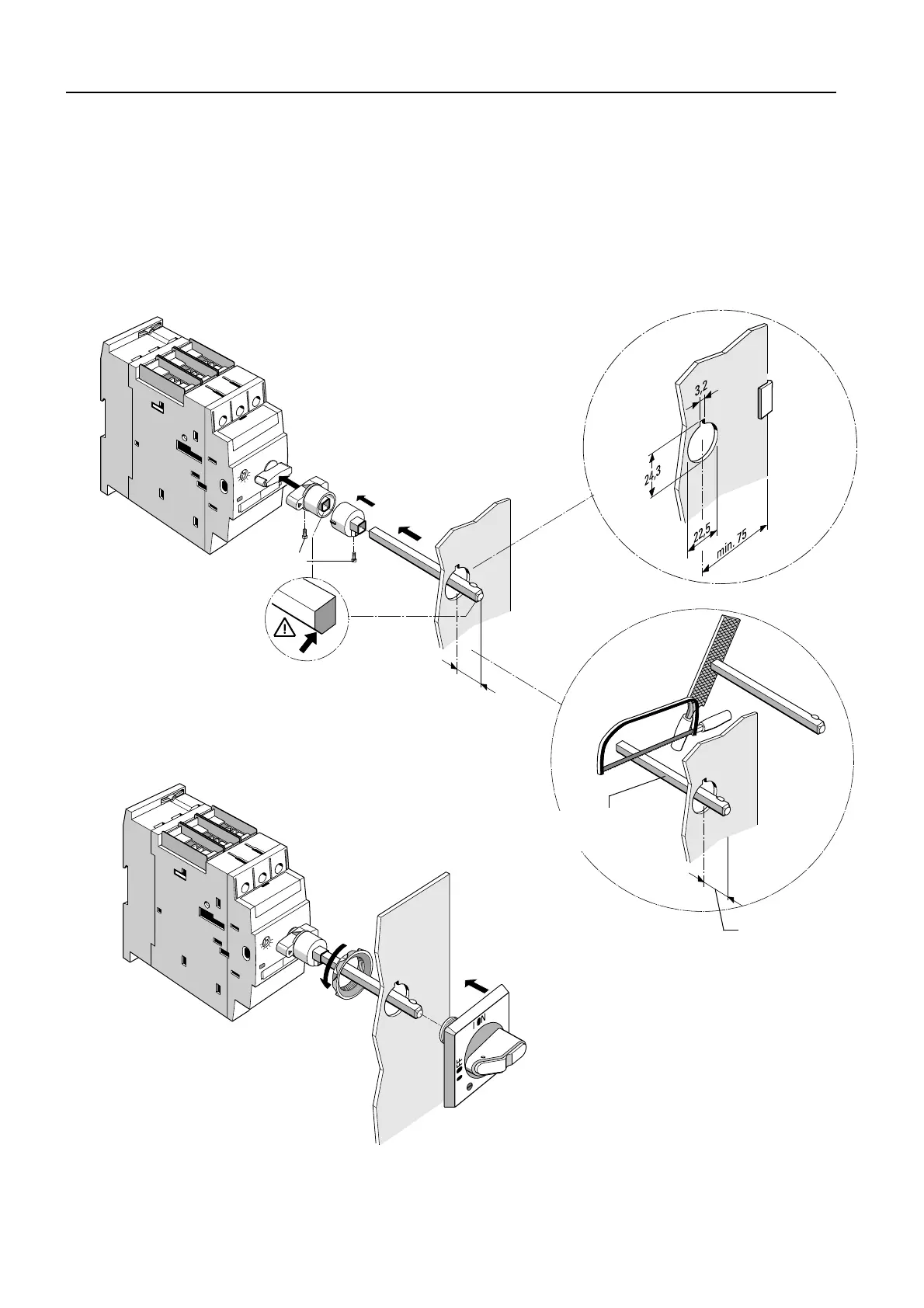

Figure 2-15: Mounting the rotary switch extension for the door (frame size S2)
6
7
Min. 16 mm
Max. 20 mm
3
1
2
4
5
3RV1926-0B, -0C, -0M: 130 mm
3RV1926-0K, -0L: 330 mm
0.7 to 0.9 Nm
